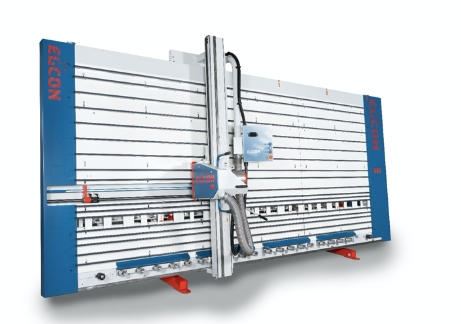

Elcon Model 185 DS Vertical Panel Saw
Standard Accessories
Heavy duty horizontal carrying modules
Robust, fine-adjustable measuring stop
Mechanical locking of the saw-head for horizontal cuts
Repeat-stop for easy and simple strip cutting
Programming rail for repetitive horizontal dimensions
Mid-fence in 3 segments for 3 meter support
Entry and exit roller to load / unload the panels
Double cut scoring with the main blade for scoring and grooving
Mechanical plunge of the saw-head
Fixed bottom blocks for stable panel support
Fault diagnostics
Technical data:
Max. cutting length 4.300mm.
Max. cutting height horizontal 1.810 mm.
Max. cutting height vertical 1.850mm.
Max. cutting depth 55 mm.
Motor (400/50/III+0 S6) 3 kW
Saw-blade diameter 250 mm.
Speed of saw-blade 5.100 rpm.
Necessary air pressure 6-8 bar
Included Recommended Options:
Motor 4 kW (400/50/III+0 S6)
Automatic pneumatic lifting backframe
Aluminum bottom rollers with pneumatic clamp
Measuring Stop Extension
Extra Dust Extraction at right side of frame
Additional Options (price not included):
Motor 4 kW (400/50/III+0 S6)
2-speed motor
Variable rotation speed motor
Pneumatic mid-fence
Pneumatic lifting transport rollers
Pneumatic panel clamp
Extra pneumatic panel clamp
Extension to measuring stop
Extra support for small pieces
Cutting length 4.300 mm (type 155/185)
Cutting length 5.300 mm (type 215)
Extra -1 meter point
Digital read out for horizontal cuts
Digital read out for vertical cuts
Positioning module for vertical cuts
Panel tilting ruler for small panels
V-grooving set 90°
Lubrication for non-ferro materials
