NEW CEHISA PRO

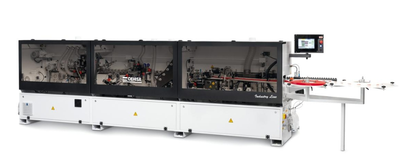

Cehisa Model Pro 12 Edgebander
Technical Specifications:
EDGEBANDING MATERIAL
Melamine/PVC/ABS/PP/veneer: .4-3mm
Solid wood strips: up to 8mm
Max. Edge banding height: 65mm
PANEL
Thickness, min-max: 10-60mm
Length, min-max: 120-unlimited mm
Width min-max: 60mm-unlimitedmm
MACHINE
Working speed: 9/14 m/min
Total electrical output, kW: 12.9
Machine Description
Feeding Station
Pre-Milling PF-12
Duomelt Gluepot
Pressure Rollers
End Trimming V-8
Top and bottom trim unit BC-S
Corner Rounding FD-60
Radius Scraper RB-8
Glue Scrappers RR-8
Buffing Unit PC-S
