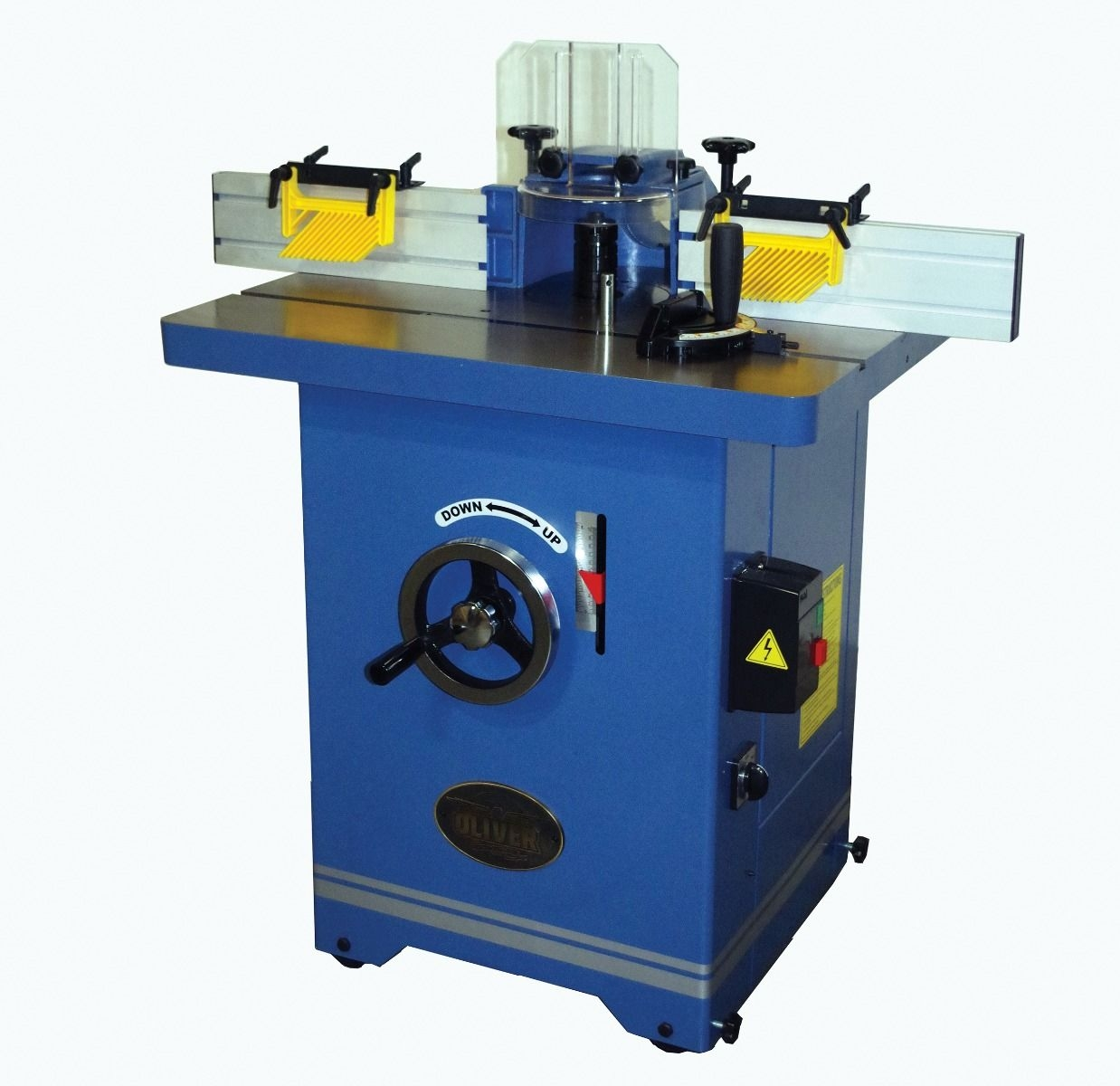

Oliver 10047.002 Shaper 5HP 1Ph

Oliver Model 10047.002 Shaper 5HP 1Ph
Large cast iron table is precision ground table to provide a solid work surface.
Table features pre-drilled and threaded holes for optional power feeder.
Full cabinet stand includes wheels and locks.
1-1/4" interchangeable spindle included, other optional sizes available.
Optional router bit collets available.
Four spindle speeds for versatility

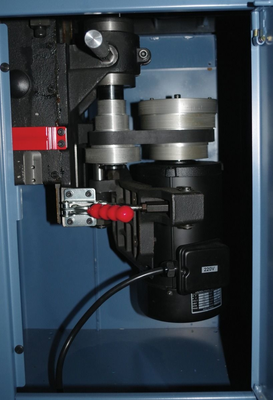

Belt changes are quick and convenient with unique tensioner.
Poly V-belt drive for smoother operation.
Spindle reverses for more options with each set-up.
Four inches of spindle travel allows more set-up options.
Starting pin for irregular shapes included.

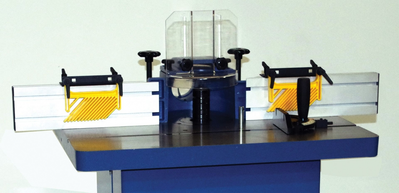

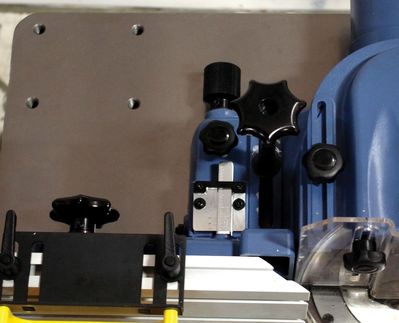

Fence is independent and includes micro adjustments.
Adjustable hold downs add to a safer operation.
Extra large handwheel for easy and quick height adjustment.
Miter gauge included.
Magnetic controls for added safety.
Spindle Speeds 4,000, 6,000, 8,000, 10,000 RPM
Spindle Diameter: 1-1/4"
Verticle Spindle Travel: 4"
Spindle Direction: Reversible
Under Nut Capacity: 4" with 1-1/4" Spindle
Table Opening: 6-1/4"
Large Insert Opening: 4-5/16"
Small Insert Opening: 2-1/2"
Table Height 34-3/8"
Table Size 32" x 26"
T-Slot: 3/4" x 3/8"
Fence Size (2): 4-13/16" x 16"
Dust Port Diameter 4"
Minimum CFM: 800
Table Dimensions 40" x 27"
