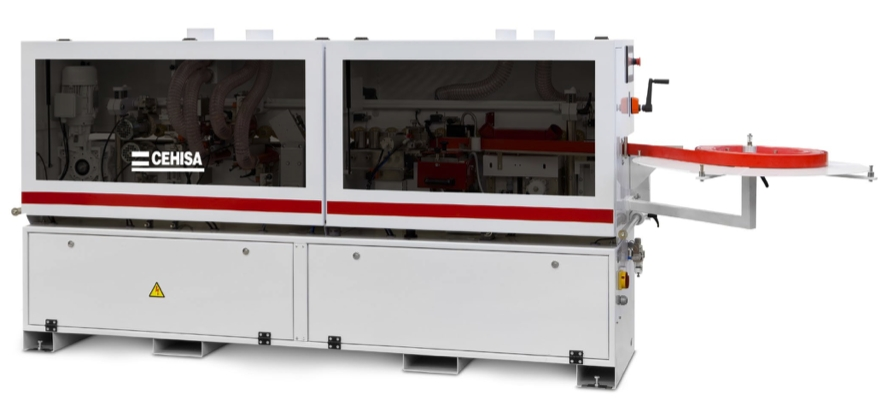

NEW CEHISA COMPACT

Cehisa Model Compact PS with Duomelt Gluepot
General Specifications:
CEHISA edgebanders are universally known for their robustness, ease of use and adjustment
Pre-Milling Station PF-2
Duomelt Gluepot- Allowing the use of both EVA and PUR
TEFLON-Coated Glue Unit w/ Electronic Thermostat Control
Two-Roll Pressure Section
End-Trimming Station V-3
Glue Scraper RR-8
Buffing Unit PC-3
Polymer Coated Feed Chain
Pressure-Beam with Rubber Wheels
7" User-Interface
Working Speed: 10 mts/min. (18ft/.min.)
Thickness of Edgebanding: 0.4 - 3mm
Solid Wood Strips Up to 5mm
Thickness of the Panel 8 - 60 mm (0.32"-2.36")
Min. Length of Panel: 120mm (4.72")
Min. Width of Panel: 75 mm (2.95")
