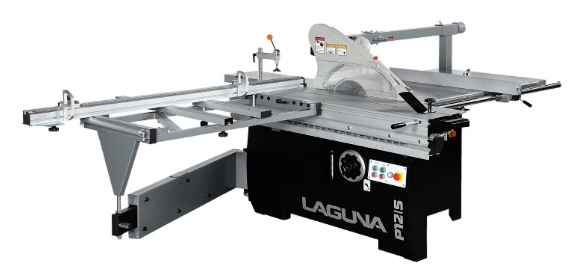

Specifications
Motor: 5HP Main
Motor: 3/4 HP Scoring
Blade Capacity: 12 , 14 /300mm, 355mm
Max. Blade: 14 /355mm (minimum height when lowered: 1 /25mm)
Max Scoring Blade: 4 3/4 /120mm
Scoring Adjustment: T-Handle through Cast Top
Arbor: 30mm Main, 20mm Scoring
Max Cutting Height 90° 14 /355mm Blade: 4 1/2 /115mm
Max Cutting Height 90° 12 /305mm Blade:3 1/2 /90mm
Max Cutting Height 45° 14 /355mm Blade: 2 3/4 /70mm
Max Cutting Height 45° 12 /305mm Blade: 2 3/8 /62mm
Main Blade Speed: 4000 RPM
Scoring Blade Speed: 8000 RPM
Dust Collection Port Saw: 4 /100mm
Dust Collection Port Guard: 2 1/2 / 63mm
Sliding Table: 63 /1600mm
Sliding Table Width: 14.88 /378mm
Main Cast Table: 21 1/2 x 35 1/4
Rip Fence: 51 /1300mm
Rip Fence Micro Adjust: Included
Rip Fence Bar: 1 5/8 /40mm Solid Steel Micro Polished
Push Handle: Included
Rip Shoe: Included
Hold Down Clamp: Included
32 x 12 Steel Extension Table: Included
Crosscut Fence 2 x Flip-Stops
Crosscut Fence Readout: Inch/Metric
Crosscut Fence Max. Collapsed: 77
Crosscut Fence Max. Extended: 140
Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
