NEW LAGUNA FUSION

Laguna Model Fusion F3 Tablesaw
The new Laguna Fusion line was developed for demanding woodworkers.
Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with precision fence, plus the F2 & F3 feature
the Hi/Low aluminum extrusion known from European saws.
Permanently lubricated bearings & Acme screws are
part of the internal DNA.

Fusion 3 is the big brother to Fusion 2.

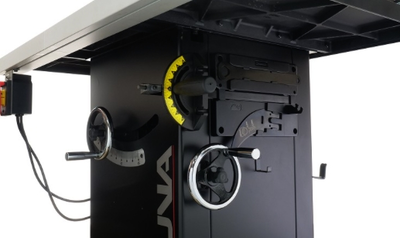

- cast iron trunnion

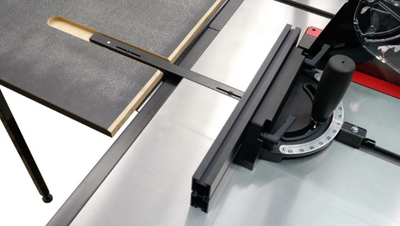

- upgraded handles & Miter Gauge
- outfield table equipped with double miter slots
- built with an extra heavy-duty cabinet, 36" still fence
On board storage of all accessories.

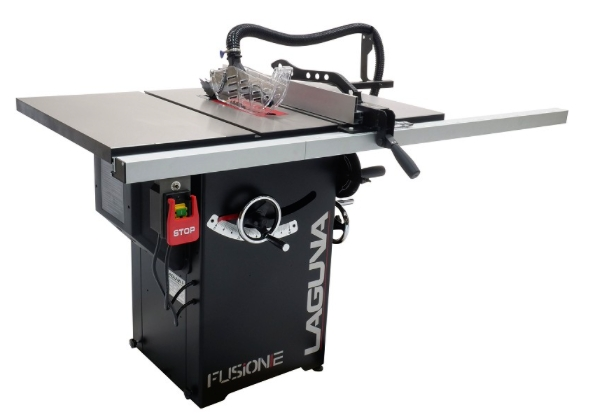

The Fusion F3 features professional cabinet saws built with no compromises.
Machine Specifications
Power Requirements: 220V-1PH-60HZ
Amperage (FLA): 14 AMP
Motor Power: 3 HP
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Plug Included: 6-15
Circuit Breaker Req.: 220V - 25 AMP
Receptacle Req. : 6-15
Rip Capacity: 36" STD, 52" OPTION
Blade Size: 10"
Vertical Cut Height: 3 1/8"
45° Cut Height: 2 1/8"
Tilt: 0-45° Left
Min. Kerf: 3mm ~1/8" (actual: 0.1875")
Max. Kerf (Dado Blade): 13/16"
Arbor Speed: 4500 RPM
Arbor Diameter: 5/8"
Mitre Slot: 3/4" to 1" T
Throat Plate: Zero Clearance Square Composite, w/ adjustment
Fence: Double Rail Cam Action
