NEW LAGUNA FUSION

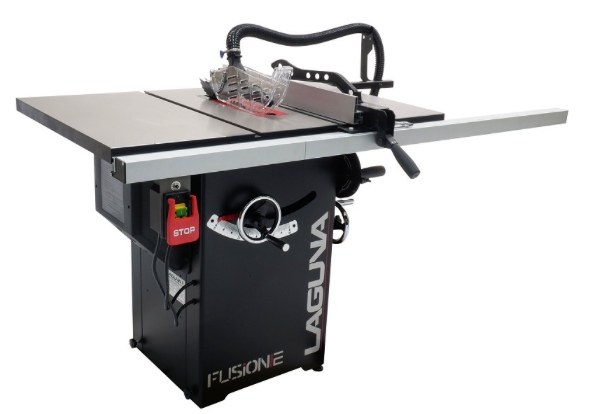

Laguna Model Fusion F2 Tablesaw
The new Laguna Fusion line was developed for demanding woodworkers.
Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with a precision fence, plus the F2 & F3 feature
the Hi/Low aluminum extrusion known from European saws.
The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position.
Permanently lubricated bearings & Acme screws are
part of the internal DNA.
Fusion 2 is the true successor to the original Fusion Table Saw.
The task was simple: make a saw that was more refined, more precise, and cleaner.
- robust and versile fence

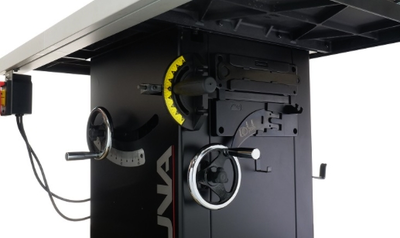

- cabinet mounted trunnion
- mechanically assisted blade movements
- hybrid cabinet saw with trunnion that rides on two solid steel 1" posts
Machine Specifications
Power Requirements: 110V-1PH-60HZ*
Amperage (FLA) :14 AMP
Motor Power: 1.75 HP
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Plug Included: 5-15
Circuit Breaker Req.: 110V - 25 AMP
Receptacle Req. : 5-15
Blade Size: 10"
Vertical Cut Height: 3 1/8"
45° Cut Height: 2 1/8"
Tilt: 0-45° Left
Min. Kerf: 3mm ~1/8" (actual: 0.1875")
Max. Kerf (Dado Blade): 13/16"
Arbor Speed: 4500 RPM
Arbor Diameter: 5/8"
Mitre Slot: 3/4" to 1" T

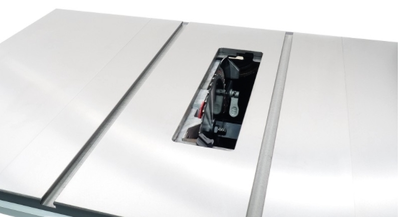

Throat Plate: Zero Clearance Square Composite, w/ adjustment
Fence: Double Rail Cam Action
