USED FBF Italia / FBF North America Homolab 2.50

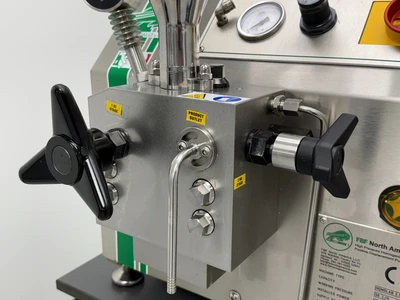

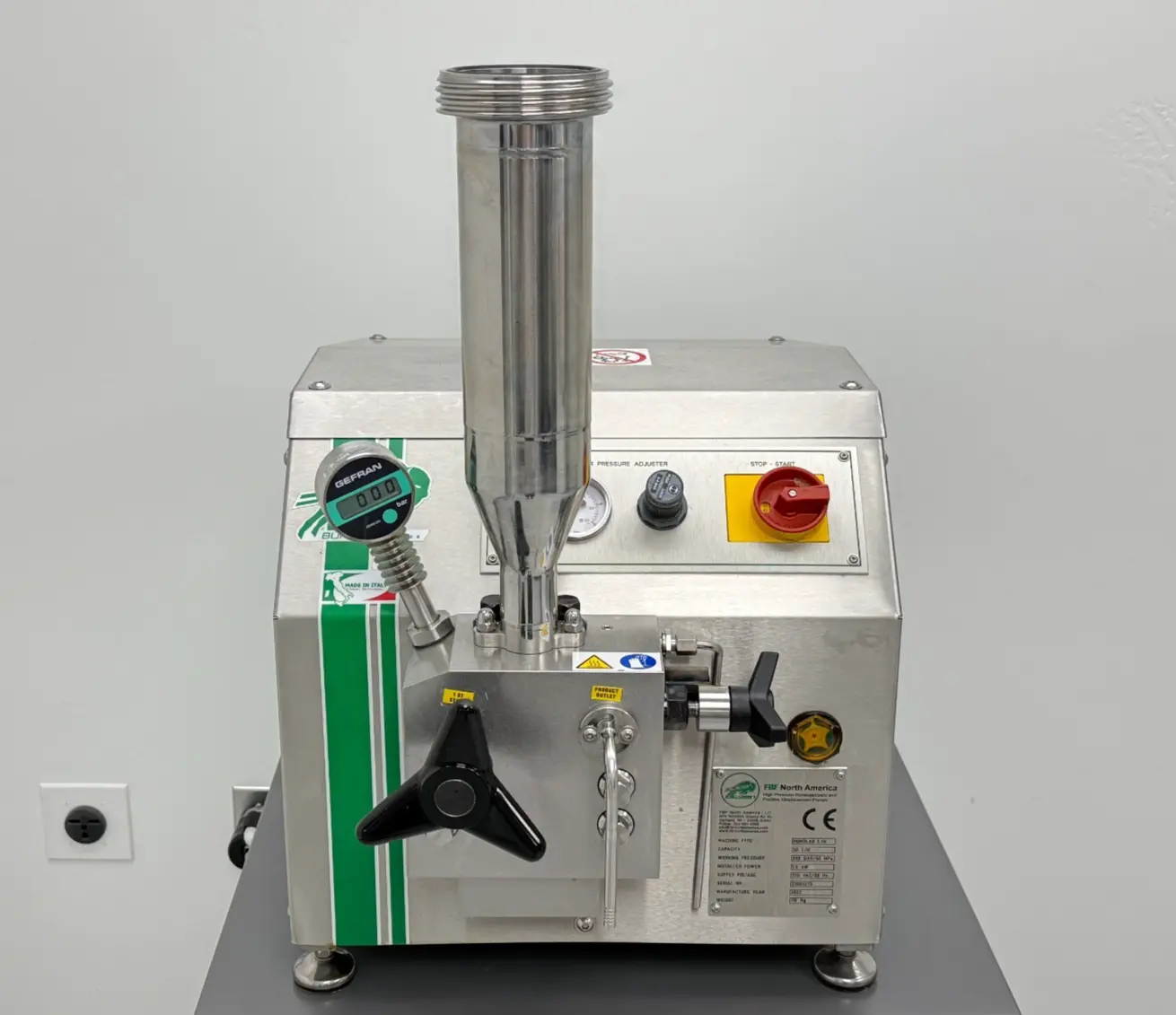

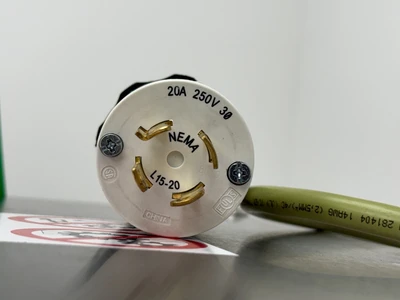

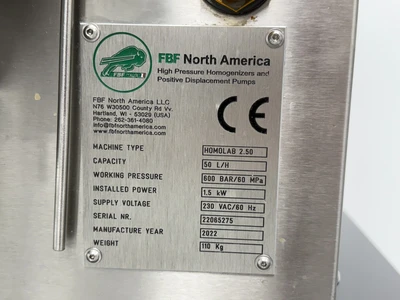

BioLabTek eBay Template SAMPLE PREP: Homogenizers FBF Italia Homolab 2.50 High Pressure Homogenizer Benchtop two-stage high pressure homogenizer that processes up to 50 L/h at pressures to 600 bar. QC PASS Tested & Working At a glance ManufacturerFBF Italia / FBF North America ModelHomolab 2.50 Serial #22065275 Year / DOM2022 ConditionLightly Used, Excellent What's Included FBF North America Homolab 2.50 High Pressure HomogenizerPower cord with NEMA L15-20 twist-lock plug Nothing else is included unless shown in the photos Condition & Testing Unit powers on and both homogenizing stages build and hold pressure normally; exterior stainless is clean apart from light product residue on the homogenizing block face and minor discoloration on the panel near the oil sight glass as pictured; pressure gauge calibration verification is the responsibility of the buyer. Specifications Instrument typeLaboratory high pressure homogenizer, two-stage Capacity50 L/h Working pressure600 bar / 60 MPa (approx. 8,700 psi) 1st homogenizing stageAdjustable up to 600 bar (60 MPa) 2nd homogenizing stageAdjustable up to 150 bar (15 MPa) Pumping pistons2 Pressure adjustmentManual handwheel on each stage Homogenizing valve materialFood grade tungsten carbide Piston coolingNone required, no cooling water connection Feed hopperPressurized stainless steel hopper with threaded cap fitting Hopper pressure controlPanel-mounted air regulator with analog gauge (psi) Pressure displayGefran IAOS-X-H-2M-M digital pressure gauge, bar readout Product outletStainless steel discharge tube at homogenizing block Pump bodyHigh resistance cast iron CrankshaftMachined from solid, nitrided LubricationOil splash type, mechanical components in oil bath Frame and panelsSquare section stainless steel frame with removable satin finish stainless panels ControlsFront panel stop/start rotary switch with emergency stop Installed power1.5 kW Supply voltage230 VAC, 60 Hz, 3-phase Power connectionNEMA L15-20 twist-lock plug, 20 A, 250 V, 3-phase Utilities requiredCompressed air supply for hopper pressurization (rear air inlet) Weight110 kg (243 lb) Specs from manufacturer literature for reference. Verify against your application. Terms & Conditions Payment We accept most payment types and work with your organization's accounting requirements. Contact us if you need a formal quote or to procure with a PO. Shipping Items ship within 1 to 2 business days after cleared payment. We ship via USPS, FedEx, UPS, or freight, to the contiguous USA and worldwide. Worldwide buyers are responsible for customs and duty import charges. Need expedited service or billing to your own FedEx or UPS account? Tell us at purchase. You may arrange your own shipping through your own carrier on request. Return Policy 60-day returns on all products from time of delivery. If anything is not right, contact us first. We want you fully satisfied. Why BioLabTek We power on and function-test, then document what we saw Photos show the exact unit you receive Instruments packed to survive the carrier POs and formal quotes welcome for academic and corporate buyers BioLabTek | Scientific Equipment Specialists | © 2026 BioLabTek
