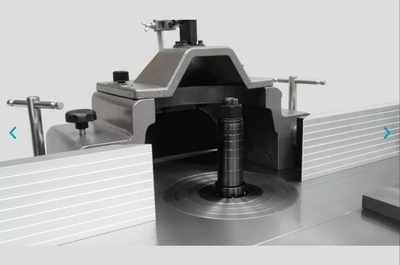

Laguna S|45T Industrial Shaper

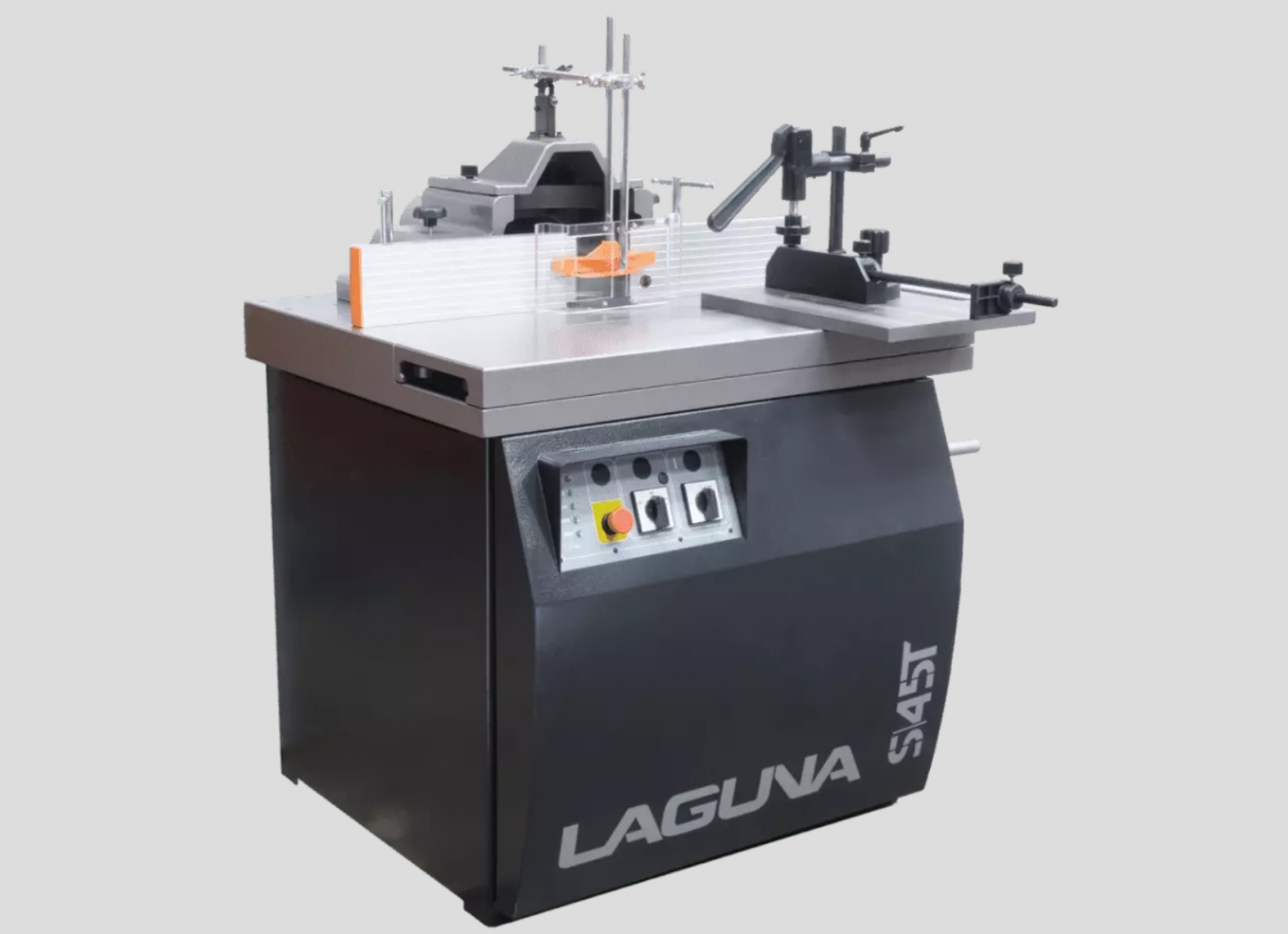

Laguna Model S 45T Industrial Shaper
The Laguna S45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop.
The combination of dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum vibration.
Motor: 5HP 1 Phase or 7.5HP 3 Phase
Spindle Tilt: 45° Backwards, 10° Forward

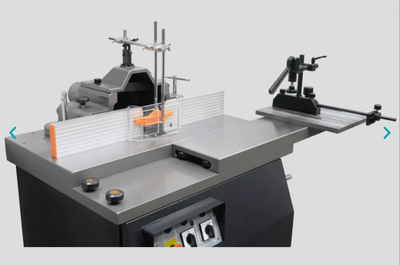

Sliding Table: 10-1/4" x 39"
Main Table Incl. S/T: 39-1/2" x 31-5/8"

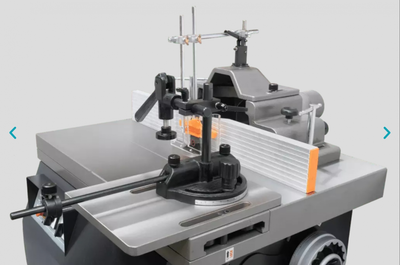

Tenoning Table:13-3/4" x 18-1/2"

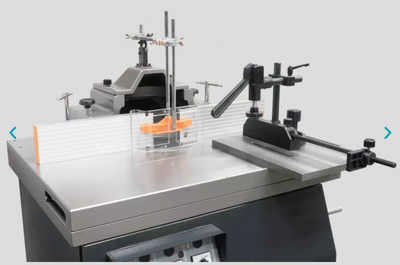

Hold Down Clamp: Included
Tenoning Table Adjustment: 7" Slide To Spindle
Sliding Table Stroke: 19" Right of Spindle
Sliding Table Stroke: 19" Left of Spindle
Sliding Table Far Right: 30" Spindle To Miter Gauge
Table Height: 35 3/8"
Capacity Under Nut: 5"/125mm
Spindle Stroke: 7"/180mm
Spindle: 1 1/4" Interchangeable
Max Tooling Diameter: 8 1/4"/210mm Under Table
Max Tooling Diameter: 13"/335mm Above Table
Rotation: Forward/Reverse

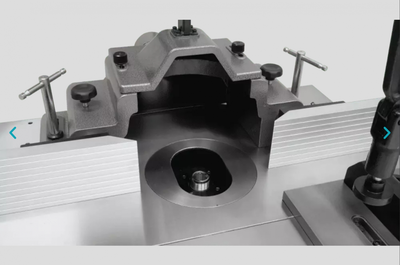

Fence: Micro Adjust, Cast Body
Speeds: 3000/4000/6000/8000/10000 RPM

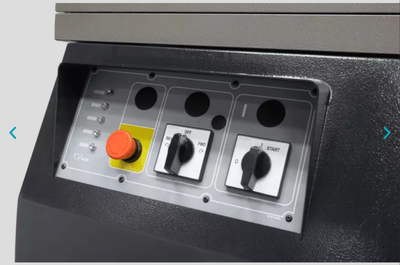

Readout: LED Lights For Speeds

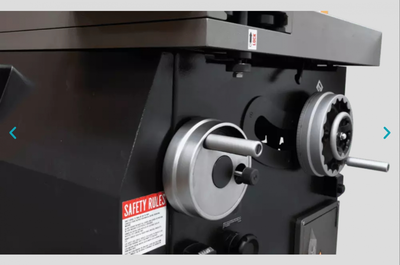

Readout: Mechanical Tilt & Spindle Height
Feeder: Pre-drilled Left Back Corner
Router Collet: Accepts, Not Included
CAS Components
Weight (Net/Ship): 1056/1350 lbs
Shipping Dimensions (L x W x H): 49" x 45" x 50"
