NEW SYSTEMS C-1205

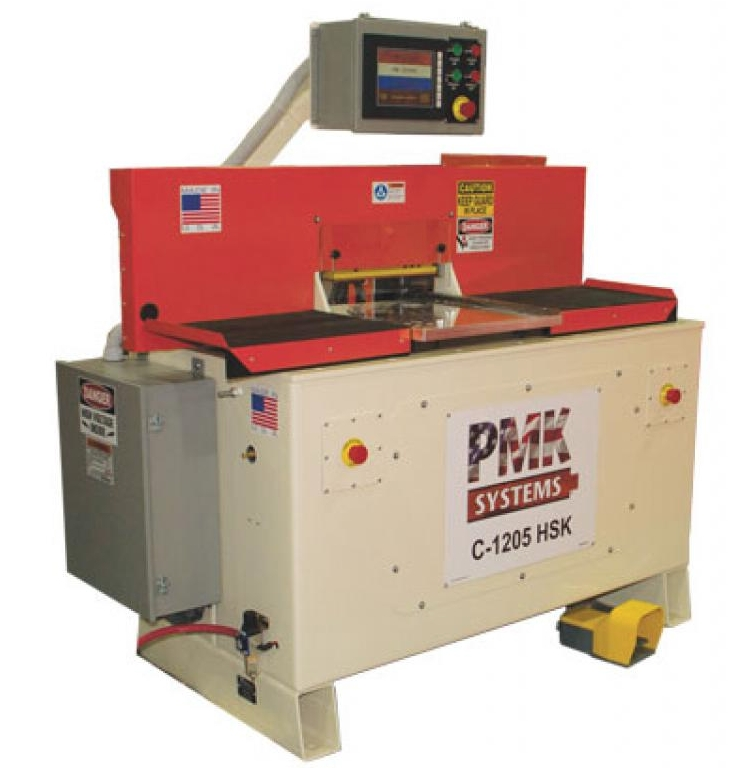

PMK Systems Model C-1205 HSK-Servo End Matcher/Coping Machine
Two - 10 hp motors - 460 - 480 volt only
Direct drive spindles
Stores up to 200 different pre-programed tooling settings.
Servo drives on both spindles for proper location of tooling (Maximum 4.5-inch movement up & down of spindles)
Servo drive on back fence 2-inch movement in and out
Chip-free coping or end-matching
THK style rails for the guidance of carriage stroke and hold-down clamp
Side pressure clamp insures proper alignment with the fence
Cycle time adjustable from 4 to 10 seconds
Two Digital Scales for fine adjustment of spindles during setup
Cutter diameter Minimum 3.5" OD Maximum 6" OD
Maximum SIZE part up to 1" thick depending on profile & density of wood 13-1/2" wide
Minimum part length 4"
Maximum depth of cut up to 3/4" depending on profile & density of the wood
Minimum part width determined by the O.D. of the cutter and if the part is profiled or not
Part length unlimited
4 (four) HSK 63F SPINDLES/TOOL HOLDERS Tool holder / Milling arbor 1.25"
Spindle length 55mm, 2.165"
Dust Hood With 5" port 1000 CFM required
C-1205-foot print Width 68" / Depth 32" / Height 64"
10" Touch Screen Monitor
