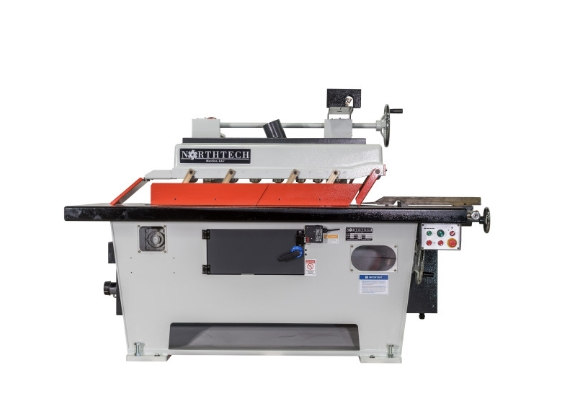

NEW NORTHTECH NT-SLR-18SC

Northtech Model NT-SLR-18SC PRECISION STRAIGHT LINE RIP SAW
FEED SYSTEM
Saw motor: 20HP, 3PH 230V/460V
Feed: 3HP variable feed range from 50 - 190 fpm
PRODUCT DIMENSIONS
Min. thickness: 3/16"
Max depth of cut: 5" with 18" blade
Max. width of stock: (Blade to column arms) 26-1/4"
FEATURES
Chain and Race equipped with NT "True Track" adjustment
Table size 83" x 40"
Machine frame is constructed of a 1" thick base plate
Solid steel frame with 1" thick column arms.
Safety interlock on blade access door preventing operator entry while blade is spinning
Blade is equipped with pneumatic braking system
2" arbor and large support bearings
Glue line rip is 14ft -16ft on 4/4 stock at 50fpm
Motors and electrical components are UL/CE rated.
Industrial fence with cam lock quick release on rack and pinion glide.
Passline: 32-3/4"
Two rows of heavy duty kickback fingers.
(8) large pressure rollers for optimum holding power
An automatic mechanical oiling system with low level feed stop
(1) Laser light, laser guard and mounting bracket are included.
(1) Tool box
