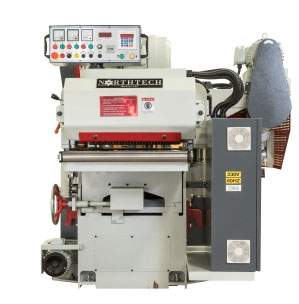

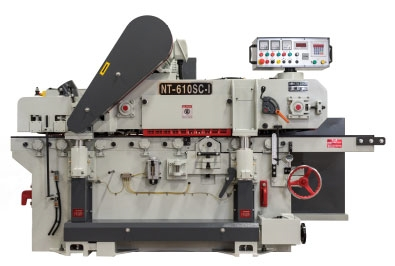

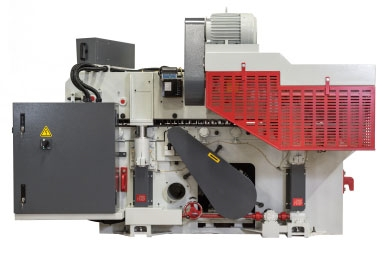

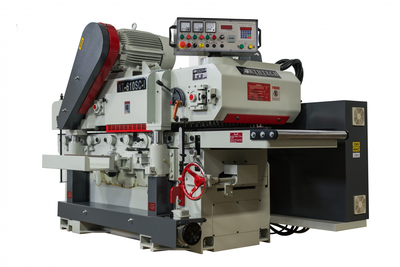

NEW NORTHTECH NT-610SC-I

Northtech NT-610SC-I Double Sided Planer
Cutterheads
40HP Top, 30HP Bottom

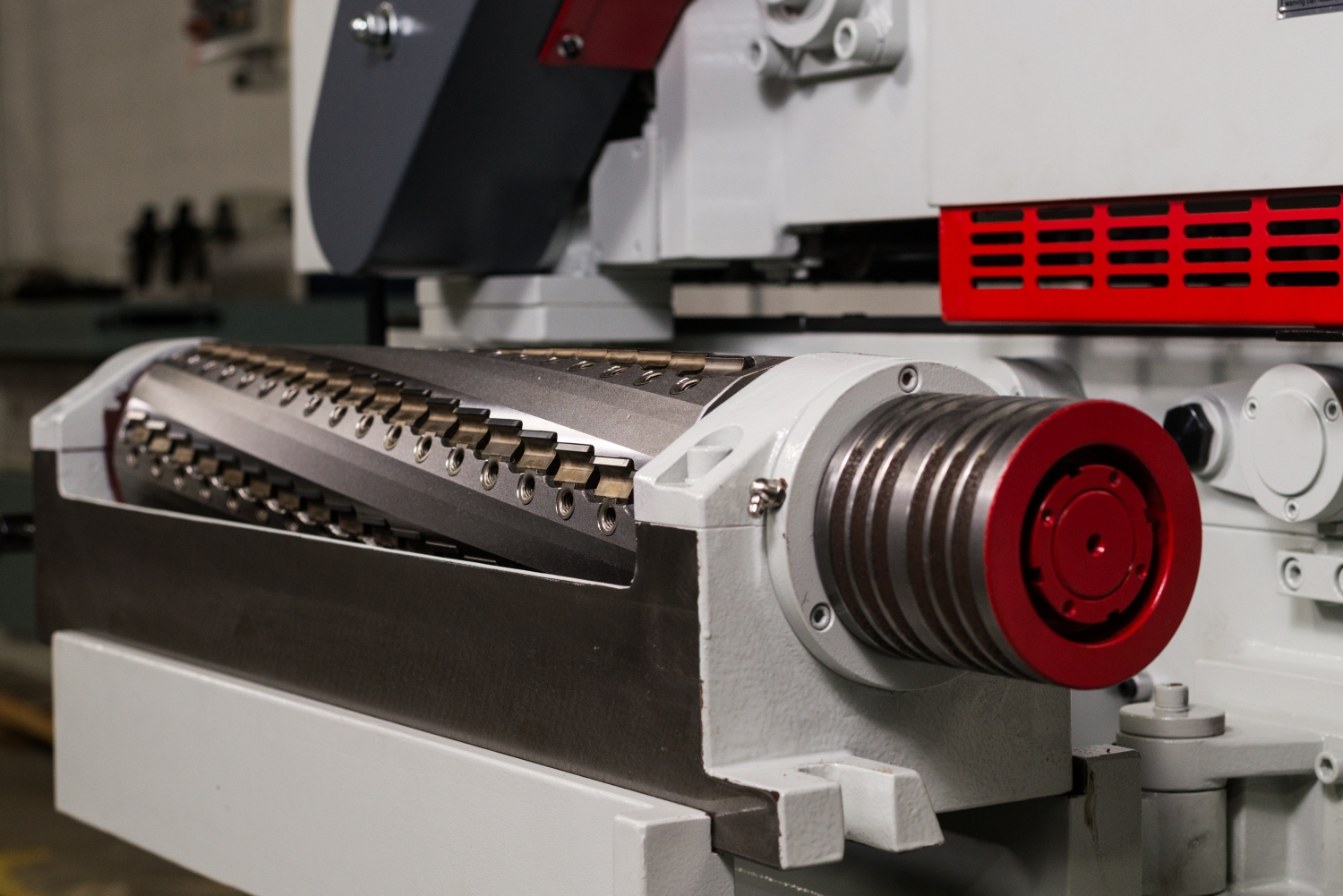

Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts (105 Total Inserts)
5,100 RPM Solid Steel Cutterheads with Class 7 NSK Bearings
Product Dimensions
Working Width 610mm ( 24")
14" Minimum Working Length
Thickness Range 8mm - 200mm (.31" - 8")
Feed System
5HP Feed Motor and 7.5HP VFD Intergrated to the feed motor
1HP Elevation Motor

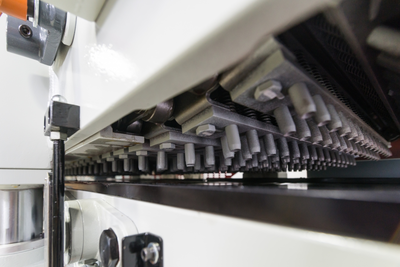

Carpet Feed Spike System
90FPM maximum feed speed
Features

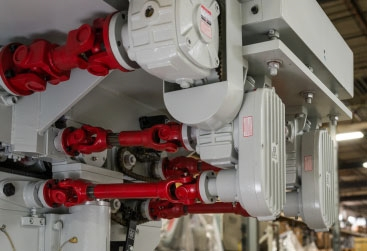

Cardan Shaft Drive System
Patented 4 Column Lifting System
Digital Controls Panel with 3 Oversized Inverter Feed Control Amp Meters
0.014 Chrome Plated Bed
(2) 6" Dust Ports requiring 981 CFM at each point of extraction
