USED 2019 VARIOUS VARIOUS

OVERVIEW

This is a complete combined heat and power (CHP) equipment package, factory new/nearly new, dated 2019, originally specified for a Stuytown/Cummins Power Systems-Bronx installation. The package includes dual Superior vertical firetube boilers, dual Bryan flexible water tube boilers, a Cummins 1100 kW generator set, a Cummins/Onan 250 kW diesel generator with subbase fuel tank, a Superior heat recovery steam generator (HRSG), a gas booster, an auxiliary equipment trailer, and a bank of cooling fan/blower units. Sold as a complete plant package. Contact us to schedule an inspection.

EQUIPMENT SPECIFICATIONS

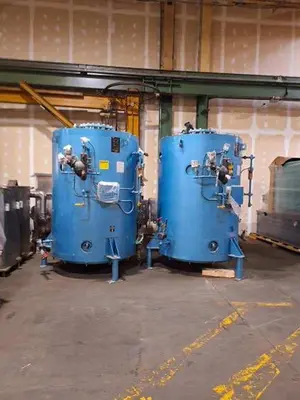

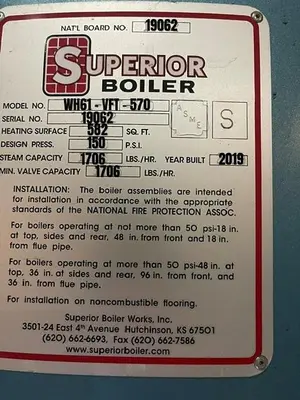

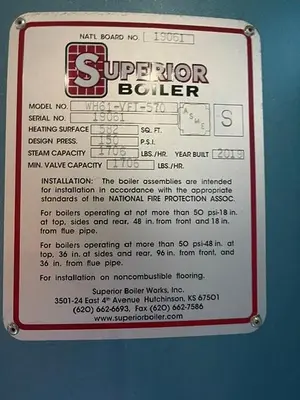

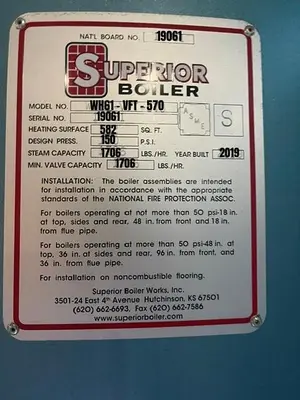

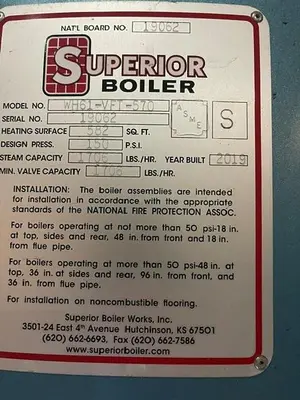

Boiler 1 & 2 — Superior Boiler (Qty. 2):


Manufacturer: Superior Boiler Works, Inc., Hutchinson, KS
Model: WH61-VFT-570
Serial Nos.: 19061 and 19062
National Board Nos.: 19061 and 19062
Heating Surface: 582 sq. ft. each
Design Pressure: 150 PSI
Steam Capacity: 1,706 lbs/hr each
Min. Valve Capacity: 1,706 lbs/hr each
Year Built: 2019

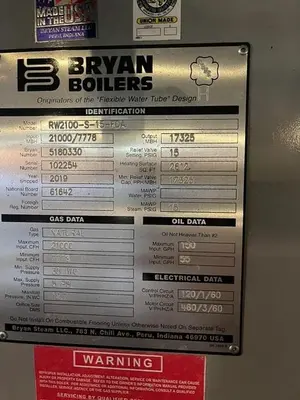

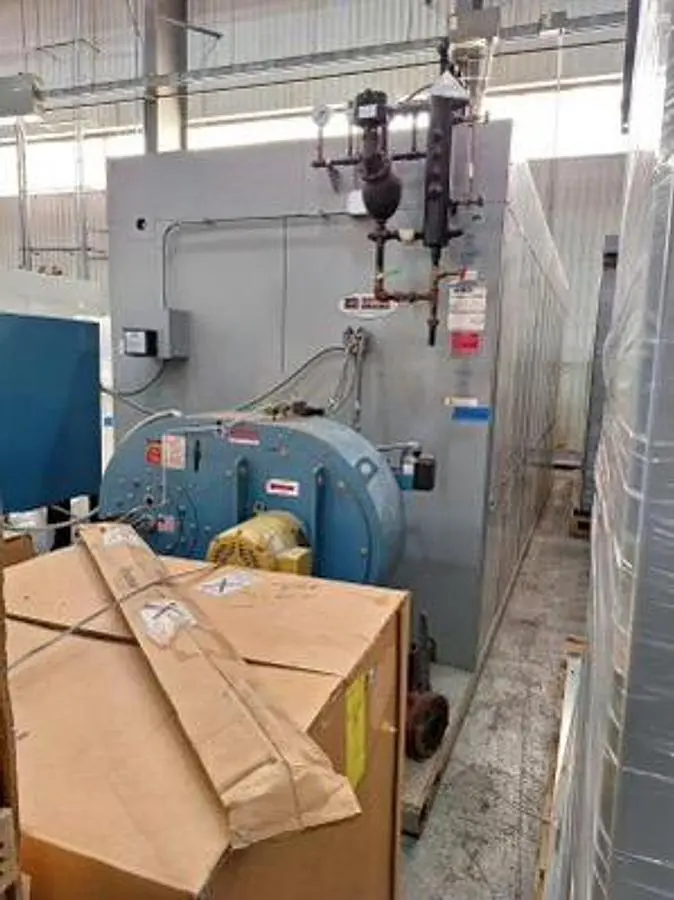

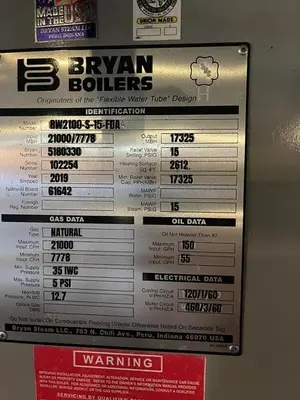

Boiler 3 & 4 — Bryan Boilers (Qty. 2):


Manufacturer: Bryan Steam LLC, Peru, IN
Model: RW2100-S-15-FDA
Serial No.: 102254 (shown unit)
National Board No.: 61642
Design: Flexible Water Tube
Input: 21,000/7,778 MBH
Output: 17,325 MBH
Heating Surface: 2,612 sq. ft.
Relief Valve Setting: 15 PSIG
Fuel: Natural Gas (Max 21,000 CFH) / #2 Oil (Max 150 GPH)
Electrical: Control Circuit 120V/1PH/60Hz; Motor Circuit 460V/3PH/60Hz
Year Shipped: 2019

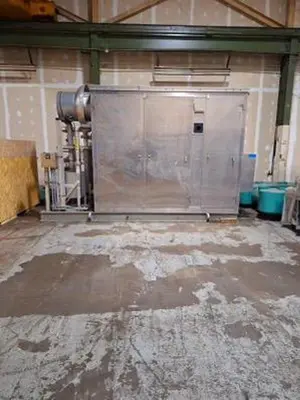

Heat Recovery Steam Generator:

Manufacturer: Superior (HRSG)
Type: Skid-mounted heat recovery steam generator
Condition: Used, removed from service

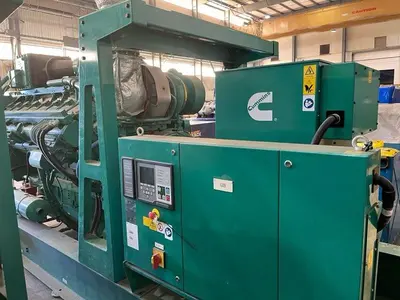

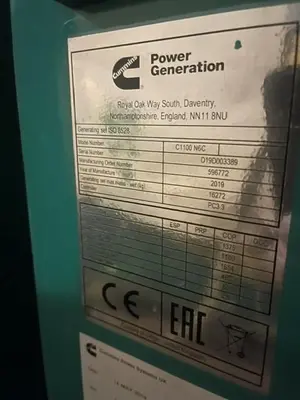

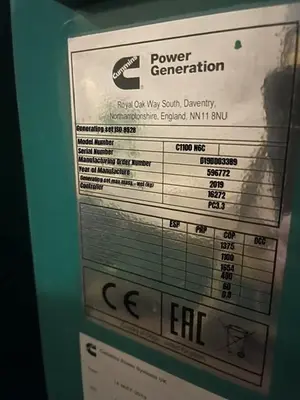

Generator Set 1 — Cummins Power Generation:


Manufacturer: Cummins Power Generation, Daventry, UK
Model: C1100 N6C
Serial No.: D19D003389
Rated Output: 1,100 kW (Prime), 1,375 kVA (Standby)
Generating Set Max Mass: 16,272 kg
Controller: PC3.3
Year of Manufacture: 2019

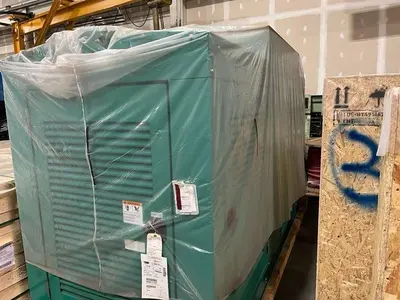

Generator Set 2 — Cummins/Onan Diesel Generator:

Manufacturer: Cummins/Onan

Rated Output: 250 kW, 277/480V, 3-Phase, 4-Wire, 60 Hz, 1800 RPM
Fuel: Diesel
Genset Model: DQDAA 250KW WE
Genset Footprint: 50" x 119"
Includes: Battery rack/cables, float-type battery charger, jacket water heater, engine-mounted radiator/fan, vibration isolators, structural steel base rails, weather housing, Isochronous governor, 2-year warranty


Subbase Fuel Tank (paired with 250kW Generator):


Manufacturer: Global Power Components
Job No.: 34641 / Dwg. No. 15-34641
Tank Capacity (Actual): 969 Gal
Tank Capacity (Useable): 940 Gal (48-hour supply)
Tank Weight: Approx. 3,450 lbs (dry, per BOM: 8,500 lbs)
Dimensions: 42"H x 50"W x 218"L
UL-142 Listed, Double Wall Secondary Containment
Features: Standard electrical stub-up area, removable end plate, 1/2" supply/return dip tubes, low/high level alarms, basin drain, locking manual fill cap, standard vent cap, emergency vent, flush mount lifting plates (4 min.), fuel-in-basin alarm, Rochester fuel level gauge, 150% rupture secondary basin, rain runoff option
Paint: Gloss Black


Gas Booster:

Type: Gas booster unit (fuel gas pressure boosting for engine/boiler package)

Auxiliary Equipment:

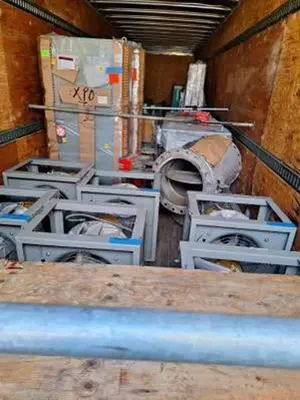

Auxiliary equipment trailer, containerized/mobile support unit

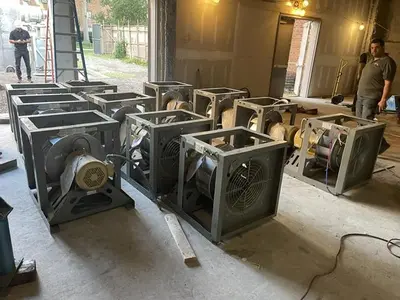

Bank of cooling fan/blower units for CHP heat rejection (multiple units shown, skid-mounted)


KEY FEATURES AND BENEFITS


Complete factory-packaged CHP plant, boilers, generators, and HRSG
Dual Superior vertical firetube boilers and dual Bryan flexible water tube boilers
1,100 kW primary generator plus 250 kW backup diesel generator with 48-hour subbase fuel tank
Heat recovery steam generator for combined efficiency
UL-142 listed fuel tank with double wall secondary containment
Nearly new 2019 manufacture across major components
Includes auxiliary trailer and cooling fan bank for complete plant support


SPECIFICATIONS SUMMARY


Boilers: (2) Superior WH61-VFT-570, 150 PSI; (2) Bryan RW2100-S-15-FDA, 15 PSIG
Generators: (1) Cummins C1100 N6C, 1,100 kW; (1) Cummins/Onan 250 kW diesel
Fuel Tank: 940 usable gal subbase tank, UL-142 listed
HRSG: Superior heat recovery steam generator
Auxiliary: Gas booster, equipment trailer, cooling fan bank
Year: 2019 (boilers and generators)
Condition: Used/Nearly New


ADDITIONAL INFORMATION


Condition: Used, nearly new — 2019 manufacture on major components
Configuration: Complete CHP plant package
Origin: Superior Boiler (Hutchinson, KS), Bryan Steam (Peru, IN), Cummins Power Generation (Daventry, UK), Global Power Components (Milwaukee, WI)
Inspection: Welcome, contact us to schedule
