USED 2018 GANESH GTD 4460

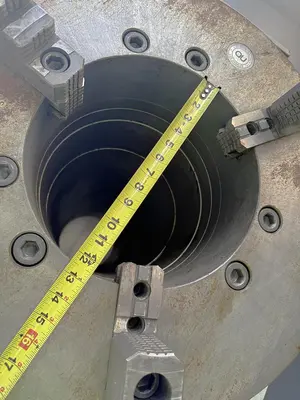

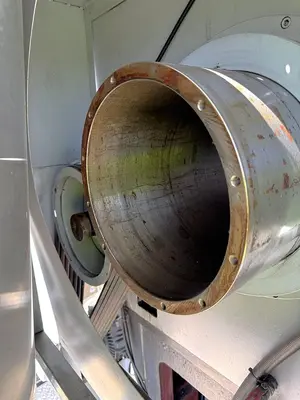

Large 12" Spindle Bore

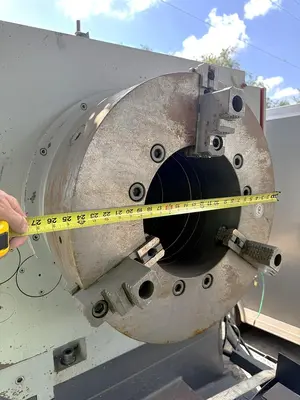

24.5" QU Industrial 3 Jaw Manual Chuck

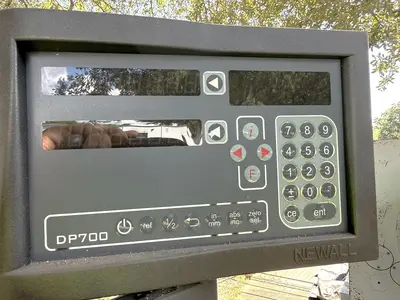

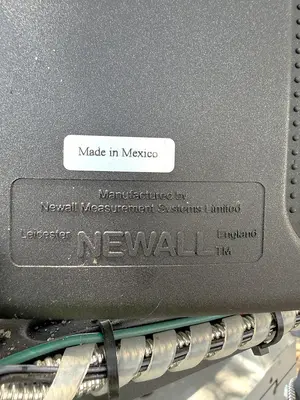

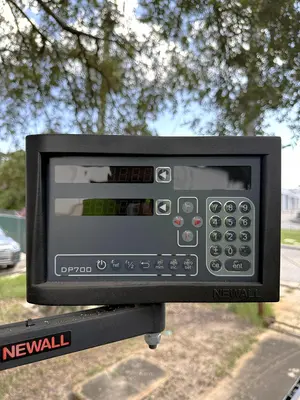

Newall DP700 Digital Readout
4 Way Dorian Tool Post
Heavy Duty Tailstock
Taper Attachment

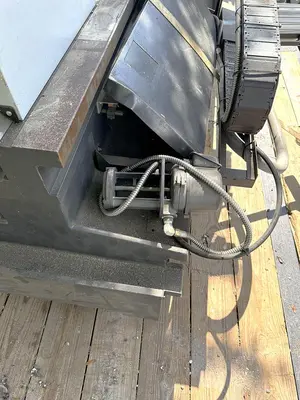

Flood Coolant System w/ Coolant Pump
Work Light
Hardened & Ground Bedways with Turcite B Coating
Rapid Traverse
Electromagnetic Spindle Brake

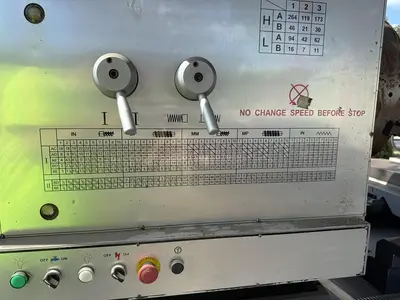

Thread Dial Indicator for Inch/Metric Threading
Automatic Way Lubrication
480V / 3 Phase

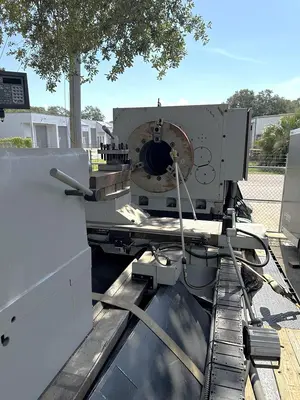

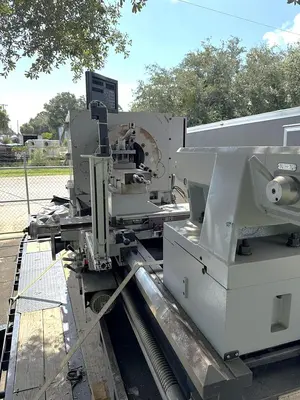

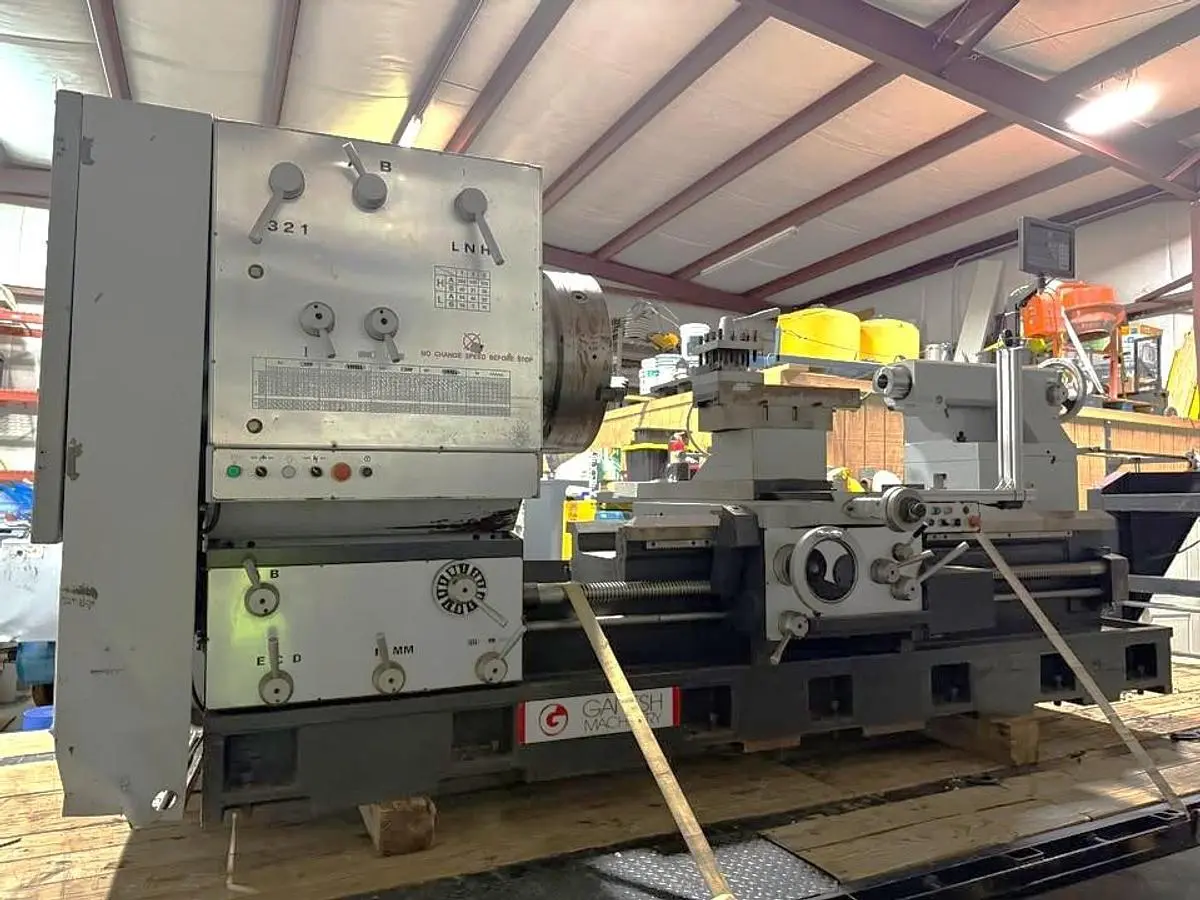

The Ganesh GTD 4460 Heavy Duty Oil Country Engine Lathe is a robust and reliable machine, ideal for handling substantial workpieces. This used lathe offers a maximum swing over bed of 44 inches, with an impressive swing over gap of 55.11 inches and a swing over cross slide of 27.95 inches. The distance between centers reached up to 60 inches, making it versatile for various lengths of material. A 24-inch 3-jaw manual chuck facilitates secure handling of workpieces.

Equipped with a powerful 40 HP spindle motor, the lathe offers 12 manually changed speeds ranging from 7 to 264 RPM, allowing for precise and efficient machining. The spindle features a generous bore and bar capacity of 12 inches, with an A2-20" spindle nose and MT #7 spindle nose taper. The machine supports a maximum workpiece weight of up to 26,800 lbs with chuck, tailstock, and steady rest.

Additional features include a 32-inch bed width, 27.56-inch cross slide travel, and a compound slide travel of 15.75 inches, allowing for comprehensive control over operational precision. The tailstock is equipped with an MT #6 center and offers a quill stroke of 20.87 inches. Weighing 14,700 lbs, this lathe is built to endure rigorous use in industrial settings.
