NEW FIMAL CONCEPT

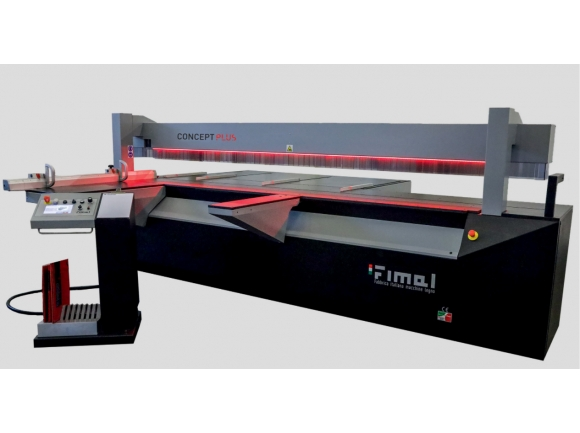

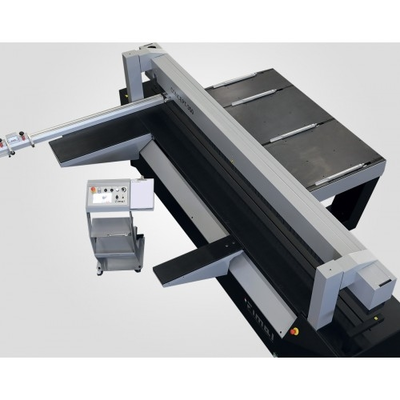

Fimal Model Concept 350 PLUS 3200 Panel Saw
Squaring Length: 3200mm (~126")
Blade Diameter: 300/350mm
Blade Bore Size: 30mm
Blade Projection @ 90 Degrees: 75/100mm
Blade Projection @ 45 Degrees: 45/67mm
Blade Speed: 4000 g/min
Blade Carriage Speed: 40 mt/min
Main Saw Blade Motor: 7.5HP (5.5kW)
Reinforced Fixed Front Table and Squaring Fence
Front Table with 2 reference supports and quick locking through Stud Bolts
Easier Micrometric Fence Adjustment
Dust Evacuation Slot Between Squaring Fence and Phenolic Table
extension of Squaring Fence increased to 190mm
Hinged Opening Door on top of machine for Inspection and Cleaning

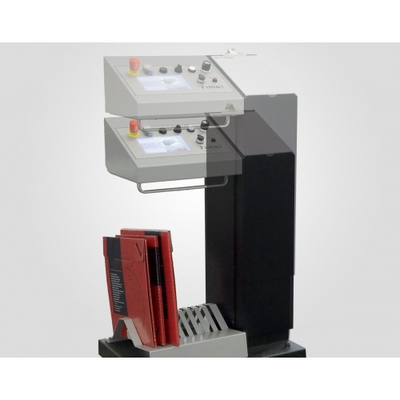

Movable Control Pedestal
Strong Telescopic Fence Extendable up to 2500mm with 2 mechanical stops
Motorized Rear Stop and Programable Rotating Double Stop
On Demand Third Stop for Parallel Cuts
