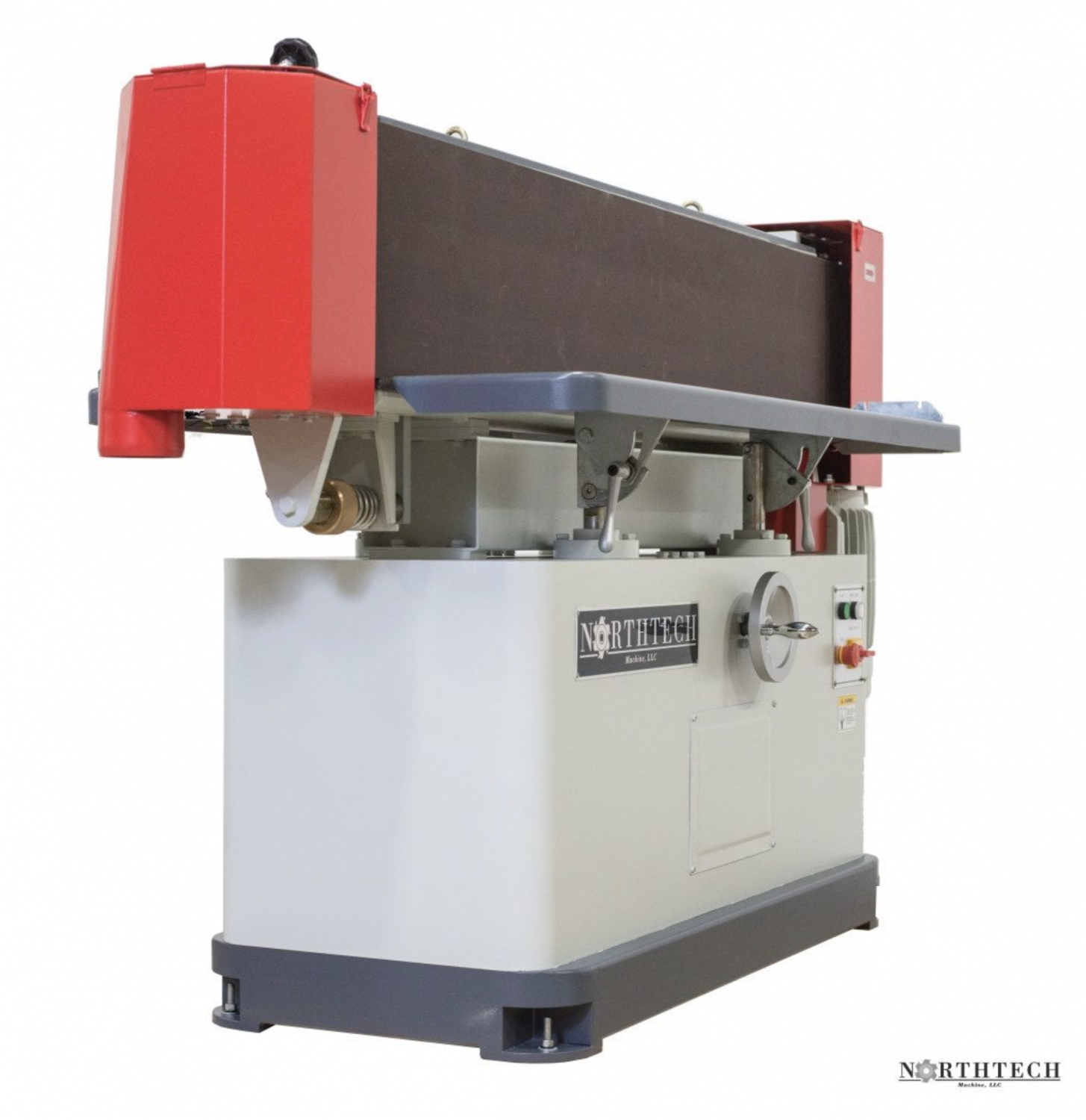

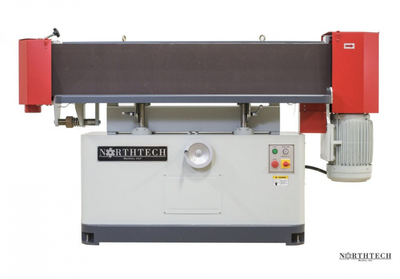

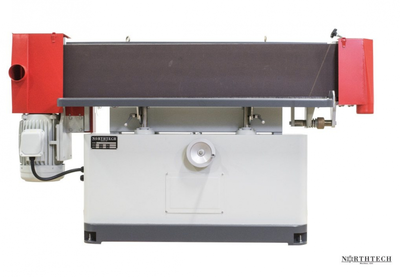

NEW NORTHTECH NT-ES960SE

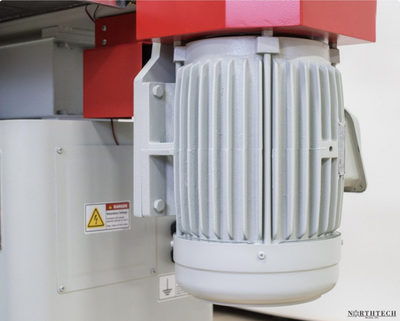

5HP main motor; 3PH, 230V/460V Dual Voltage
12mm (1/2") oscillating stroke
Drive wheel: 7" x 9-5/8"
Easy elevation control through manual worm gear
Side table dimensions: (1) 10" x 59"
Side table tilt: 0° - 45°
End table dimensions: (1) 13" x 16-1/2"
End table tilt: 0° - 45°
Sanding belt size: 9" x 158" (Included)
Sanding belt speed: 3100 FPM
Platen size: 9.5" x 60"
Dust ports: ( 2) 4" requiring 436 CFM @ point of extraction
Easy jig fences are standard for squaring accuracy and part stability
Adjustable working height: 32" - 37"
Machine Dimensions: 88" x 26" x 27"
Packaging Dimensions: 92" x 30" x 55"
Net weight: 738lbs
Gross weight: 988lbs
(1) Tool box
Amperage requirements: 230/460V 60HZ 3PH: 12.9A/6.45A
Standard Northtech one year parts warranty
Northtech offers a full line of dust collectors and flex hose for any application.
All machines are tested stateside prior to shipment providing trouble free start up.
