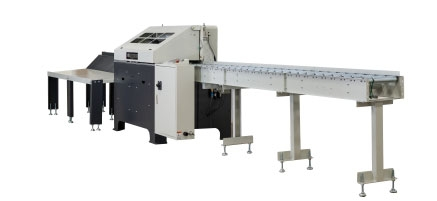

Northtech NT-EM300 Linear End-Matcher

Dual 10HP spindle motors 460V, 3PH, 60 HZ
12 CFM @ 90 PSI required
(1) 6" Dust ports requiring 981 CFM @ point of extraction
Width: 40mm - 300mm (1-1/2" - 12"
Thickness: 8mm - 35mm (3/8" - 1-3/8"
Length: 280mm (11" - unlimited
Maximum Weight of Lumber: 32 lbs
40mm spindles inside precision bearing
1HP PLC controlled feed system manages spindles position, part location and both infeed and outfeed holddowns
1/2HP variable feed, 90-300 FPM
Pancake style T & G heads, utilize carbide insert replacements for exacting repeatability (Included)
Dual lineal shaft guides for head movement
Touchscreen interface with production tracking
Chrome plated table
134" Powered infeed and 88" Outfeed
Infeed and outfeed with dual action clamping system with (5) powered urethane rollers
(3) Spring loaded bed rollers
FLR included
Fully automatic cycle operation
Processing speed: 75' / minute *Based on 6" material length
