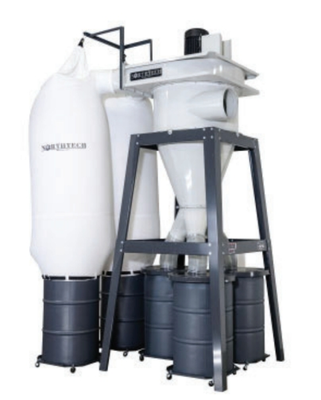

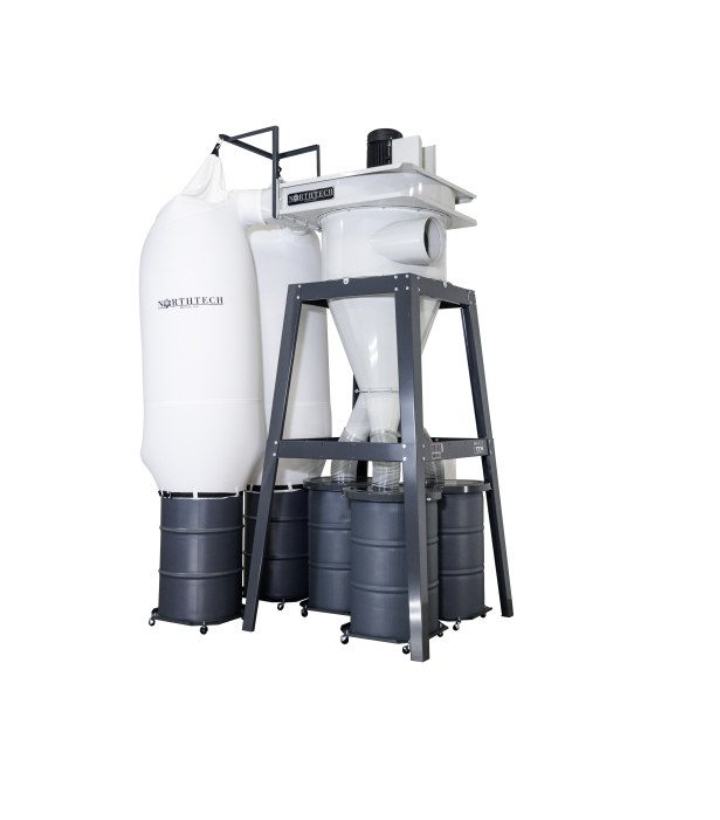

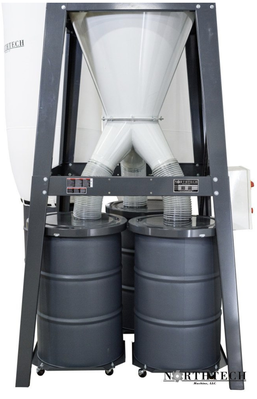

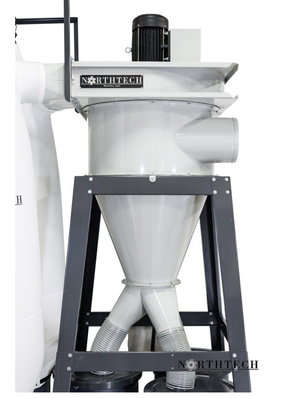

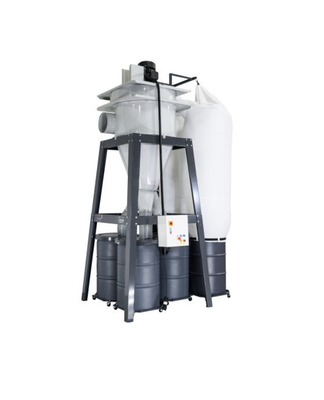

NEW NORTHTECH NT-2ST15XL

Cyclone dust collectors use the speed of the air and the physics of centrifugal force to separate dust from the air. The natural cyclonic air flow allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags. A clean air mounted blower and steel cyclone design provides decades of dust separation without primary filter bags. Supported by a steel frame structure that allows for the use of standard barrels for waste collection or connection to a rotary air lock.
2 Stage filtration
Large diameter cyclone
Impeller Motor: 15HP, 3PH, dual voltage 230/460V
Inlet diameter: 12” round inlet
Impeller Diameter: 25"
Cyclone Diameter: 35"
Free Air CFM: 6200
Filter Bags (2): 39" x 103"
Centralized controls inside dust proof enclosure
Approved Electrical Parts: CE approved components
Control Voltage: 220V
Assisted Start: Wye Delta
(5) 55 gallon drum dollies included
(3) 55 gallon drum lids included
(1) Tool box
Frame Construction: steel construction
Machine weight N.W./G.W.: 1000/1165 lbs.
Machine dimensions: (L) 80" x (W) 61" x (H) 138"
Packing dimensions: (L) 51” x (W) 48” x (H) 73”
Optional items available: 1/2HP RAL (NT-RAL5), outdoor conversion kit, auger mount, voltage change charge, drum lids, drum dollies, square to round connector for RAL connection
