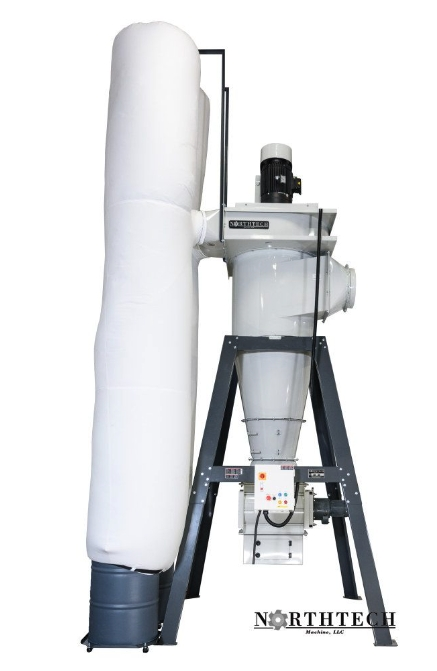

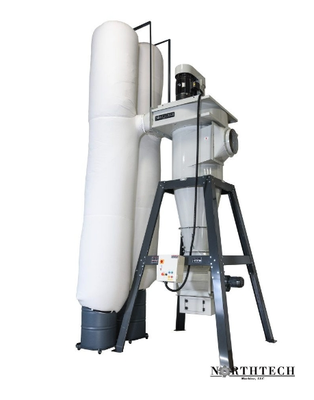

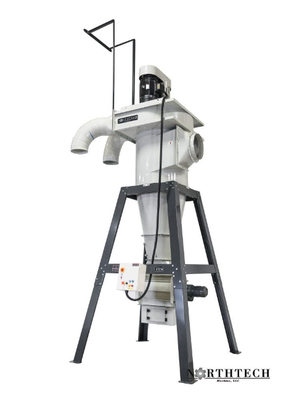

NEW NORTHTECH NT-2ST20XL-RAL

This is a 20HP fan with a primary cyclone filter with a rotary are lock
The natural cyclonic air flows allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags
A clean air mounted blower and steel cyclone design provides decades of dust separation without primary filter bags
This cyclone and filter bad are supported by a steel frame structure that allows for the ise of standard barrels and secondary
waste system as an auger or transfer blower
Main Motor: 20 HP
Voltage, Frequency: 230/460 Volt 60 Hz
Phase: 3 Phase
AMP Requirement: 27 / 54 Amps
Total Machine HP: 21 HP
Approved Electrical Parts: CE Approved Components
Dual Voltage Motors: 230/460 Volt
Control Voltage: 220 Voltage
Assisted Star: Wye Delta
Dust Port Size Inlet: 16" Round Inlet
Free Air CFM: 8200 CFM

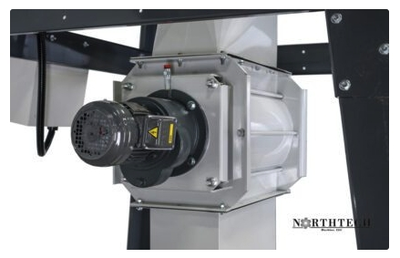

R.A.L Size: 10" x 24"
R.A.L HP: 1 HP
Impeller: 26"
Frame Construction: Steel
Cyclone Diameter: 35"
Weight: 2180 lbs
Machine Dimensions: 102" x 82" x 222"
