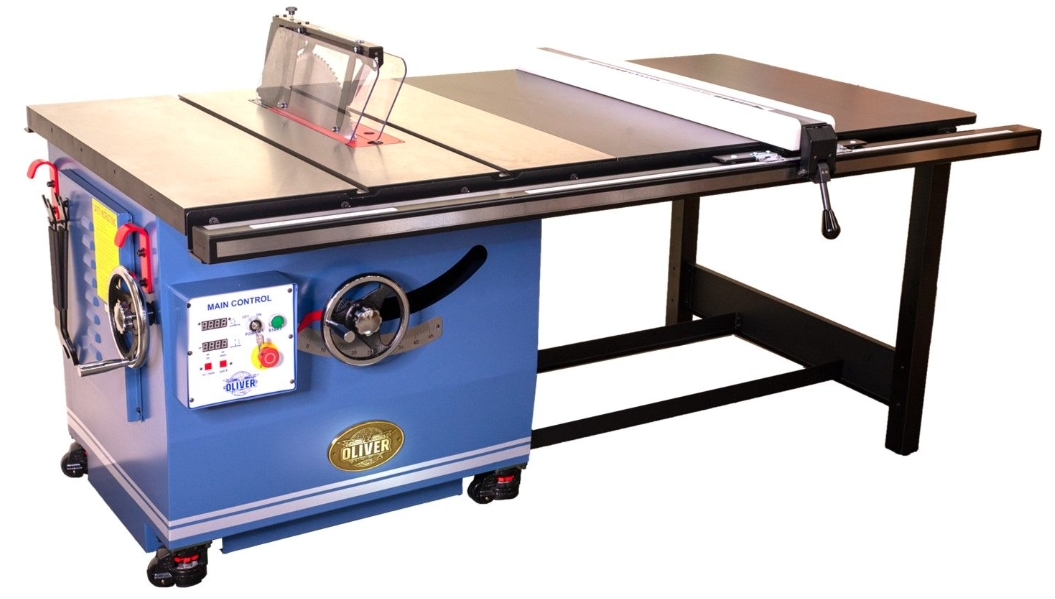

NEW OLIVER 4065.002

Rail Length w/Side Table w/52" Rail
Blade Diameter 14"
Arbor Diameter 1"
Blade Tilt Left
Arbor Speed 3,800 RPM
Maximum Depth of Cut at 90° 5-1/8"
Maximum Depth of Cut at 45° 3-5/8"
Maximum Width of Dado 11/16"
Dado Diameter (Optional) 12"
Max Dado Size: 12"
Maximum Cut to Right of Blade 52" Rail
Maximum Cut to Left of Blade 10"
Maximum Rip to Right of Blade: 52"
Dust Port Diameter 4"
Table Dimensions w/o Extensions 35-13/16"(L) x 39"(D)
Wing Size 42-1/2"(L) x 39"(D)
Table Dimensions 78-5/16" (L) x 39"(D)
Table Height 44"
Motor 3PH, 220V (19.5A) Prewired. Optional 440V (9.5A) Available.
Motor 3Ph 7.5HP
Footprint 74" (L) x 39"(D)
Overall Dimensions 82"(L) x 48"(D) x 44"(H)
