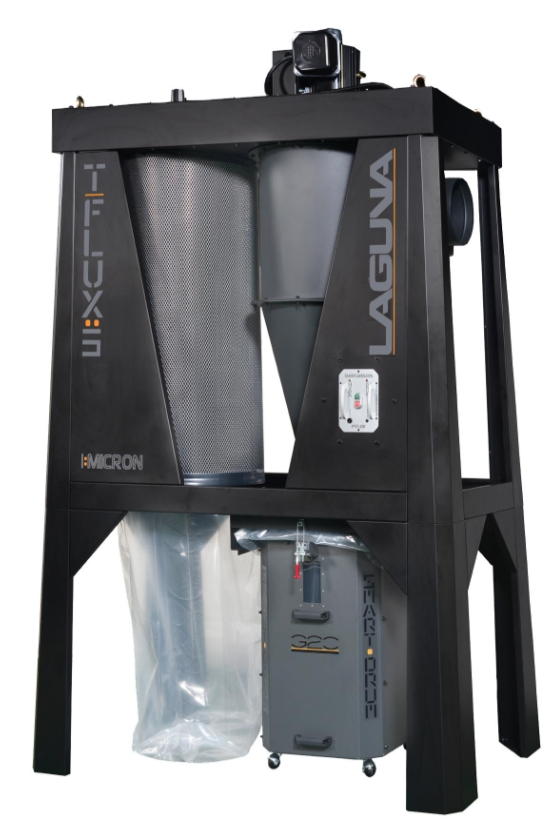

Laguna T Flux 5 Cyclone Dust Collector

Motor HP 5 HP
Phase 1
Voltage 220V
Amps 22.4 Amps
Hertz 60
Plug No
RPM 3450
Hand Held Remote Control High Frequency
Real CFM 2450
Nominal CFM 4295
Max Static Pressure (inches of water) 12.1
Impeller/Fan Size 16
Impeller Material Steel
Impeller type Radial Fin
Balanced ISO 1940
Inlet Diameters 10
Drum Capacity 54Gal.
Octagon Drum Low Pressure Suction
Drum Collection Bag (Dia. x L) Plastic bag (Ø740 x 1300mmL)
Canister Filter Type Black 1 Micron
Filtration Efficiency 0.2-2micron @99.97%
MERV Rating 12
Canister Diameter Ø600mm (23.62 )
Cansiter Length 1200mm (47.24 )
Filter Surface Area 15m² 162ft²
Canister filter lower dust collection Plastic bag (Ø610 x 600mmL)
Wheels None
Decibel Reading 76 d B(A) (@9.8ft)
