USED KMT 10078780

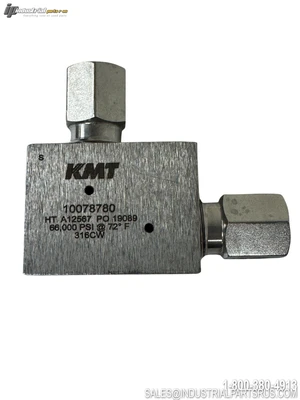

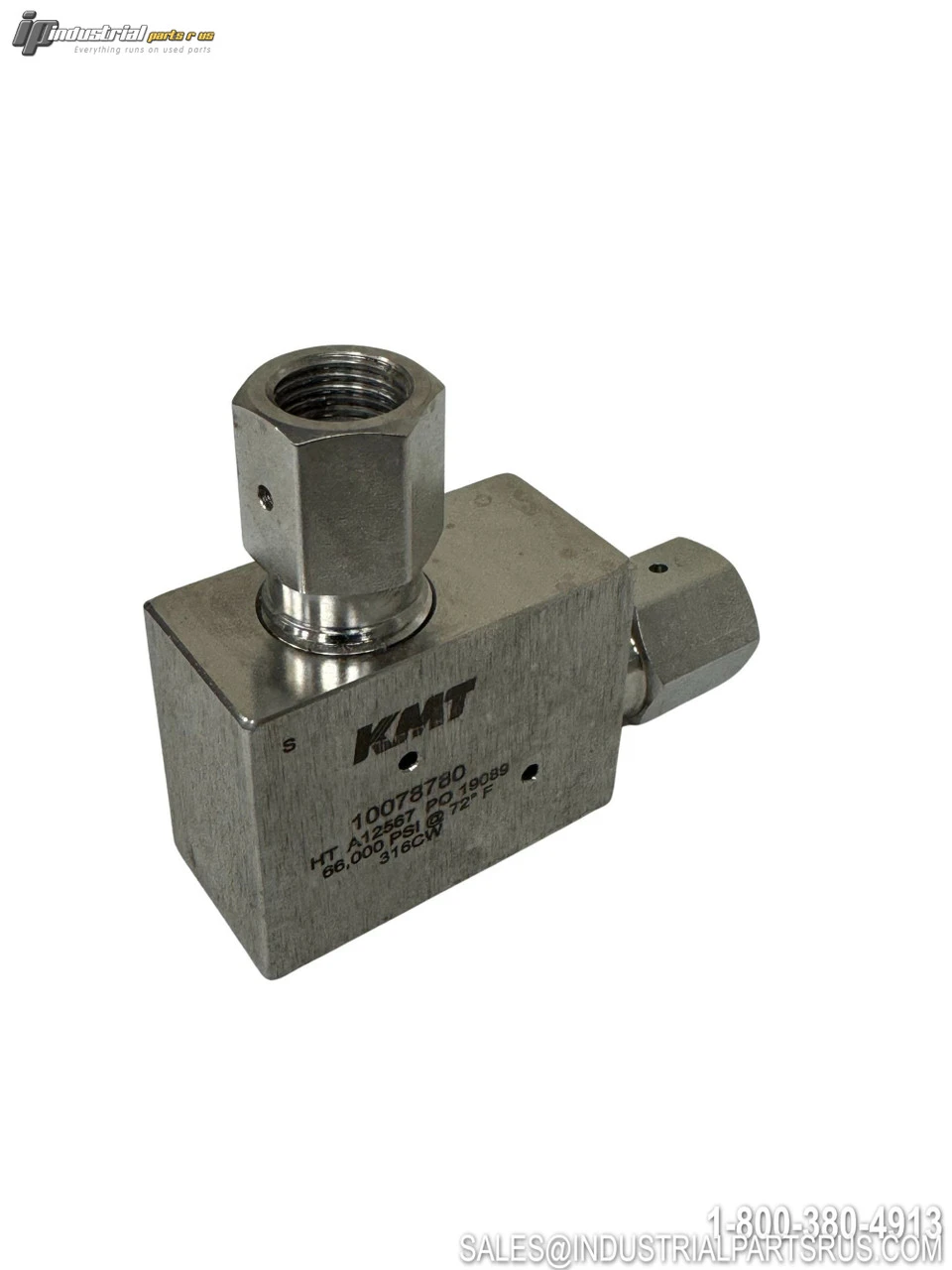

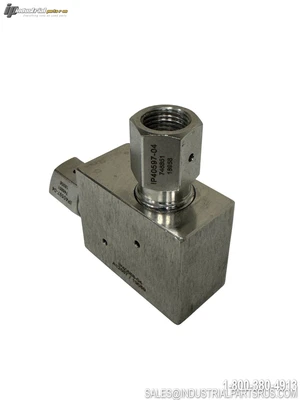

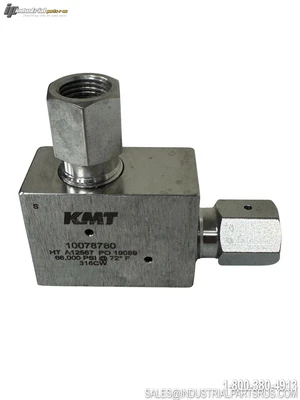

The KMT 10078780 is a genuine OEM high-pressure (HP) elbow assembly designed for use in 60,000 PSI (60K) waterjet cutting systems. This 3/8" x 3/8" female-to-female stainless steel 90-degree elbow is used to redirect flow direction within the high-pressure water circuit and is supplied complete with glands and collars. It is compatible with KMT STREAMLINE® SL-VI, CLASSIC, and JETLINE series pumps and serves as a direct replacement for Flow International part number A-0775-2, AccuStream 1-13164-60-6, H2O Jet 400009-2, and WSI 201514.
Specification
Value
Brand
KMT
Model / Part Number
10078780
Description
Elbow Assembly, HP, 3/8" x 3/8", Female/Female (F/F), 60K
Connection Size
3/8" x 3/8"
Connection Type
Female to Female (F/F)
Elbow Angle
90 Degrees
Maximum Operating Pressure
60,000 PSI (60K) / ~4,100 bar
Material
Stainless Steel (316L)
Thread Type
Precision Machined Tapered (Coned & Threaded)
Includes
Glands and Collars
Net Weight
0.421 kg
Application
Waterjet Cutting Systems – High Pressure Water Circuit
Compatible Systems
KMT STREAMLINE® SL-VI, CLASSIC, JETLINE 50 Series (60K)
OEM Part Type
KMT Genuine Part
Cross-Reference: Flow International
A-0775-2
Cross-Reference: AccuStream
1-13164-60-6
Cross-Reference: H2O Jet
400009-2
Cross-Reference: WSI
201514
Reference Assembly Drawing
2007A – High Pressure Water Assembly (09/2007)
We warranty all items for 30 days from date of purchase.
