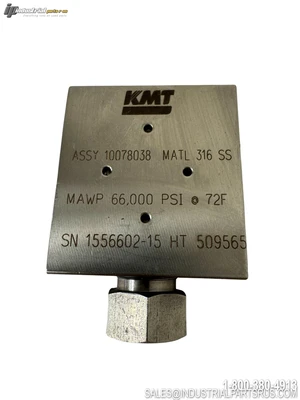

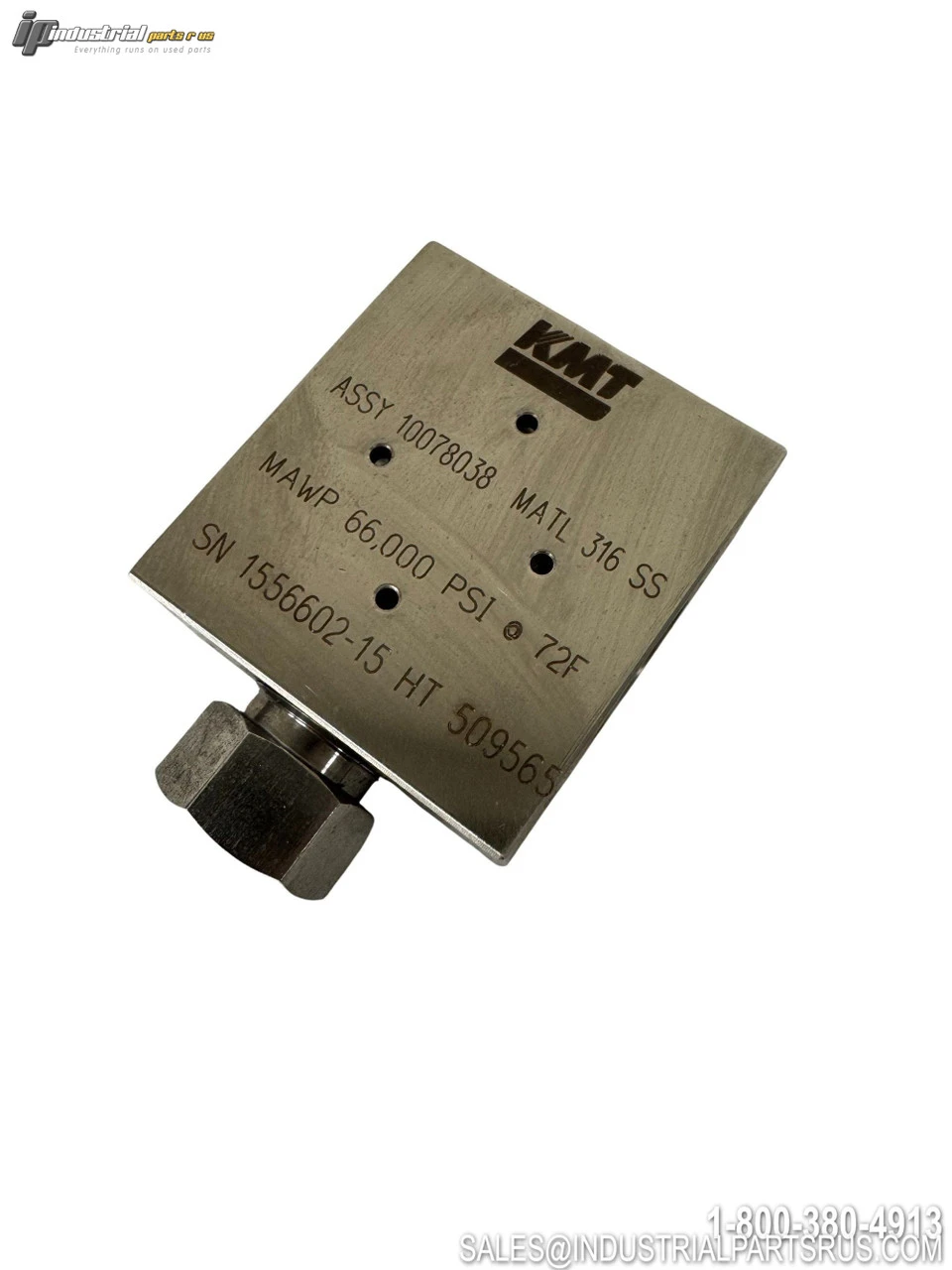

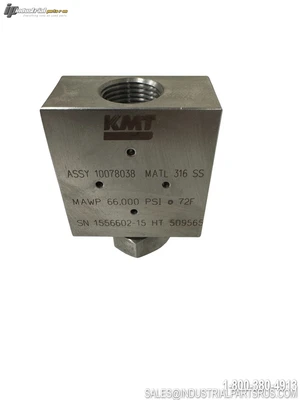

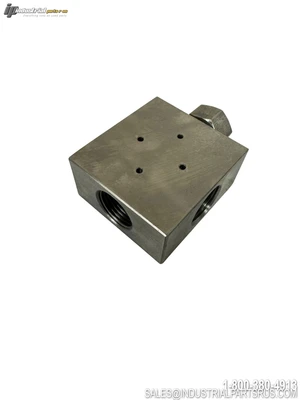

USED KMT 10078038

The KMT 10078038 is a High Pressure (HP) Cross Assembly designed for use in KMT waterjet cutting systems rated at 60,000 PSI (4,100 bar). Constructed from stainless steel, this four-way cross fitting features 3/8" female connections on all ports and serves as a critical junction component in the high-pressure tubing and fittings network of KMT STREAMLINE® SL-IV, SL-V, and SL-VI series pumps. It is cross-compatible with Flow waterjet part A-0777-3 and H2O part 400071-2.
Specification
Value
Brand
KMT
Model / Part Number
10078038
Description
Cross Assembly, HP, SST (CROSS ASSY-HP,.38,F,SST)
Connection Size
3/8" (0.38 in)
Connection Type
Female (All 4 Ports)
Fitting Type
Cross (4-Way)
Material
Stainless Steel (SST)
Maximum Pressure
60,000 PSI (4,100 bar)
Pressure Rating
HP (High Pressure)
Compatible Systems
KMT STREAMLINE® SL-IV, SL-V, SL-VI 60K Pumps
Cross-Reference (Flow)
A-0777-3
Cross-Reference (H2O)
400071-2
Application
Waterjet Cutting System High Pressure Tubing & Fittings
Series / Family
HP Tubing/Fittings/Valves: Crosses
We warranty all items for 30 days from date of purchase.
