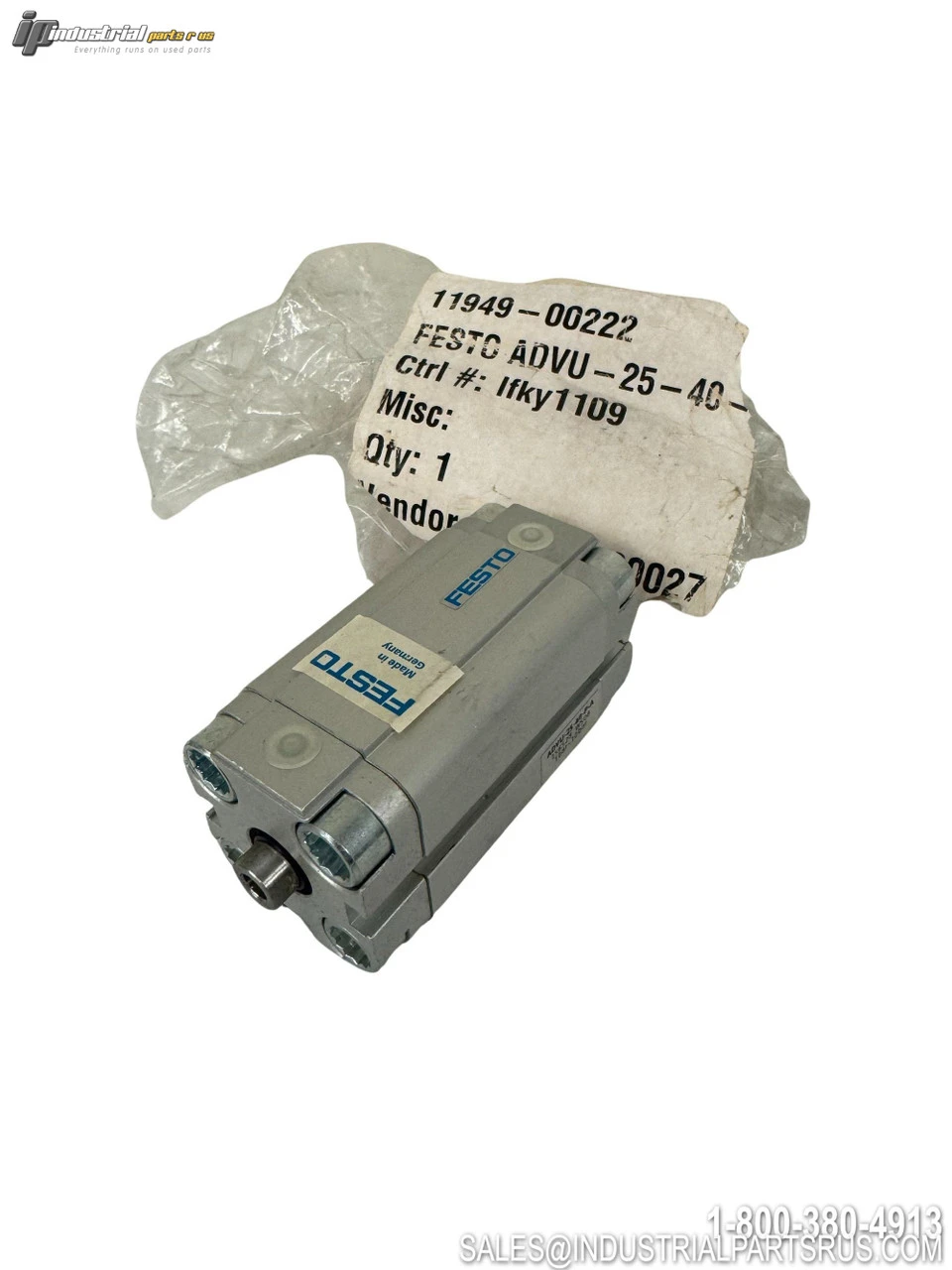

NEW FESTO ADVU-25-40-P-A

The Festo ADVU-25-40-P-A (Part No. 156528) is a classic compact double-acting pneumatic cylinder from the ADVU/AEVU series, featuring a 25 mm bore diameter and 40 mm stroke length. It incorporates elastic cushioning rings/plates at both ends, a female-thread piston rod end, and a magnetic piston that allows position sensing via proximity switch. This cylinder offers up to 50% less installation space compared to standard ISO 15552 cylinders, making it ideal for space-constrained automation applications.
Specification
Value
Brand
Festo
Model / Part Number
ADVU-25-40-P-A
Festo Part No.
156528
Series
ADVU / AEVU
Product Type
Compact Cylinder (Pneumatic)
Cylinder Action
Double Acting
Bore Diameter
25 mm
Stroke Length
40 mm
Advance Force (Max)
295 N
Return Force (Max)
247 N
Operating Pressure
1 to 10 bar (14.5 to 145 psi)
Pneumatic Port (Connection)
M5
Piston Rod Thread Type
Female Thread (M5)
Cushioning
Elastic cushioning rings/plates at both ends (P)
Position Sensing
Via proximity switch (magnetic piston)
Piston Rod Configuration
Single-ended (at one end)
Mounting Type
Through Hole Mount
Barrel Material
Wrought Aluminum Alloy
Piston Rod Material
High Alloy Steel (Non-Corrosive)
Operating Temperature
-20 to +80 °C (-4 to 176 °F)
Operating Medium
Compressed air per ISO 8573-1:2010 [7:4:4]
Lubrication
Lubricated operation possible (then always required)
Overall Dimensions (L x W x H)
85 mm x 41.5 mm x 40 mm
Moving Mass (at 0 mm stroke)
26 g + 6 g per additional 10 mm stroke
We warranty all items for 30 days from date of purchase.
