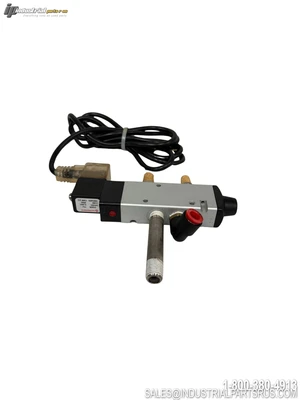

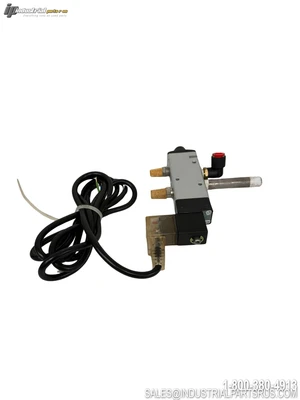

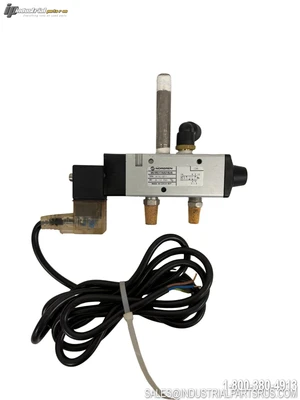

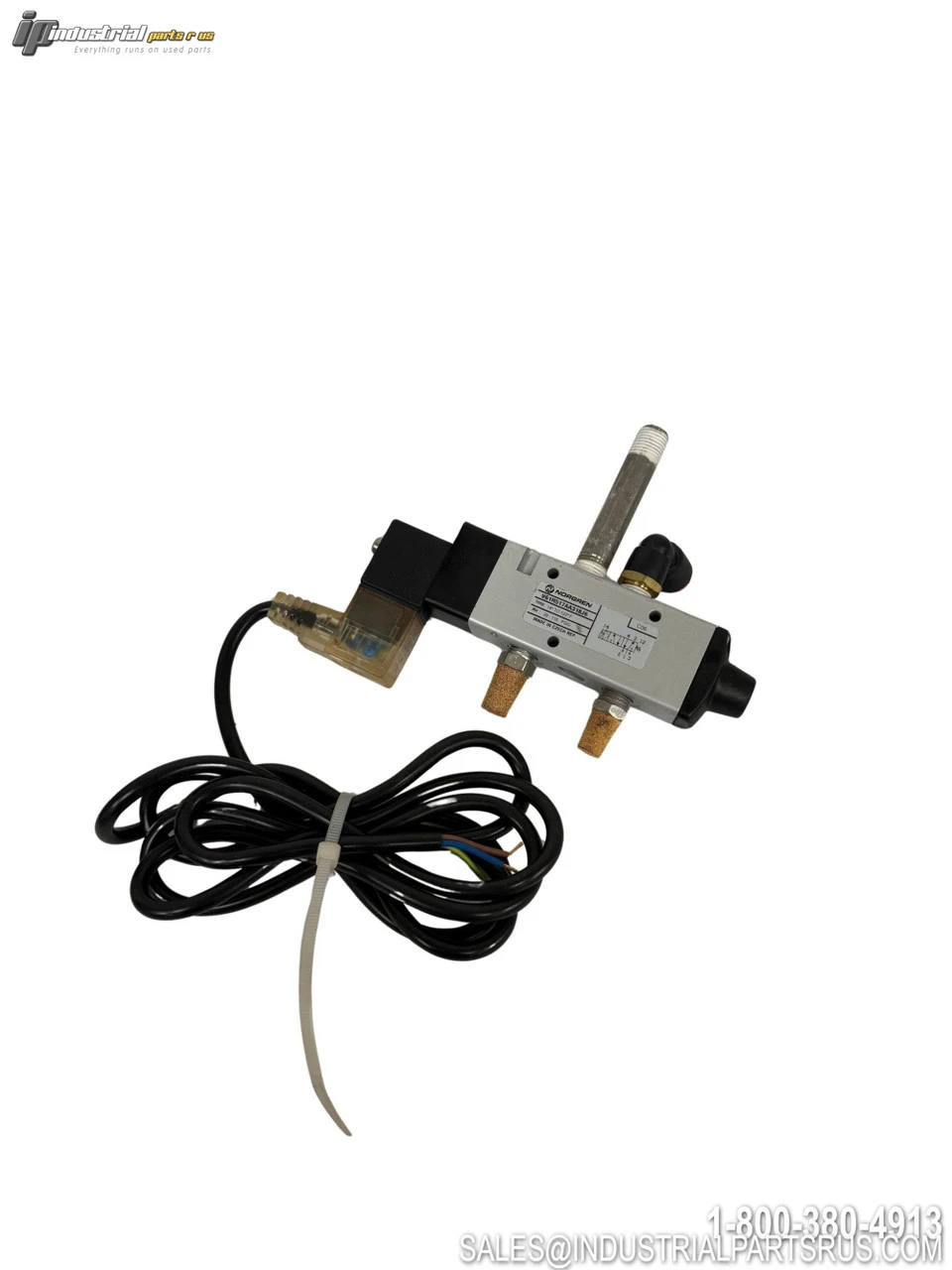

USED NORGREN V61R517AA318J6

The Norgren V61R517AA318J6 is a V61 Series inline directional control spool valve featuring 5/2-way function with single solenoid pilot actuation and spring return. It is ported with 1/4" NPT female threads, operates on 120VAC, and includes a 6-foot molded cable with LED indicator light. The valve belongs to IMI Norgren's V60–V62 family of high-flow directional control valves engineered for compressed air service in industrial automation applications.
Specification
Value
Brand
Norgren (IMI Norgren)
Model / Part Number
V61R517AA318J6
Series
V61 (V60–V62 Family)
Product Type
Solenoid Valve – Inline Directional Control
Valve Function
5/2-Way (5-Port, 2-Position)
Actuation Type
Single Solenoid Pilot Actuated / Spring Return
Manual Override
Non-Locking (Push Only)
Coil Voltage
120VAC
Frequency
60 Hz
Solenoid Power Consumption
2W (Low Power, Continuous Duty)
Port Size
1/4" NPT (Female)
Number of Ports
5
Flow Rate (Cv)
Cv 1.32 (approx. 1300 L/min)
Maximum Operating Pressure
145 PSI (10 bar)
Minimum Operating Pressure
-13 PSI (-0.9 bar)
Pilot Supply
Internal (Fixed)
Medium
Compressed Air (filtered to 50 micron, lubricated or non-lubricated)
Ambient / Media Temperature
+14°F to +122°F (-10°C to +50°C)
Ingress Protection
IP65 (with sealed connector plug)
Connector / Cable Type
6 ft. Molded Cable with Indicator Light, 120VAC (Code 6 – Model 54934-35)
Connector Standard
Industrial Standard 22mm, 2-Pole + PE (EN 175301-803 / DIN 43650 Form B)
Solenoid Rotation
4 x 90° Rotatable
Mounting Position
Optional; preferably horizontal (spring return)
Mounting Style
Inline (individual or manifold)
Body / Housing Material
Aluminum Bar Stock
Seal Material (Static & Dynamic)
NBR (Nitrile)
Spool / Spring Material
Stainless Steel
Screw Material
Zinc Plated
Weight
2.67 lbs
We warranty all items for 30 days from date of purchase.
