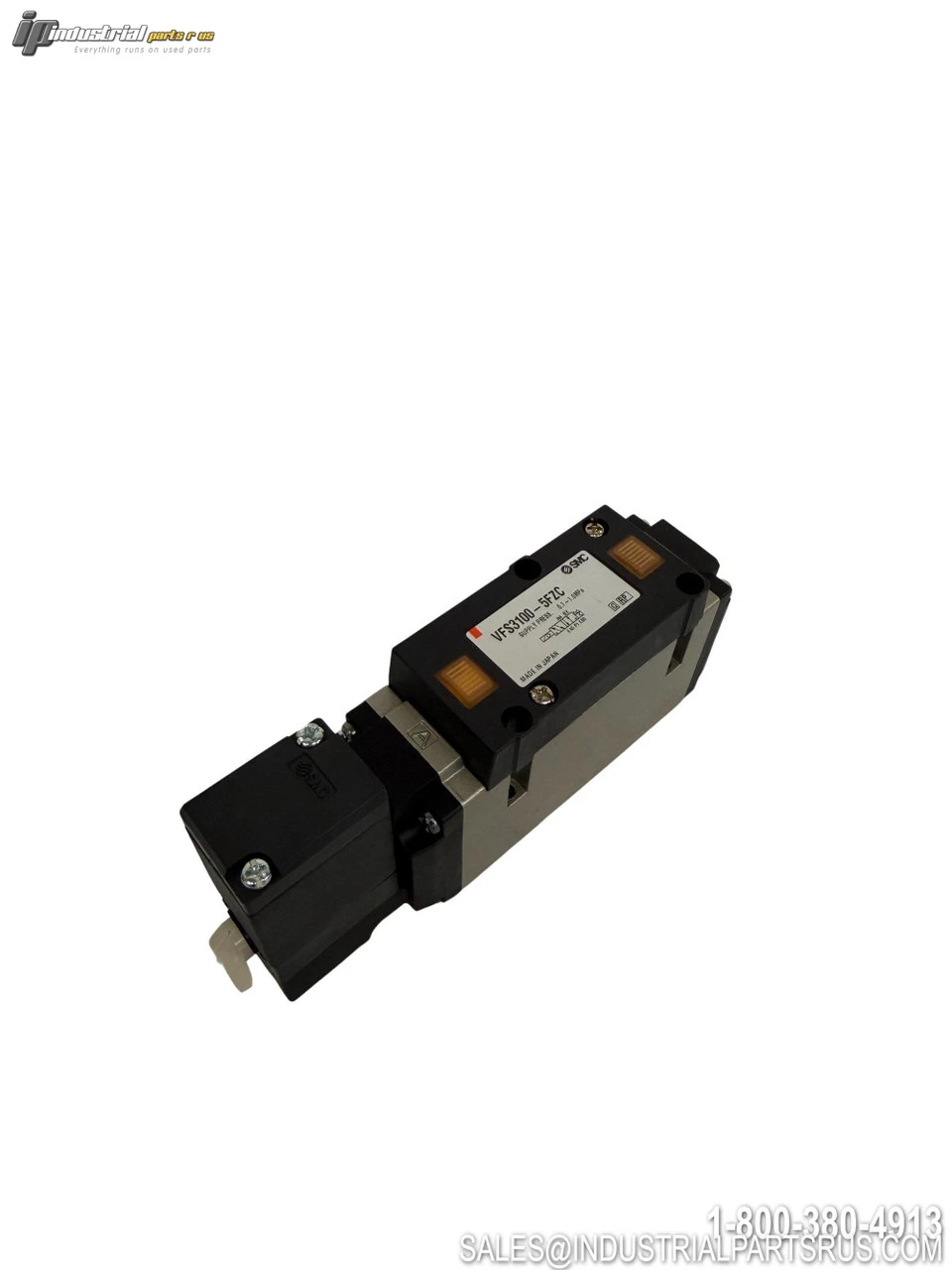

USED SMC VFS3100-5FZC

The SMC VFS3100-5FZC is a 5-port, 2-position single solenoid pilot-operated valve from the VFS3000 Series, featuring a metal seal main valve construction and base-mounted plug-in configuration. It operates on a 24VDC coil and is equipped with a locking-type (lever) manual override and integral light and surge voltage suppressor. The VFS3000 Series is designed for driving medium and large pneumatic cylinders and is compatible with a wide variety of SMC manifold and control unit options.
Specification
Value
Brand
SMC
Model / Part Number
VFS3100-5FZC
Series
VFS3000
Valve Type
5-Port Pilot Operated Solenoid Valve
Number of Ports
5
Number of Positions
2
Actuation Type
2-Position Single (Spring Return)
Coil Voltage
24VDC
Coil Power Consumption
1.8 W (DC)
Electrical Entry / Lead Wire
Plug-In
Surge Suppressor
Yes – Light & Surge Voltage Suppressor
Manual Override
Locking Type (Lever)
Pilot Type
Internal Pilot
Mounting / Piping Type
Base Mounted Plug-In (Side Ported)
Body Option
Standard (No Sub-Plate / No Port Suffix)
Body Material
Die Cast Aluminum
Seal Material
Metal
Port Sizes Available
1/4 and 3/8 (via sub-plate selection)
Thread Type
Rc (PT) — BSPT
Flow Direction
4-Way
Cv Flow Rate (P to A/B)
1.8 Cv
Cv Flow Rate (A/B to R1/R2)
1.6 Cv
Flow Capacity (3/8 port)
C: 5.8 dm³/(s·bar)
Maximum Operating Pressure
9.9 kgf/cm² (145 psi / 1.0 MPa)
Minimum Operating Pressure
0.1 MPa (14.5 psi)
Proof Pressure
218 psi (1.5 MPa)
Ambient & Fluid Temperature
-10 to 60°C (14 to 140°F)
Operating Medium
Air, Inert Gas
Compatible Manifolds
VV5FS3 Series; Compatible with VFS2000/3000/4000 control units
Standards
ISO VG32, JIS B 8375, JIS C 0920, JIS C 4003
We warranty all items for 30 days from date of purchase.
