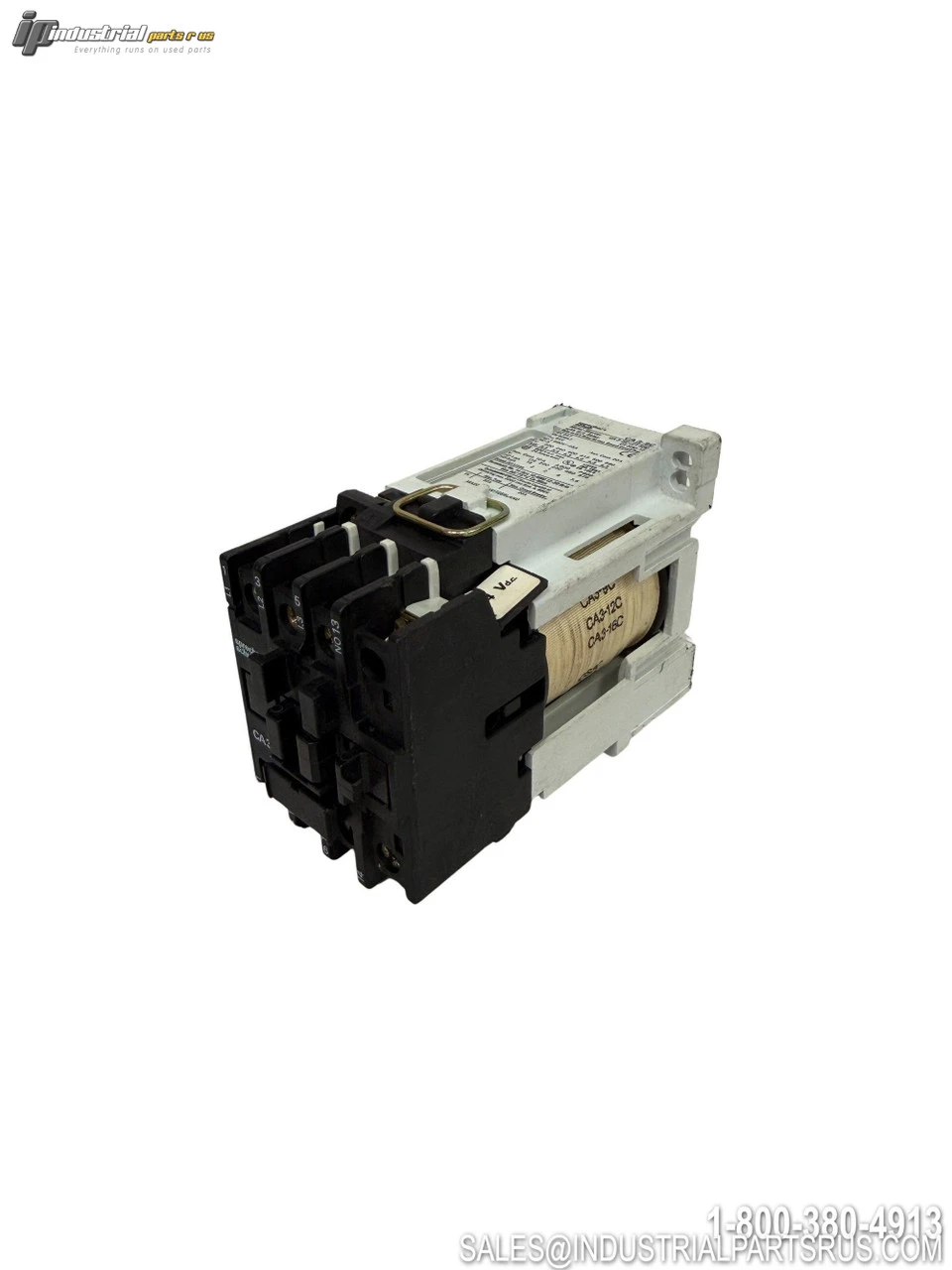

USED SPRECHER+SCHUH CA 3-9-10

The Sprecher+Schuh CA 3-9C is a 3-pole, non-reversing IEC magnetic contactor from the CA3 series, designed for the control and protection of three-phase electric motors. The "C" suffix in the catalog number designates the True DC Coil configuration, which features an enlarged body to accommodate the DC coil assembly. The CA3 series is rated at 9 amps (AC-3) with motor horsepower ratings of 2 HP at 230V and 5 HP at 460V (3-phase), and is UL Listed, CSA Approved, and CE Marked to IEC standards. The CA3 series has been discontinued by the manufacturer and is succeeded by the CA7 series.
Specification
Value
Brand
Sprecher+Schuh
Model / Part Number
CA 3-9C
Product Type
Contactor (Motor Starter)
Series
CA3
Number of Poles (Main)
3
Current Rating (AC-3)
9A
Horsepower @ 230V (3-Phase)
2 HP
Horsepower @ 460V (3-Phase)
5 HP
Coil Type
True DC Coil ("C" suffix)
Coil Voltage
See label (DC coil voltage suffix required; common options: 24VDC, 110VDC, 220VDC)
Current Type
DC (Coil) / AC (Load)
Operation Type
Non-Reversing
Phase
3-Phase
Auxiliary Contact Configuration
See full catalog number suffix (e.g., -10 = 1 NO, -01 = 1 NC, -00 = none)
Certifications
UL Listed, CSA Approved, CE Mark
Standard
IEC 158-1 / IEC 292-1
Mounting Type
DIN Rail / Base Mount
Manufacturer Status
Discontinued (Replaced by CA7 series)
Successor Model
CA7-9C (series)
We warranty all items for 30 days from date of purchase.
