USED 2010 HAAS ST-30M
Overview

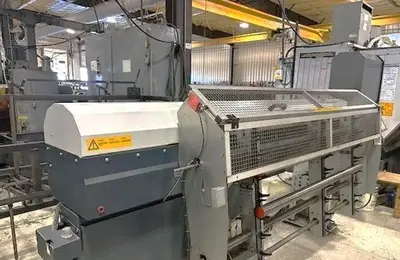

LNS Quick 6 S2 Barfeeder
Full C Axis Spindle Rotation
Live Milling/Drilling Capabilities
Tool Presetter
Parts Catcher

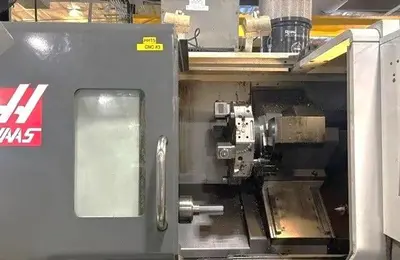

12" 3 Jaw Hydraulic Chuck
Collet Chuck

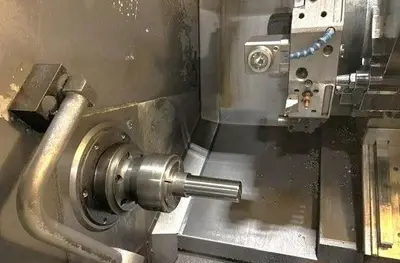

Programmable Tailstock

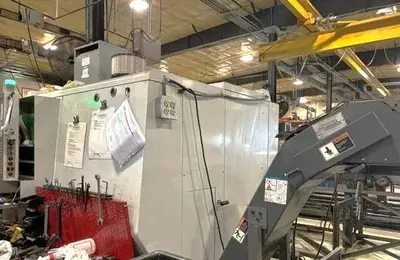

Chip Conveyor
Rigid Tapping
Spindle Orientation
WiFi Camera
High Pressure Coolant
RS 232 Port Interface
All Available Tool Blocks
Live Tool Holders
Coolant System with Tank & Pump
The 2013 Haas ST-30M is a versatile CNC lathe designed for precision and efficiency. Featuring a Haas CNC Control, it is equipped with a 12" 3-Jaw Hydraulic Chuck and offers a maximum swing of 31.5". It supports a maximum turning diameter of 21" and a machining length of 26", with a maximum bar capacity of 3". This machine is suitable for various machining tasks, including milling, thanks to its C axis with .001-degree spindle rotation and tailstock.
Powered by a 30 HP spindle motor, the ST-30M operates between 30 and 3,400 RPM. The machine includes a 12-position turret where all positions can be live, ideal for intricate and demanding production needs. Rapid traverse rates of 945 ipm for both X and Z axes ensure efficient operation. The tailstock body offers 20" travel with an MT #4 taper, adding to its functionality for complex jobs.
Additional features include an LNS barfeed, chip conveyor, parts catcher, and tool presetter to enhance productivity. Measuring 171" x 90" x 83" and weighing in at 12,540 lbs, this machine combines robust performance with compact dimensions, making it a reliable choice for manufacturers seeking a used CNC lathe with advanced capabilities.
Specs

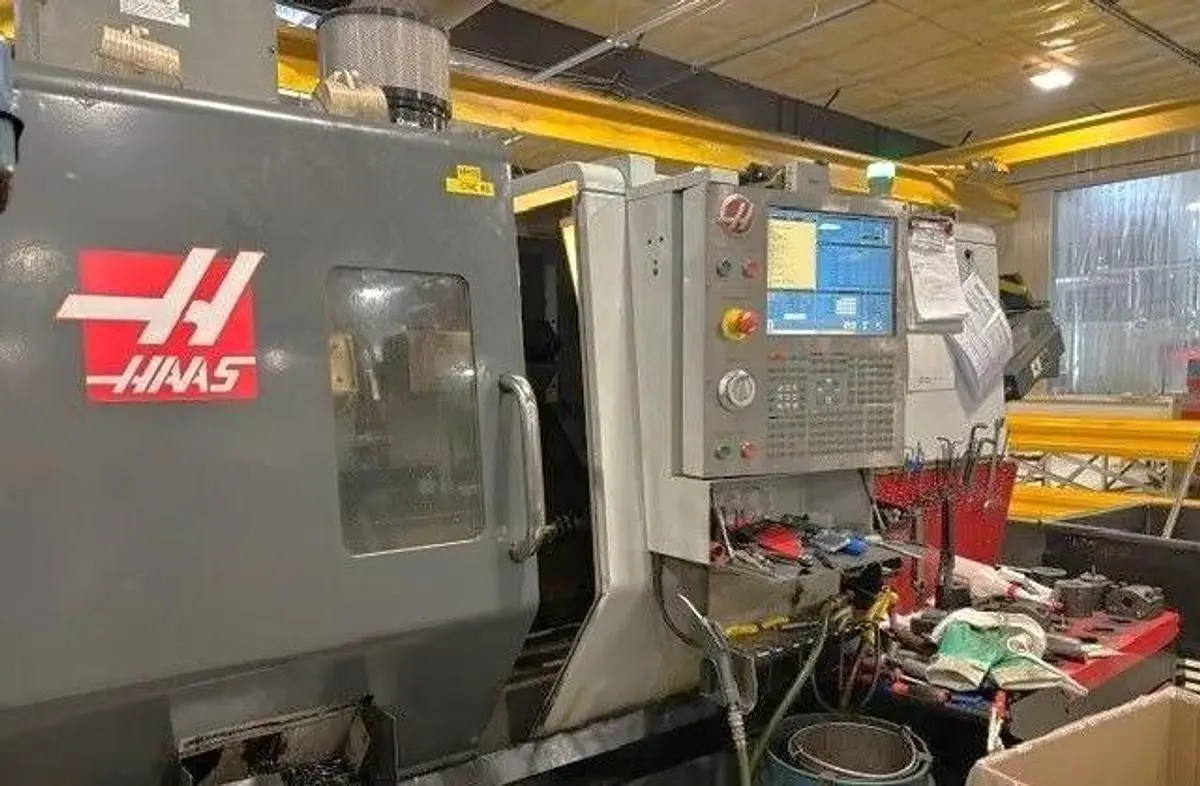

Machine Control: Haas CNC Control
Chuck Size: 12" 3 Jaw Hydraulic
Maximum Swing: 31.5"
Maximum Turning Diameter: 21"
Maximum Machining Length: 26"
Maximum Bar Capacity: 3"
X-Axis Travel: 12.5"
Z-Axis Travel: 26"
C Axis Spindle Rotation: .001 Degree
Spindle Nose / Bore / Bar Capacity: A2-6" / 3.5" / 3"
Spindle Speeds: 30 - 3,400 RPM
Spindle Motor: 30 HP

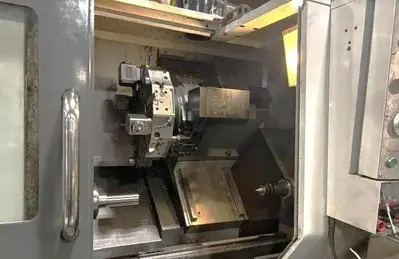

Number of Turret Positions: 12 Position all can be live
Rapid Traverse Rates X/Z: 945 ipm / 945 ipm
Tailstock Body Travel / Taper: 20" / MT #4
Machine Dimensions: 171" x 90" x 83"
Machine Weight: 12,540 lbs.
