USED CNC NEW, INC. Prodigy GT-27

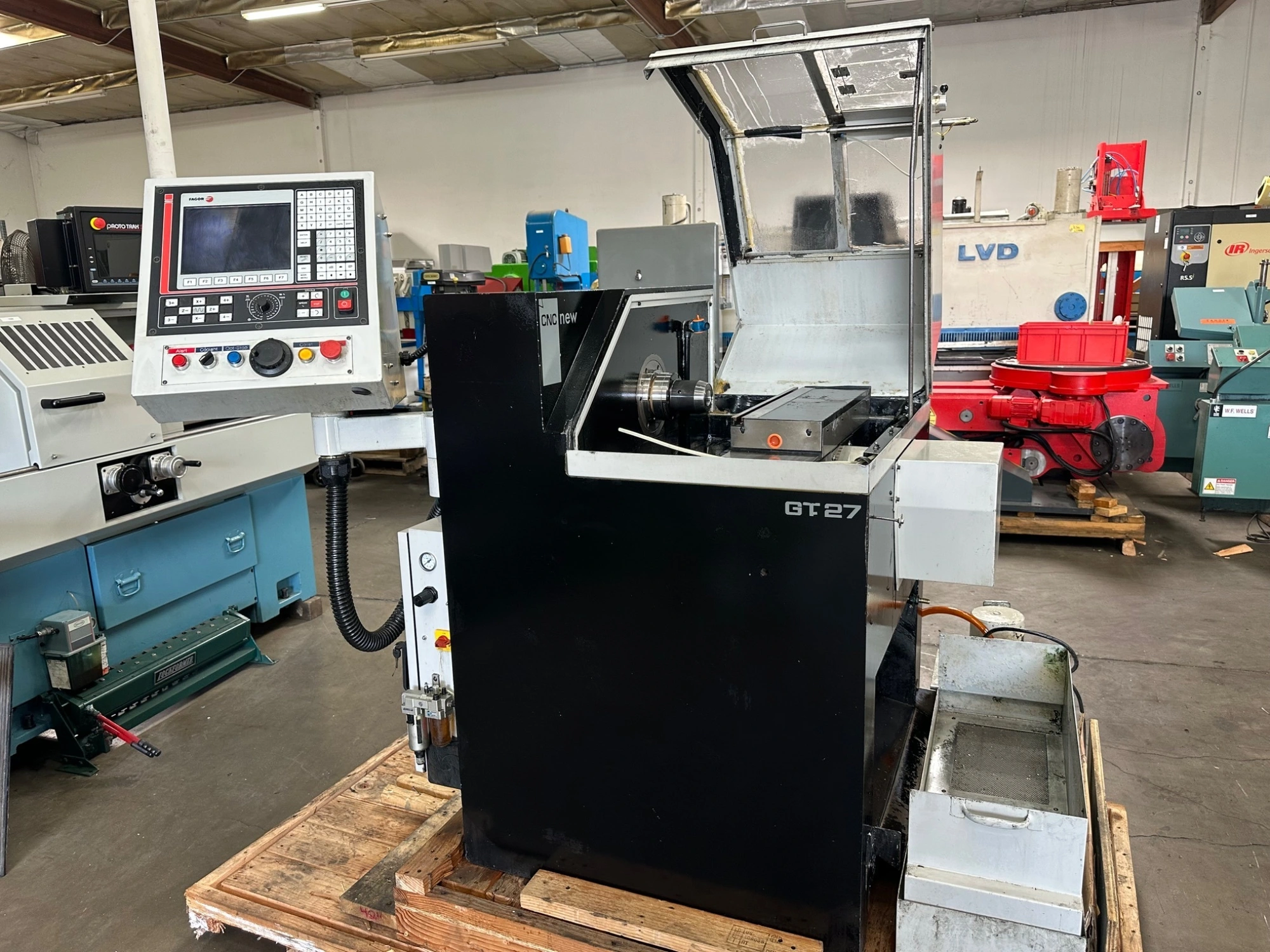

CNC NEW Prodigy GT-27 High Precision CNC Lathe #7794 #1

SPECIFICATIONS:
Spindle Motor – 15 Minute Rate: 7.4 HP (5kW)
Spindle RPM – Variable: 100 to 6,000 RPM
Spindle Bore: 1.0625″ (27mm)
Bar Size – Maximum: 1.0625″ (27mm)
Tool Block Center Height: 0.5″ (12.7mm)
Spindle Nose: 5C
Chuck Size – Maximum: 4″ (101.6mm)
X-Axis Travel – Maximum: 12″ (305mm)
Z-Axis Travel – Maximum: 6.5″ (165mm)
C-Axis Indexing Increment: Indexes at every 0.001 Degrees
Feed Rate: 300 IPM (7.6 m/min)
Rapid Traverse: 800 IPM (20.3 m/min)
Axis Drives: Digital with Brushless Motor
Coolant Pump: 0.25 HP (0.2kW)
Compressed Air: 5SCFM Required (Clean, Dry Air)
Voltage: 208 – 230V
Phase: 3 Phase
Power Requirements: 7.5 KVA
Actual Dimensions: 38″L x 34″W x 47″H (965 x 864 x 1,194mm)
Actual Weight: 3,840 LBS. (1,741kg)

EQUIPPED WITH:

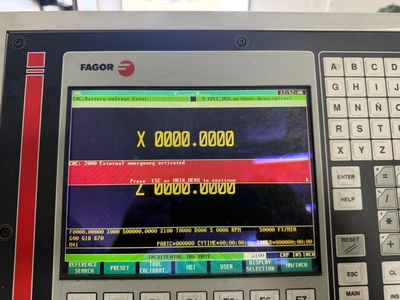

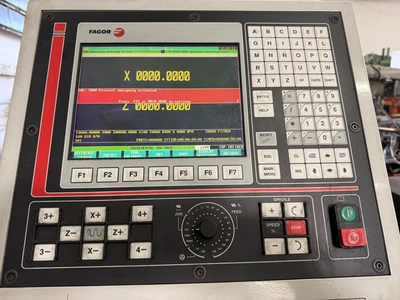

Fagor CNC Controller
