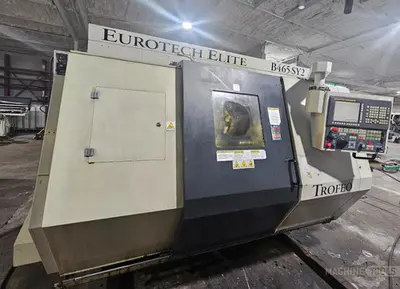

USED 2015 EUROTECH ELITE SY2

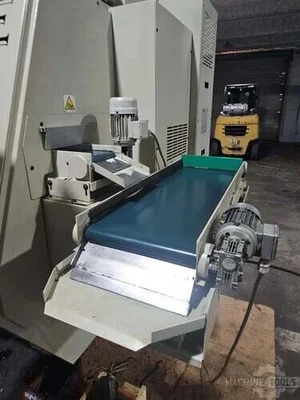

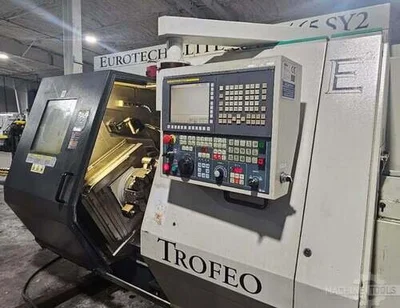

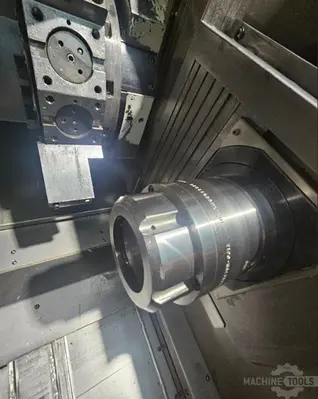

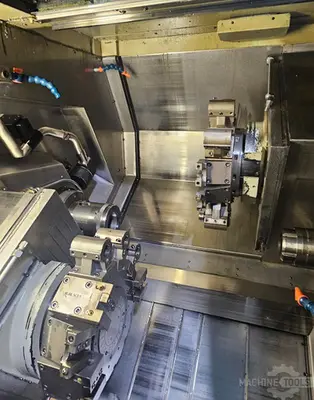

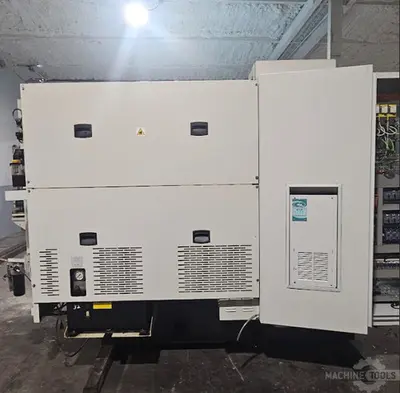

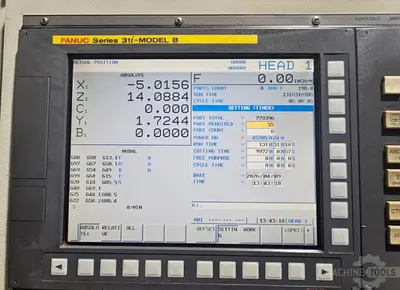

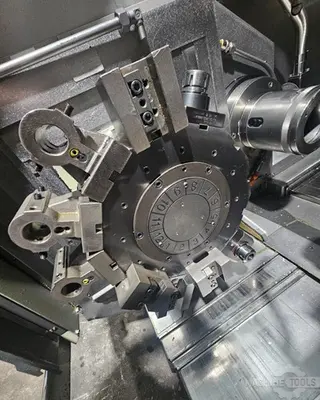

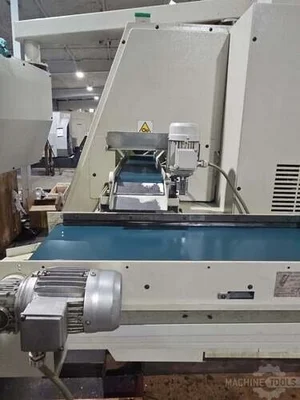

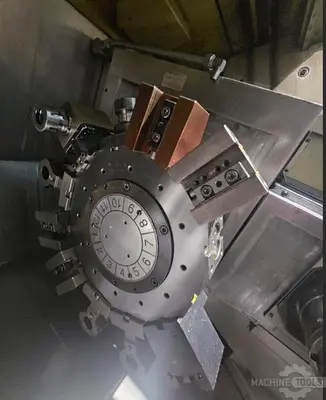

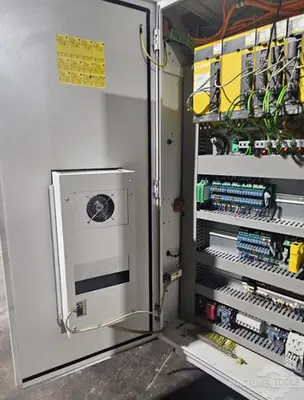

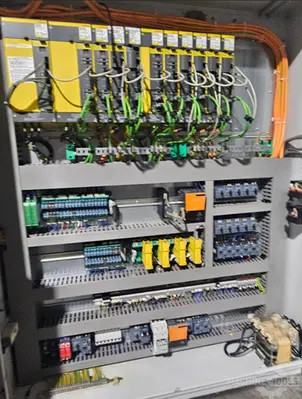

8” X 24.8” CNC Turning Center with Fanuc 3Li Multi-Channel Control, 30° Slant Bed Design, (2) Spindles & (2) Turrets, E - Axis Clear Shift Back Spindle, 11 - Axis Simultaneous Machining + 2 - Axis For CNC Controlled Gantry Parts Catcher, Parts Conveyor, Rigid Tapping, Sub - Spindle Ejector with Air Blow, 12 - Station Upper Turret, 12 - Station Lower Turret, Eurotech Tool Monitoring System, Double Tool Probe, Air Conditioned Electronics Cabinet and 3 - Months Parts Warranty.GENERAL SPECIFICATIONS Machining CapacityMax. Bar Capacity:                        2.75”Max. Turning Diameter:                    8”Max. Swing Y - Axis (Both):                3.8”Chuck WorkMain Spindle Chuck Diameter:                8”Sub -  Spindle Chuck Diameter:                8”Type:                                Hydraulic Max. Speed:                            4,000 RPMMain SpindleDraw Tube Capacity:                    2.75”Spindle Through Bore Capacity:                3.03”Spindle Speed Range (Infinitely Variable):        4,000Spindle Motor:                        35 HPSpindle Nose:                        A2-6Sub - SpindleDrawtube Capacity:                        1.77”Spindle Through Bore Capacity:                2.17”Spindle Speed Range (Infinitely Variable):        5,000Spindle Drive Motor:                    15 HPSpindle Nose:                        A2-5Slide Stroke:                            26.37”Upper TurretNumber of Tool Stations (Main Spindle):             12Z- Axis:                            24.8”X - Axis:                            6.7”Lower TurretNumber of Tools (Main Spindle):                12Z - Axis:                            21.26”X - Axis:                            6.7”Revolving Tool Attachment Upper / Lower TurretNumber of Upper Turret Positions:            12 MaxNumber of Lower Turret Positions:            12 MaxDrive Motor (Upper & Lower Turrets):            AC HP 5Speed Range (Infinitely Variable):                4000Revolving Tool Axis:                        X, C, Z & YY - Axis Strokes (Both):                    +1.97” / -1.57”General InformationVoltage:                            400 V AC, 3 PhAir Supply:                            80 PSI @ 4CFMAmperage Draw:                        120 AmpMachine DimensionsWidth:                                85”Height:                            87”Length with Chip Conveyor:                179”Machine Weight w/ Chip Conveyor:            16,314 LbsINCLUDES: Fanuc 3Li Multi-Channel Control, 30° Slant Bed Design, (2) Spindles & (2) Turrets, E - Axis Clear Shift Back Spindle, 11 - Axis Simultaneous Machining + 2 - Axis For CNC Controlled Gantry Parts Catcher, Parts Conveyor, Rigid Tapping, Sub - Spindle Ejector with Air Blow, 12 - Station Upper Turret, 12 - Station Lower Turret, Eurotech Tool Monitoring System, Double Tool Probe, Air Conditioned Electronics Cabinet and 3 - Months Parts Warranty.
