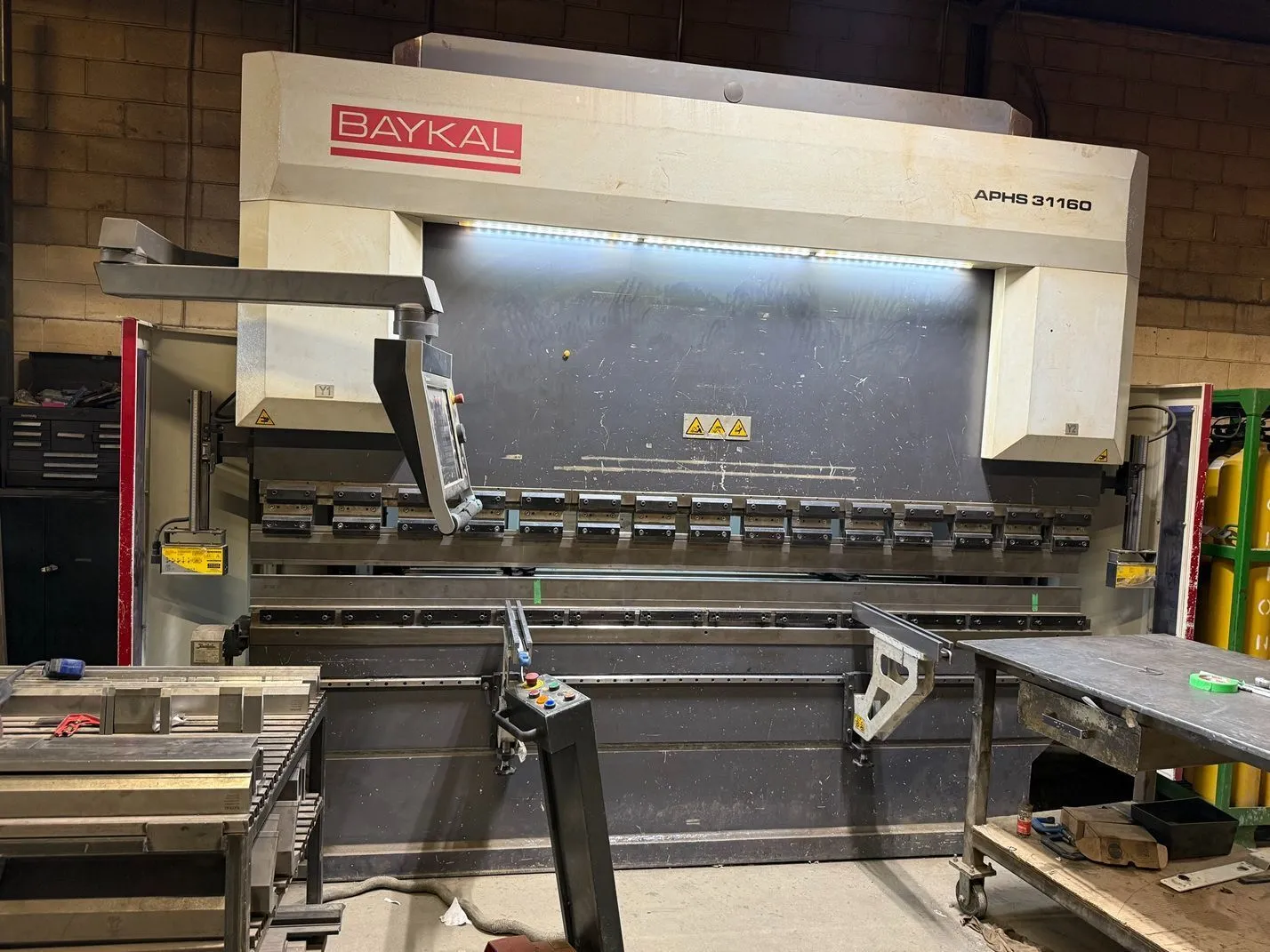

Baykal CNC Hydraulic Press Brake 10' X 160 Tons
Model: APHS 31160
Year: April 2019
Control: Delem DA-69T
| Tonnage | 160 T | 145.15 t |
| Type | 'HYD' | 'HYD' |
| Overall Length | 122" | 3.1 m |
| Stroke | 10" | 254 mm |
| # Axis | 4 | 4 |
| Control | CNC (Delem) | CNC (Delem) |
| Dimensions | 11.6' x 6' x 9'2" | 11.6' x 6' x 9'2" |
| Weight | 21,400 Lbs | 21,400 Lbs |
Baykal CNC Hydraulic Press Brake
Model: APHS 31160
Year: April 2019
Control: Delem DA-69T
Technical Specification: (subject to verification)
Capacity :160 Tons
Bending length: 3100 mm (10’2”)
Main Voltage: 575Volt, 60 Hz, 3 Phase
Max stroke : 260mm
Top Tool weight :60kg
Bottom Tool weight:100 kg
Dimensions & Weights
Length: 3550mm
Width : 1800 mm
Height: 2800 mm
Machine weight: 9700 kg
