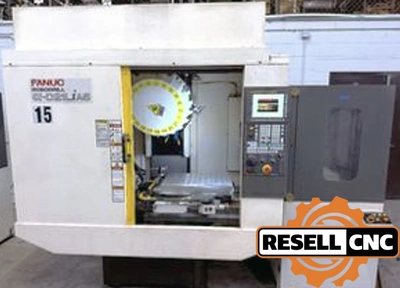

USED 2015 Fanuc Robodrill Alpha-D21LiA5

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 10.4" Color LCD Display

RS 232 Port Interface

Chip/Coolant Pan w/ Pump

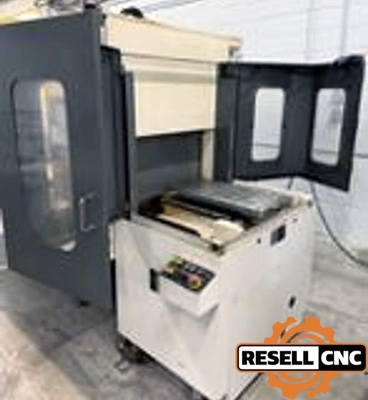

Additional Machine Specs: Midaco 2 Pallet Changer System

Renishaw TS-27R Tool Measurement Probe

B Axis: false
C Axis: false
Control Make Model: Fanuc 31i-B5
Control Options: Coordinate Rotation and Scaling, Rigid Tapping, Spindle Orientation, USB, Macros
Coolant Type S: Flood Coolant
Cutting Feed Rate: 1182
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: All Available Manuals
Max Table Pallet Load: 396.0
Max Tool Diameter: 3.15
Max Tool Length: 9.85
Max Tool Weight: 6.6
Number Of Pallets: 2.0
Programmable Tailstock: false
Rapid Traverse: 2127
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 18.7
Spindle Speed: 24000.0
Spindle Taper Other: Big Plus
Spindle Taper Type: BT30
Sub Spindle: false
Tailstock: false
Tool Changer Type: Arm
Tool Change Time: 1.1
Tool Magazine Capacity: 21.0
Twin Turret: false
Vertical Table Pallet Size: 27.58" x 15.37
X Travel: 27.56
Y Axis: false
Y Travel: 15.76
Z Travel: 13.0
