NEW 2024 MEKA MVI 90L

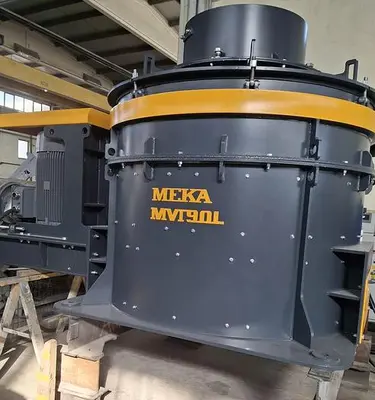

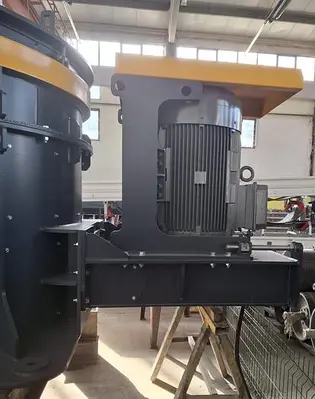

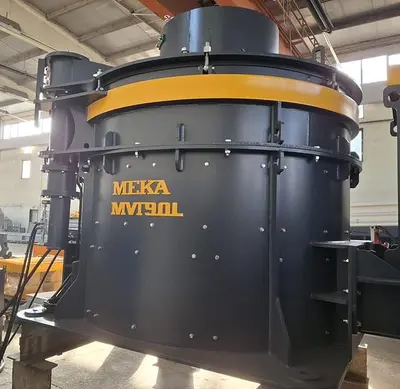

Vertical Impact Crusher Meka MVI 90L ROR with 400 HP electric motor. Other crusher configurations (ROS or SOS) in stock.

The MEKA MVI90L Vertical Shaft Impact Crusher is a heavy-duty VSI designed for tertiary and final-stage crushing applications where product shape, gradation, and production of high-quality finished aggregates are priorities. Equipped with a large 900 mm rotor and 400 HP drive, the MVI90L provides the high rotor speed and impact energy required for efficient reduction and shaping of material.
The supplied GA drawing confirms the 900 mm rotor, 1,200 RPM rotor speed, 50 mm maximum feed size, and approximately 23,160 lb machine weight. MVI 90L VSI GA Drawing The drawing shows a 335 HP power requirement; for this description, I have used the 400 HP drive specification you provided instead. The drawing does not provide a rated production capacity, so no tons-per-hour figure has been included.
The MEKA MVI90L is particularly well suited as the final crushing stage in an aggregates plant where producing a cubical, consistent finished product is as important as reduction. Its large 900 mm rotor and 400 HP drive provide substantial crushing and shaping capability for manufactured sand, specification aggregates, and other final-stage crushing applications.
Franklin Rock & Recycle provides crushing, screening and conveying equipment throughout the Midwest and Mid-South, with equipment sales, rentals, parts and service support throughout Indiana, Kentucky, Tennessee and Alabama.
