McCloskey MWS CSP 20. Call us for more information.

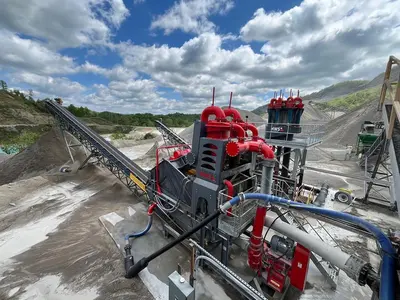

McCloskey Washing Systems CSP 20 Compact Sand Plant
The McCloskey Washing Systems CSP 20 Compact Sand Plant combines washing, classification and dewatering in a compact, modular package. Designed to handle up to 200 US tons per hour of feed, the CSP 20 provides high-capacity sand processing for manufactured and natural sand applications. Available in one-grade and two-grade configurations, it allows producers to select the arrangement that suits their finished sand requirements.
The plant’s slurry pumps feed hydrocyclones to separate and recover sand before discharging it onto the dewatering screen. This integrated process removes unwanted fines while recovering valuable sand and producing a drier finished product.
Technical Features
6' × 14' dewatering screen with electric vibrating motors
60 Hz screen drive: two 5.9 HP (4.4 kW) vibrating motors
CSP 20-1 single-grade model: MR250E slurry pump, size 250/200, with a 60.3 HP (45 kW) electric motor and twin MHC500 hydrocyclones, each approximately 19.7 inches (500 mm) in diameter
CSP 20-2 two-grade model: two MR200E slurry pumps, size 200/150, each driven by a 40.2 HP (30 kW) electric motor; one MHC650 cyclone and one MHC500 cyclone
Maximum 60 Hz power requirement: 71.5 HP (53.3 kW) for the CSP 20-1; 91.6 HP (68.3 kW) for the CSP 20-2
Approximate assembled dimensions, CSP 20-1: 26'8" long × 12'1" wide × 20'9" high
Approximate assembled dimensions, CSP 20-2: 30'1" long × 12'1" wide × 22'7" high
Modular construction with fast setup and access for maintenance
Raised chassis for washdown
Containerized transport in one 40-foot open-top container
Options include electric control panel with stacker control, dewatering screen spray bars and dry-feed boiler box; double wash is available on two-grade variants
The integrated dewatering screen produces a “drip-free” finished sand product that is significantly drier than material discharged from traditional sand screws or fine material washers. This improves stockpiling, loading and transportation while reducing the free water carried into the finished product.
The CSP 20 can be integrated into a new plant or incorporated into an existing washing circuit. Its compact footprint and choice of one-grade or two-grade configurations provide a practical solution for producers seeking high sand recovery and a drier finished product.
Franklin Rock & Recycle is the exclusive distributor for sales and rentals of MWS (McCloskey Washing Systems) equipment in Indiana, Kentucky, Tennessee and Alabama. Franklin Rock & Recycle provides washing, classification and dewatering equipment, parts and service support throughout the Midwest and Mid-South.
