NEW 2024 MEKA MFWS0976

36" x 25' Meka Single fine material washer. 3 Units available.

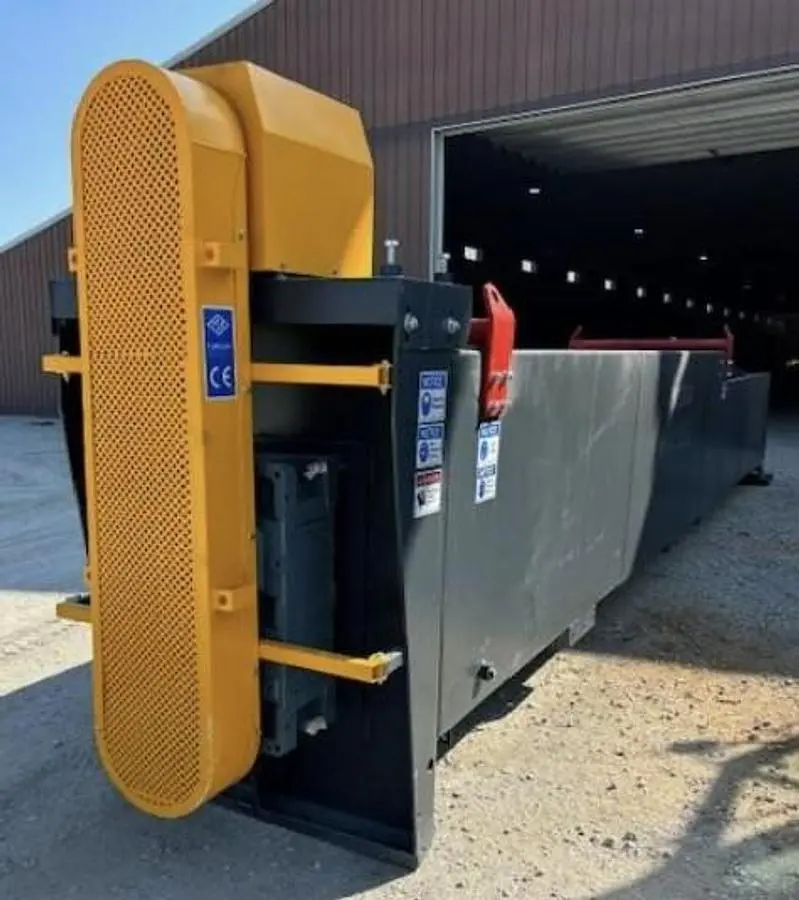

MEKA MFW 3625S Single Screw Fine Material Washer
The MEKA MFW 3625S is a heavy-duty single sand screw for washing, classifying and dewatering natural sand, manufactured sand and crushed stone fines. It receives a sand and water slurry from a wet screen plant, removes dirt and silt and captures a clean sand product.
Key Features and Specifications

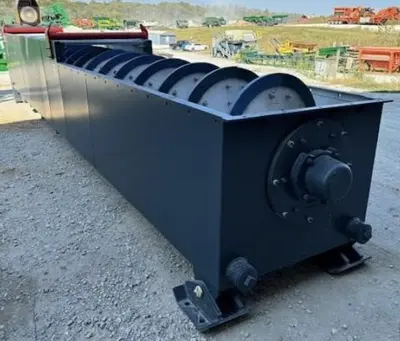

Single 36" diameter screw in a 25-foot heavy-walled tub.
Capacity of approximately 25–100 US tons per hour, depending on feed gradation, silt and clay content, water volume and application.
20 HP (15 kW) drive.
Screw operating speed of 10–21 RPM.
Maximum material size of approximately ⅜".
Wide settling tank with adjustable overflow weirs.
Inclined screw conveys settled sand upward while excess water drains back.
Heavy-duty gearbox and oversized bearings.
Wear-resistant polyurethane or cast screw liners.
Approximate weight of 14,333 pounds.
The MFW 3625S provides a straightforward solution for sand washing circuits requiring a single screw.
Franklin Rock and Recycle is a distributor for MEKA crushing and screening equipment, providing equipment sales, application support, parts, and service.
