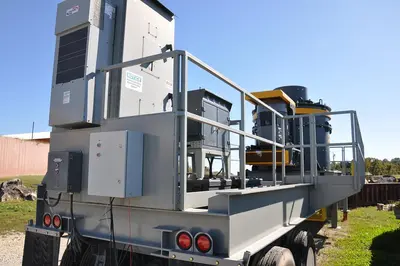

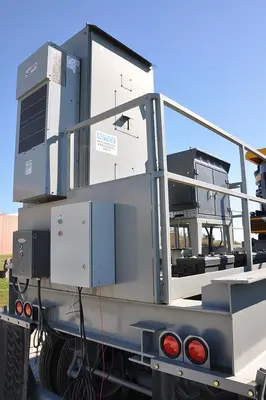

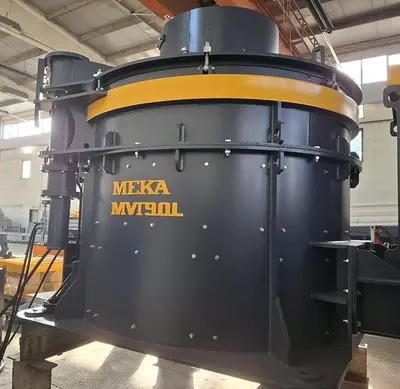

Vertical Impact Crusher Meka MVI 90L ROR with 400 HP electric motor. Other crusher configurations (ROS or SOS) in stock. 400 HP VFD Starter in Waterproof cabinet also in stock and available.

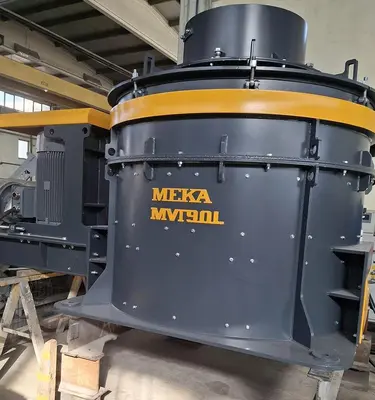

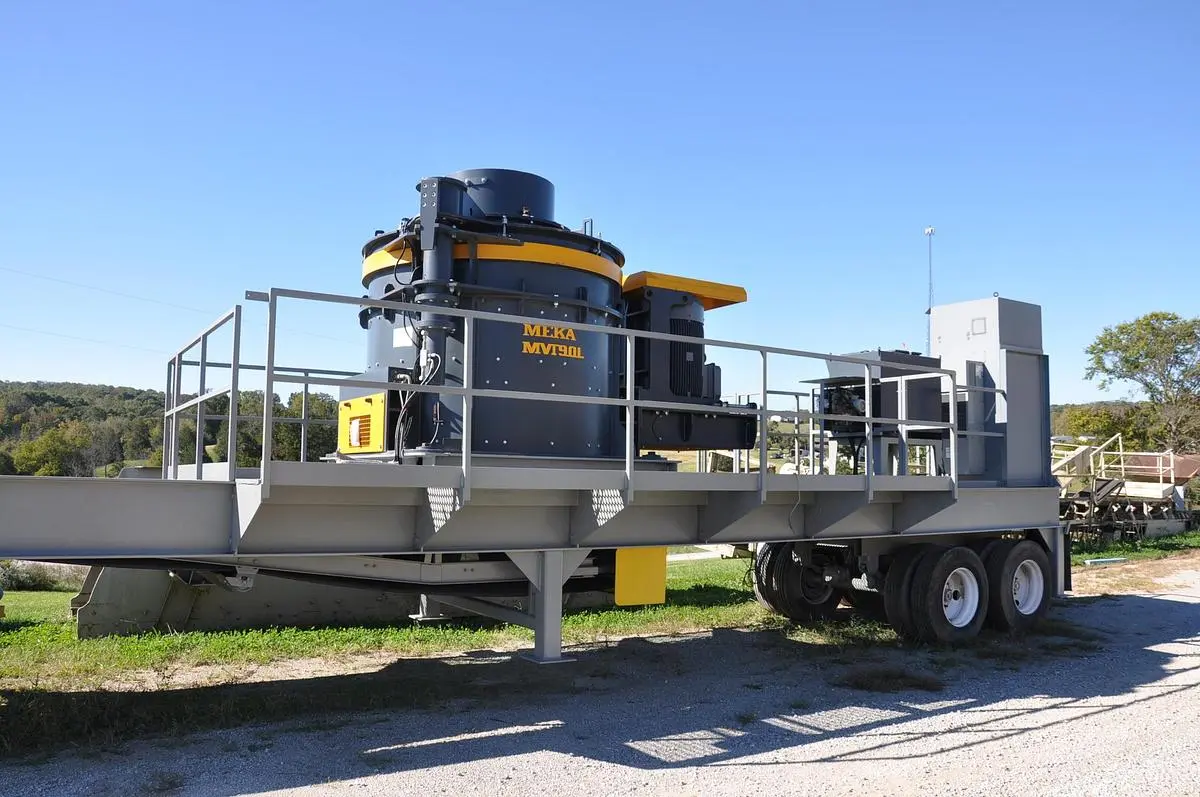

MEKA MVI90L Wheeled Portable Vertical Shaft Impact Crusher Plant
The MEKA MVI90L Wheeled Portable Vertical Shaft Impact Crusher Plant is a heavy-duty VSI crushing and shaping plant designed for tertiary and final-stage applications where product shape, gradation, and production of high-quality finished aggregates are priorities. Built around a 35.4" (900 mm) rotor with a 400 HP electric drive, the MVI90L is mounted on a road-portable tandem-axle chassis and incorporates an integrated front-discharge product conveyor, operator's platform, and catwalk into a complete portable crushing package.
Heavy-duty vertical shaft impact crusher (VSI)

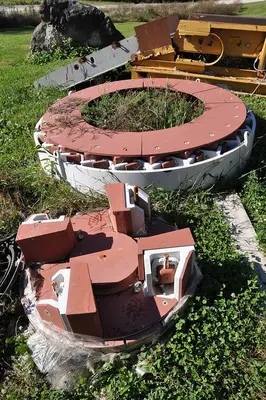

Large 35.4" (900 mm) rotor

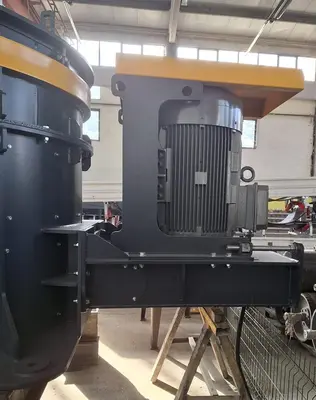

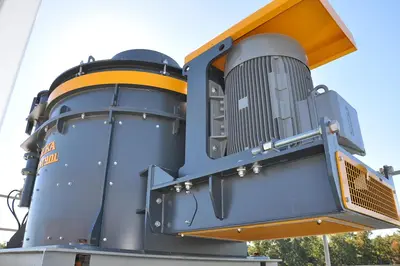

400 HP electric drive
1,200 RPM rotor speed
Maximum feed size of approximately 2" (50 mm)
Crusher weight of approximately 23,160 lbs.
Designed primarily for tertiary and final-stage crushing
Excellent choice where cubical product shape and finished aggregate quality are important
Well suited for producing manufactured sand and specification aggregates
Provides additional reduction and shaping after primary and secondary crushing stages
Particularly useful for improving the shape of material coming from a cone crusher or other secondary crusher
High-speed VSI crushing action is well suited for reducing and shaping smaller feed material into consistent finished products
Road-portable tandem-axle chassis provides a complete wheeled portable crushing configuration

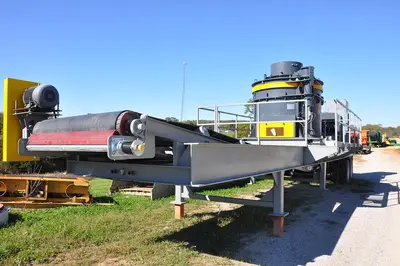

Integrated front-discharge product conveyor efficiently carries finished material away from the VSI

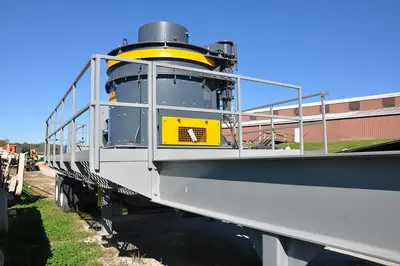

Operator's platform and catwalk provide convenient access to the crusher and major plant components
Easily incorporated into a portable crushing and screening spread
Heavy-duty construction designed for demanding crushed stone and aggregates applications
The MEKA MVI90L is particularly well suited as the final crushing and shaping stage in a portable aggregates plant where producing a cubical, consistent finished product is as important as reduction. Its large 35.4" (900 mm) rotor and 400 HP drive provide substantial crushing and shaping capability, while the tandem-axle chassis, integrated front-discharge conveyor, operator's platform, and catwalk make the MVI90L a complete portable solution for manufactured sand, specification aggregates, and other final-stage crushing applications.
