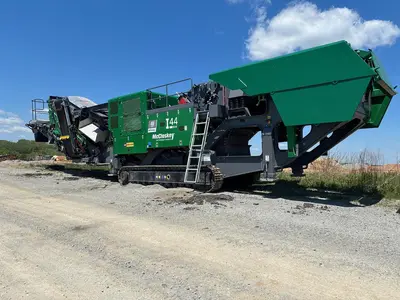

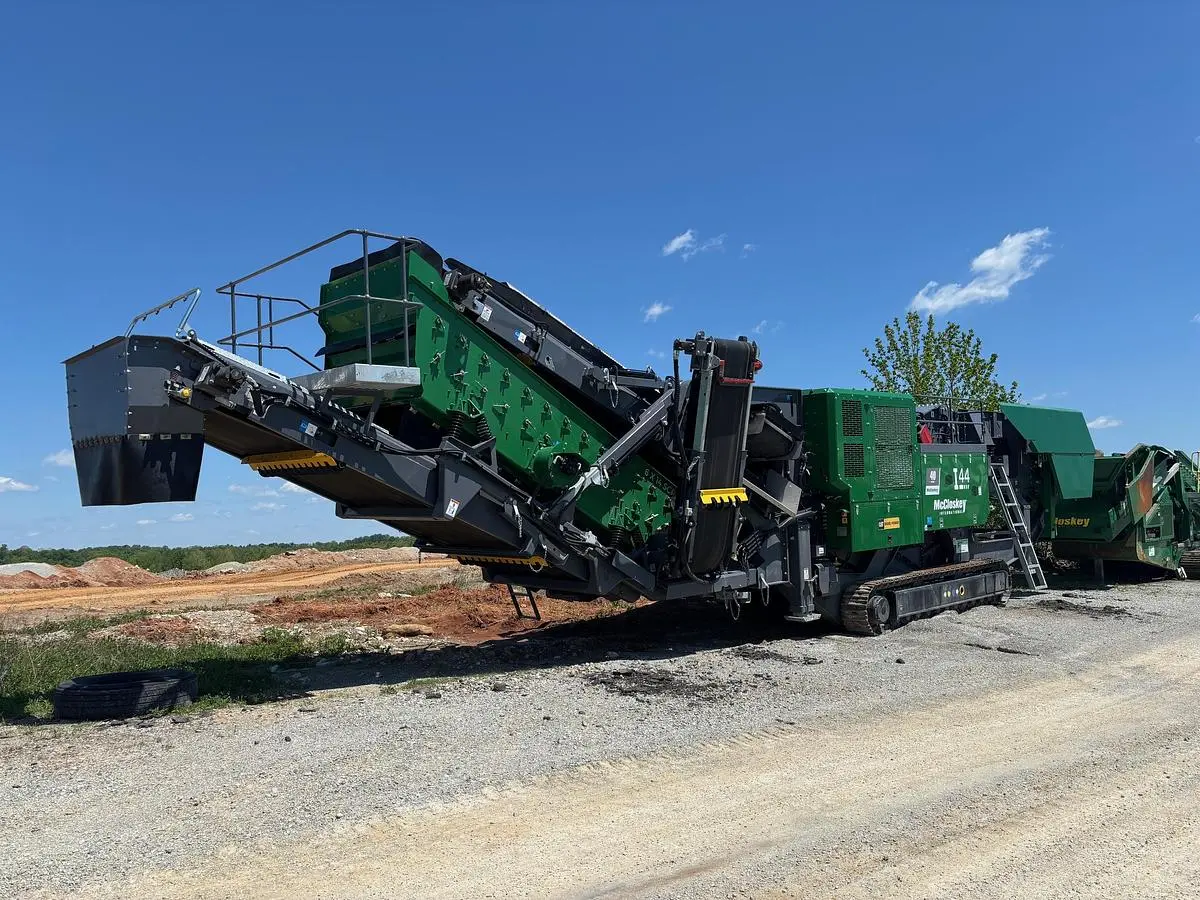

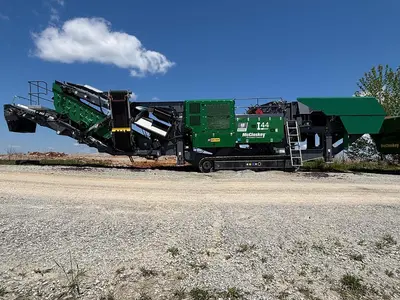

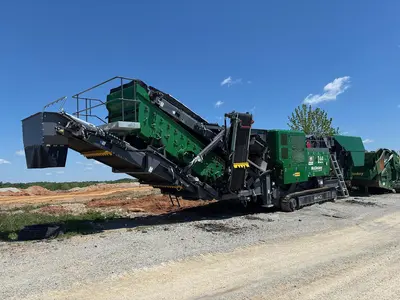

NEW 2026 MCCLOSKEY I44RV3HD

NEW I44RV3 McCloskey Impactor with 2 deck screen and magnet. CAT engine. Arrived August 2026

The McCloskey I44v3HDR is a heavy-duty, high-production track-mounted impact crushing and screening plant designed for aggregate production, concrete and asphalt recycling, and demanding construction and demolition applications. The integrated screening and recirculating system allows the I44v3HDR to crush, size, and recirculate material with a single portable plant.
Crusher
·       Heavy-duty 44.3" wide x 41.3" diameter impactor
·       Large feed opening designed to accept substantial feed material and maintain high production rates
·       4-bar impact rotor provides aggressive crushing action and high reduction ratios
·       Produces a well-shaped, cubical finished product
·       Direct-drive crusher efficiently transfers engine horsepower to the impactor
·       Heavy-duty construction designed for demanding aggregate and recycling applications
·       Multiple blow-bar configurations available to match different materials and applications
·       Adjustable crusher settings allow operators to control reduction and finished product size
Feeder & Pre-Screen
·       Heavy-duty feed hopper designed for continuous production
·       Integrated vibrating feeder provides consistent material delivery to the crusher
·       Double-deck grizzly pre-screen removes fines before they enter the crushing chamber
·       Pre-screening reduces unnecessary crusher wear and allows the impactor to concentrate on oversized material
·       Improved removal of fines can increase overall plant production and crushing efficiency
·       Hydraulic hopper and folding components simplify setup and transportation
Screening & Recirculation
·       Integrated 14' x 6' two-deck high-energy finishing screen
·       Two-deck screen allows the plant to produce two accurately sized finished products plus an oversize product simultaneously
·       Bottom-deck material is discharged as the first finished product
·       Material retained between the top and bottom decks is discharged as the second finished product
·       Oversize material retained on the top deck can be recirculated back to the impact crusher for additional reduction
·       Closed-circuit operation allows the oversize material to be continuously reprocessed until it meets the desired finished-product specification
·       Swing-out return conveyor can be positioned for recirculation or moved approximately 90° to discharge the oversize material as a separate stockpile
·       When operated in open circuit, the plant can therefore produce three separate products simultaneously: two screened finished products plus an oversize product
·       Integrated screening eliminates the need for a separate finishing screen in many applications
·       Crushing, screening, product sizing, and recirculation are combined into a single self-contained portable plant
Power & Mobility
·       Diesel-powered, track-mounted design for jobsite mobility
·       Approximately 350–360 HP to the crusher, depending upon engine configuration
·       Direct crusher drive provides efficient power transfer to the impactor
·       Heavy-duty tracked undercarriage allows the machine to be repositioned around the jobsite without support equipment
·       Hydraulic folding conveyors and hopper components reduce setup time between jobs
·       Designed for efficient transport and rapid deployment
·       Open chassis layout provides good access to major components for inspection, service, and maintenance
Applications
·       The I44v3HDR is particularly well suited for:
·       Limestone and other quarried aggregate
·       Recycled concrete
·       Recycled asphalt
·       Construction and demolition material
·       Road base and sub-base production
·       Producing multiple specification-sized aggregates from a single plant
·       Applications requiring a high-quality cubical finished product
·       Contractors requiring crushing, screening, and closed-circuit recirculation in one portable machine
Key Advantages
·       High-production impact crushing
·       Heavy-duty construction for demanding applications
·       Integrated optional pre-screen removes fines ahead of the crusher
·       Large 14' x 6' two-deck finishing screen
·       Produces two finished screened products plus an oversize product
·       Oversize can either be stockpiled as a third product or recirculated back through the crusher
·       Closed-circuit crushing provides consistent control of maximum finished-product size
·       Swing-out recirculating conveyor provides additional operating flexibility
·       Track mobility for easy movement around the jobsite
·       Combines crushing, screening, sizing, and recirculation into one compact plant
·       Designed to minimize additional equipment, material handling, and overall operating requirements
Comparison to Powerscreen Trakpactor 320SR
·       Significantly larger finishing screen — the I44v3HDR uses a 14' x 6' two-deck finishing screen compared with an 11' x 5' two-deck post-screen on the Trakpactor 320SR.
·       Approximately 53% more nominal screening area per deck — 84 sq. ft. per deck on the McCloskey versus approximately 55 sq. ft. per deck on the Powerscreen. The additional screen area can be especially valuable when producing smaller products or handling higher circulating loads. A larger screen means more tons per hour for every hour of operation.
·       The McCloskey has multiple finished products. The larger two-deck McCloskey finishing screen is configured to produce two screened finished products plus an oversize product simultaneously.
·       Flexible oversize handling — the I44v3HDR swing-out radial return conveyor allows oversize to be returned to the crusher in closed circuit or swung out to stockpile oversize as a separate product.
·       Strong integrated crushing and screening package — the larger finishing screen gives the I44v3HDR more screening capacity behind a crusher of a similar general size class, making the plant particularly attractive where the screen can become the production bottleneck. The McCloskey unit is a well-balanced machine.
·       Open chassis service access — McCloskey’s open chassis design is a major advantage for ease of maintenance, providing straightforward access to major components.
