USED 2016 CEFLA QEG PANEL FLIPPER

Manufacturer: Cefla Finishing
Model: QEG
Serial Number: C06189_18A
Condition: Used – Good Operating Condition
Machine Type: Automatic Panel Flipper / Turn Over Unit

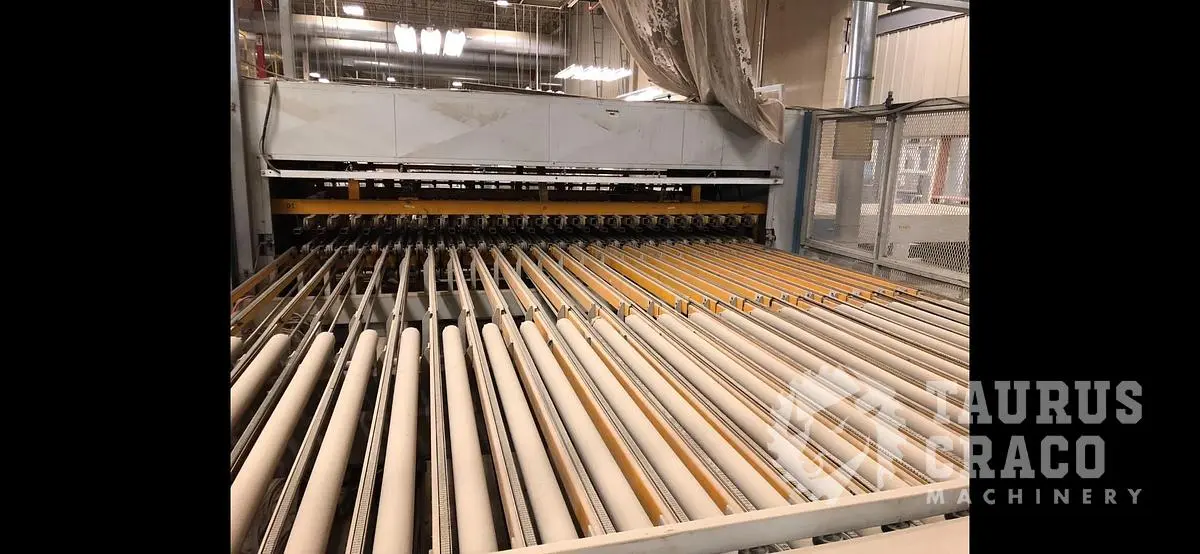

The Cefla QEG is a heavy-duty automatic panel flipper designed for integration into finishing, sanding, coating, and material handling lines. Combining transfer conveyor and turnover functions into a single machine, the QEG automatically rotates panels 180° during production, allowing both faces of a workpiece to be processed without manual handling.

Designed for continuous production environments, the system utilizes pneumatic clamping and conveyorized transport to safely flip and transfer panels while maintaining production flow. The machine is ideally suited for cabinet manufacturing, furniture production, architectural millwork, finishing operations, and panel processing applications.
Automatic 180° panel turnover system
Integrated transfer conveyor
Pneumatic panel clamping mechanism
Variable-speed operation
Continuous production design
Designed for finishing and coating lines
Heavy-duty industrial construction
European-built Cefla equipment
Panel Thickness: 5 mm – 70 mm (0.20" – 2.75")
Maximum Panel Length: 3,500 mm (137.8")
Maximum Panel Width: 1,450 mm (57.1")

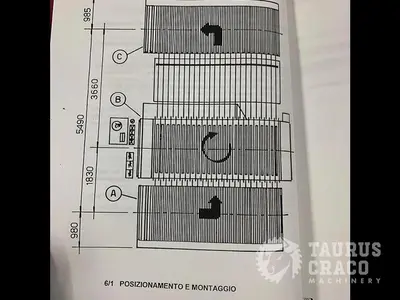

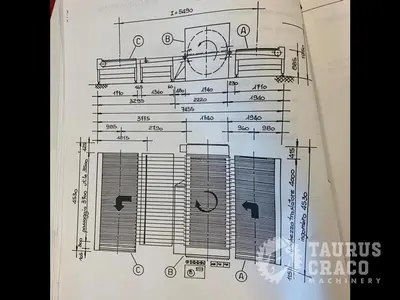

Center distance between infeed and outfeed: 3,660 mm (144")
Belt spacing / hold-down spacing: 140 mm (5.5")
Minimum working height: 895 mm (35.2")
5 – 25 m/min
Approx. 16 – 82 FPM
Integrated transfer and turnover system
Automatic 180° panel rotation
Suitable for two-sided finishing operations
Continuous conveyorized material handling
Air Consumption:
30 Nl per cycle
Operating Pressure:
6 Bar (90 PSI)
Voltage: 600V
Frequency: 60 Hz
Phase: 3 Phase + Ground (3+PE)
Total Installed Power: 16.5 kW
Full Load Current: 38 Amps
Largest Motor: 3 kW
Largest Motor Current: 5.5 Amps
Used – Good Operating Condition
The machine appears complete and configured for continued production use. Its integrated transfer conveyor and automatic turnover system provide an efficient solution for facilities looking to automate panel handling and reduce manual labor.
The Cefla QEG 180° Panel Flipper is a purpose-built automation solution designed to improve throughput and reduce manual handling in panel processing and finishing environments. By automatically rotating panels within the production line, the machine enables efficient two-sided processing while maintaining consistent workflow and production efficiency. The QEG remains a valuable addition to furniture, cabinet, and finishing operations looking to increase automation and material handling capacity.
