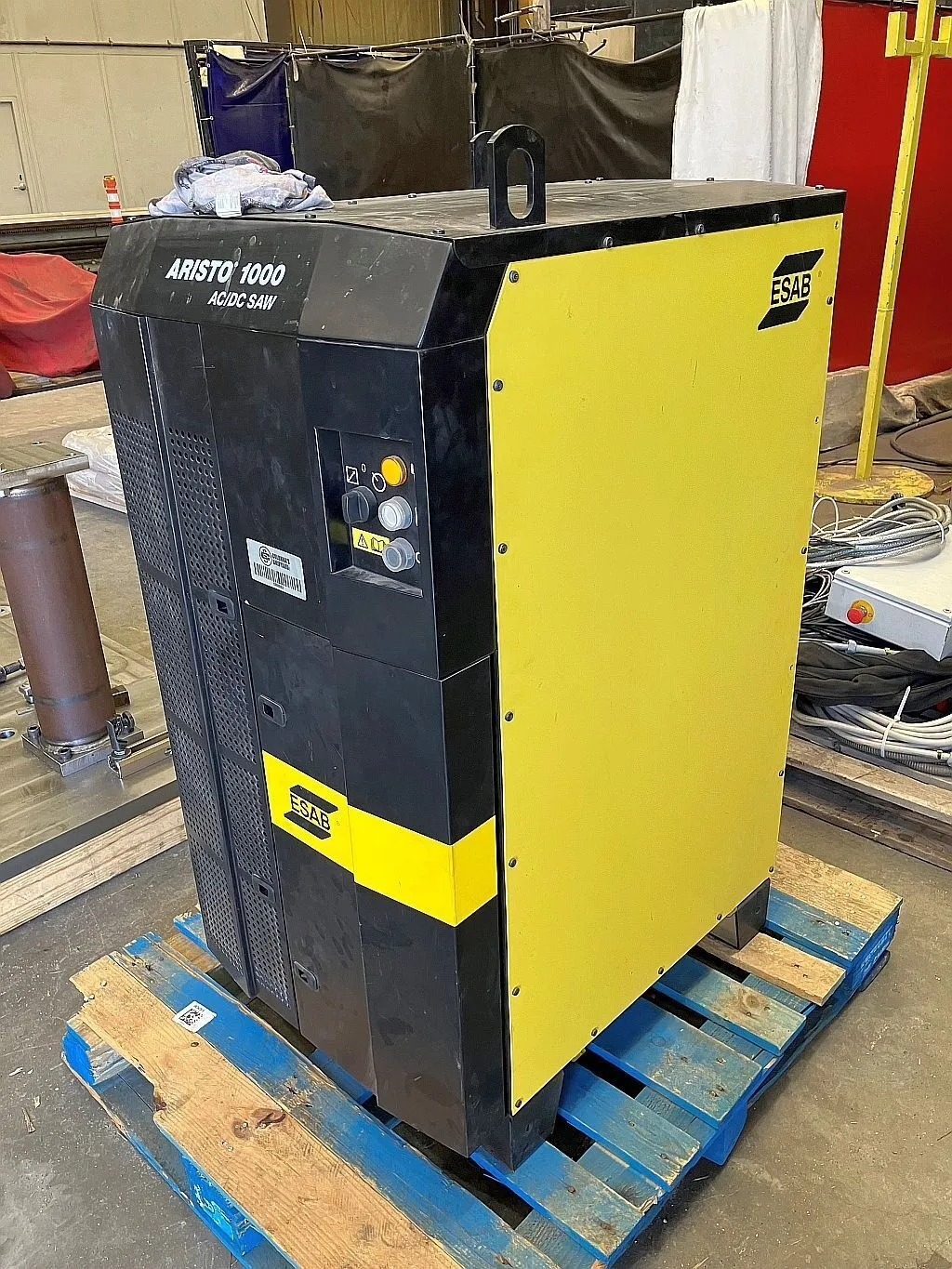

USED ESAB Aristo 1000 AC/DC Saw

Overview
Manufacturer:
ESAB
Stock #:
12241
Description

ESAB Aristo 1000 AC/DC Saw available, used welder with robust specs: max 1000 A output, 100% duty cycle, 380–575 V input. Compact and efficient at 52" x 24" x 34" and 727 lbs, ideal for demanding applications.

Specifications
Dimensions52" x 24" x 34"52" x 24" x 34"
Weight727 LBS727 LBS

Electrical Specifications:
Input Voltage: 380–575 V, 3-phase, 50/60 Hz
Maximum Output Current: 1000 A
Duty Cycle: 100% at 1000 A
Open Circuit Voltage: 126 VDC
Power Factor: 0.93
Efficiency: 88%

Physical Dimensions:
Height: 1320 mm (52 in.)
Width: 610 mm (24 in.)
Length: 865 mm (34 in.)
Weight: 727 LBS
