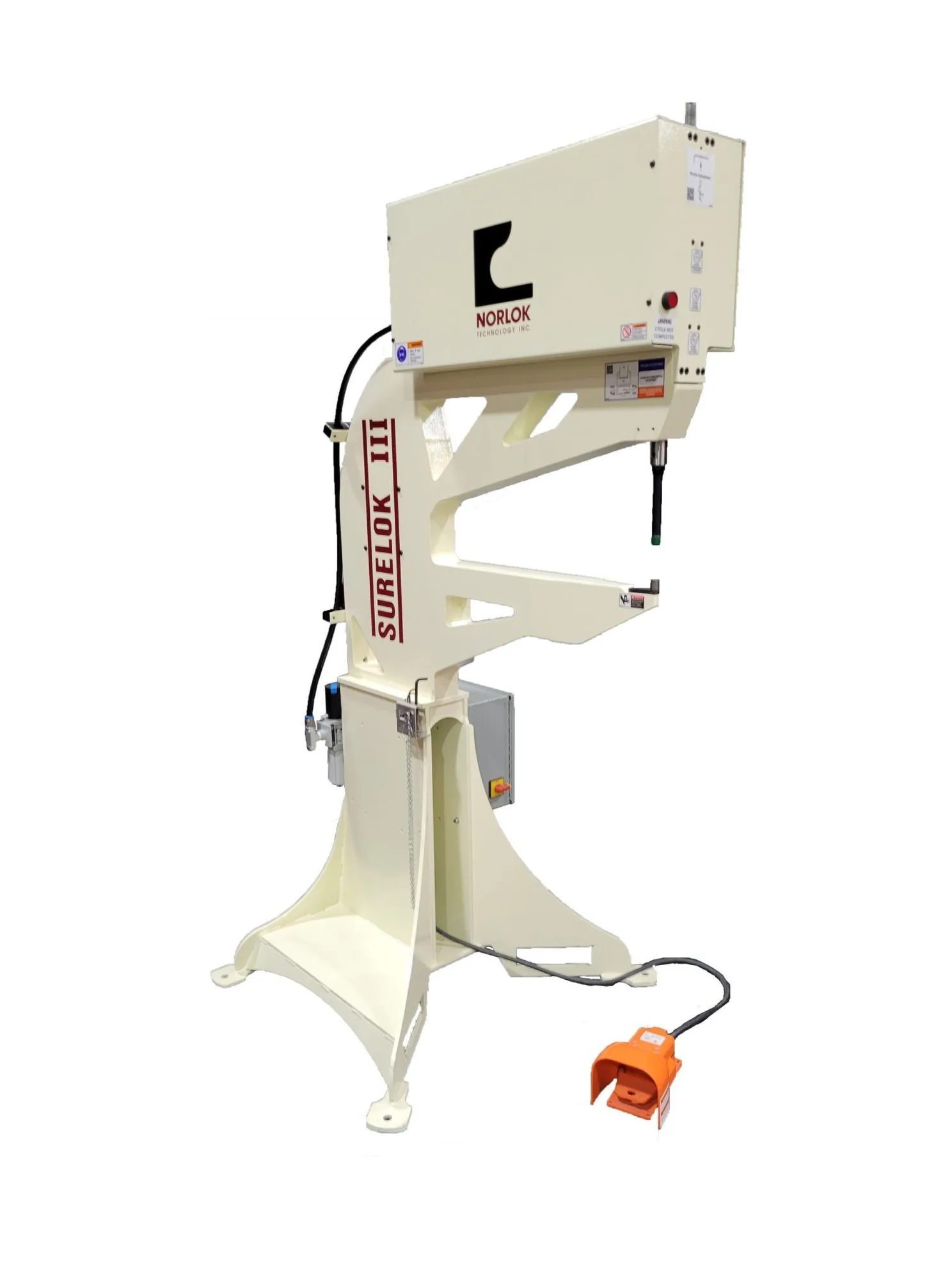

NEW NORLOK SURELOK III
Overview
The SURELOK III is designed for all clinching applications and is faster, smoother, quieter and uses less air than ever before. Our stainless steel ready machine offers a no hassle 2 minute changeover for efficient operation and production.
Specs
Brand: NORLOK
Model: Surelok III
Type: Clinching Machine
Throat - 25"
Stroke: 2-1/2" - Adjust open height to minimize pinch point
Opening: 10"
- Clinches material with 5 tons of force smoothly and efficiently using only 90psi shop air.
- Standard reverse tooling installed
- Laser pointer for accurate clinch location
- APU pneumatic power unit (only uses 1/3 of the air as a Surelok II)
- Regulator, shut-off valve
- Foot pedal operated
- Intelligent safety stroke for increased safety
- Storage drawer; convenient for tools, spare parts, manuals
- One set of round tooling and 2 spare round dies ($1120 value)
- 3 year warranty on manufactured parts
- Stainless steel ready*
Clinching Capability:
Mild Steel, Copper, Aluminum, etc
- from 2 layers of 32 gauge to 2 layers of 14 gauge (production tooling required for thicker material)
*Stainless Steel (requires optional rectangular tooling)
- from 2 layers of 32 gauge to 2 layers of 18 gauge
Dies:
- Dies required depend on the type of material and material thickness
with options for 3 round dies and 5 rectangular dies.
Air/Power Requirements:
- Machine requires 100 psi shop air and 120 vac.
Weight:1300 lbs
Equipped With
Round Punch: Comes with 1 punch, 3 Dies, Punch Stripper, and Die Collar
Close reach lower arm: Clinch in tight areas – also great for pipes
2 piece die holder and insert: Fast to change and easy to clean
“Intelligent” Safety stroke: Reduces pinch point to less than 1/4" (6.4mm) even with 2 1/2" (64mm) stroke
High speed control: 1 touch operation with increased speed & reliability – includes pressure sensing circuit
Air Filter / Regulator / Shutoff: Nothing to add – just plug your air line into the shut off valve
Extended Warranty: Standard warranty is 3 years (punches and dies excluded)
Stainless steel ready with simple punch and die changeover
Tooling adapters designed for sheet metal work that needs a 5 ton press.
Convenient adjustment for accuracy and safety
Self Piercing Rivet kit available for any SURELOK III to join aluminum composite materials, TPO and PVC coatings. No pre drilled holes required.
OPTIONS:
- Rectangle kit for fastening stainless steel - (+ $670)
TERMS:
FOB FACTORY, Branford, ON Canada - Includes Manufacturer’s 3-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
