NEW 2023 HERKULES HS-3-LT
Overview

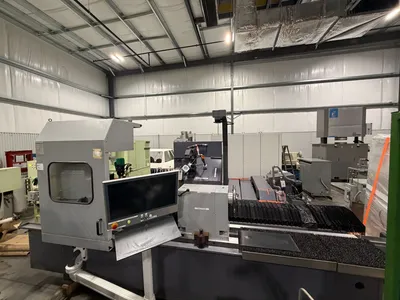

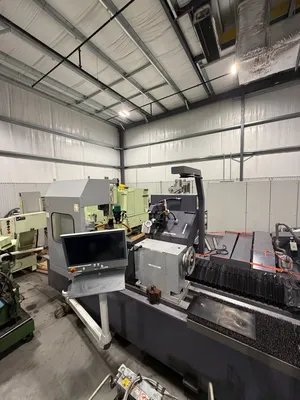

2023 Herkules HS-3-LT CNC cylindrical slitting blade and knife grinder with 19.7 in. x 78.7 in. capacity, HCC-KPM-20 CNC control, and coolant system.
Specs
Grinding capacity: 19.7 in. x 78.7 in.
Maximum weight between centers: 660 lb
Minimum grinding diameter: 4 in.

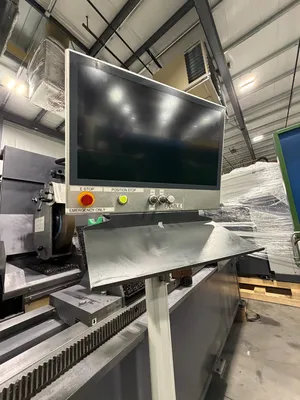

CNC control: HCC-KPM-20

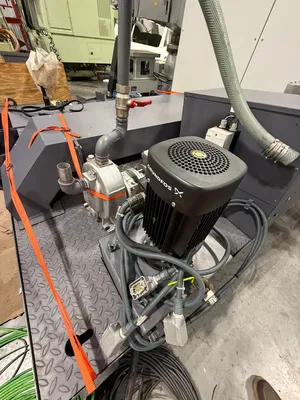

Coolant system
Serial number: 98670
Work Range
Specification Inch / US Metric
Largest machinable diameter 19.685 in 500 mm
Smallest machinable diameter 3.937 in 100 mm
Maximum grinding length 78.740 in 2,000 mm
Axis Travels
Specification Inch / US Metric
Cross slide travel (X-axis) 16.732 in 425 mm
Longitudinal slide travel (Z-axis) 78.740 in 2,000 mm
Workpiece Capacity
Specification US Metric
Max. workpiece weight, between headstock & tailstock centers 661 lb 300 kg

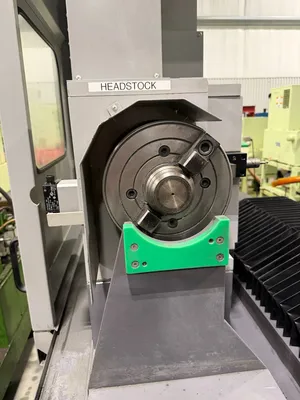

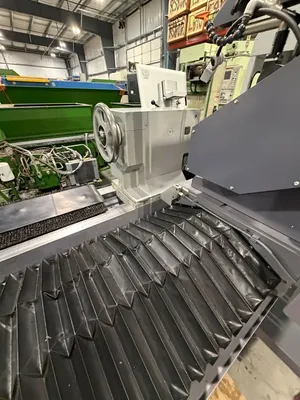

Headstock / Faceplate
Specification US / Imperial Metric
Drive motor output 7.0 hp 5.2 kW
Faceplate speed 0.02–100 rpm 0.02–100 rpm
Jaw Chuck
Specification Inch / US Metric
Clamping diameter 11.811 in 300 mm
Number of jaws 2 2
Grinding Wheel Drive
Specification US / Imperial Metric
Grinding wheel motor output 26.8 hp 20 kW
Max. grinding spindle speed 1,915 rpm 1,915 rpm
Max. cutting speed 7,874 ft/min 40 m/s

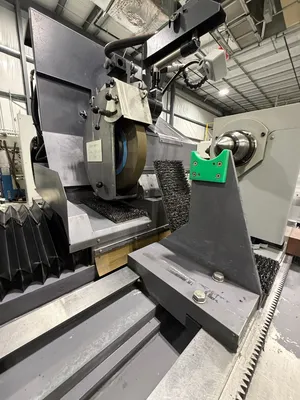

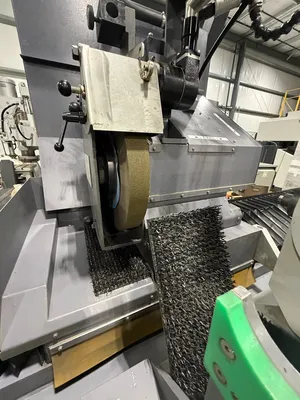

Grinding Wheel
Specification Inch Metric
Bore 5.000 in 127 mm
Maximum diameter 17.717 in 450 mm
Width 1.969 in 50 mm
Grinding Wheel Infeed — X-Axis
Specification Inch / US Metric
Infeed range 0.000039–3.937 in 0.001–100 mm
Continuous infeed speed 0.0004–0.197 in/min 0.01–5 mm/min
Rapid traverse 3.94–78.74 in/min 100–2,000 mm/min
Creep speed 0.197–3.937 in/min 5–100 mm/min
Longitudinal Slide — Z-Axis
Specification Inch / US Metric
Oscillation speed 0.394–118.11 in/min 10–3,000 mm/min
Rapid traverse 3.94–118.11 in/min 100–3,000 mm/min
Creep speed 0.197–3.937 in/min 5–100 mm/min

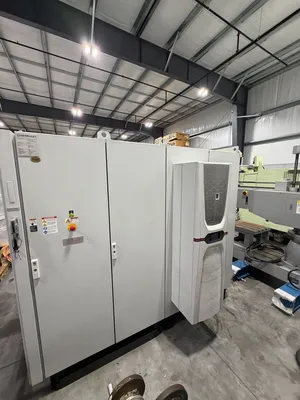

Machine Site Requirements — Electrical
Specification US / Imperial Metric / Original
Total connected load, approx. 66 kVA 66 kVA
Amperage 80 A 80 A
Voltage 480 V 480 V
Frequency 60 Hz 60 Hz
Workpiece Measurement Device
Specification Details
Manufacturer Renishaw
Type LP2
Measuring method Triggering touch probe
Dimensions
Machine- 182"x102"x95"
Cabinet- 105"x46"x95"
Crate- 42"x32"x34"
Misc.- 102"x92"x58"
