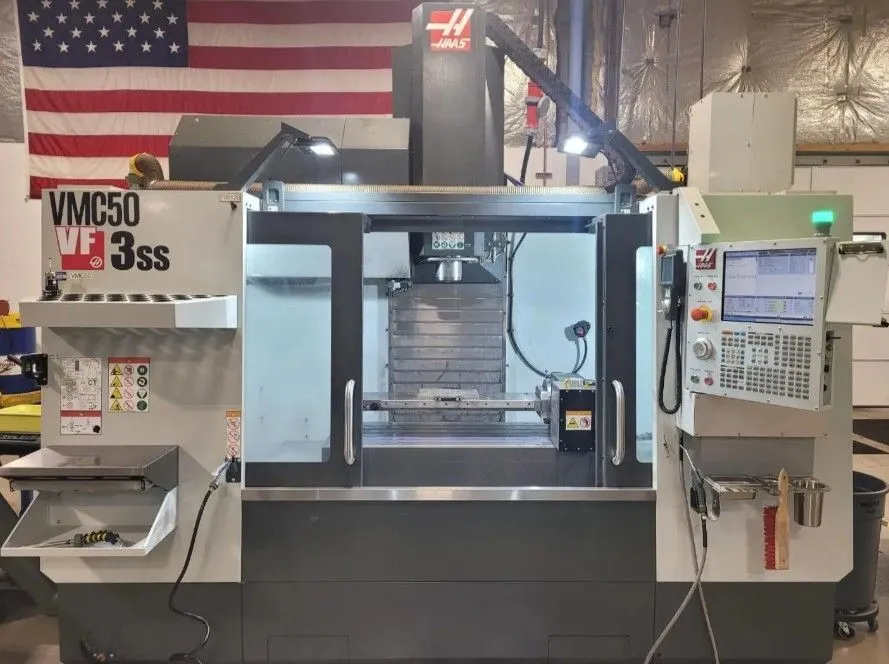

USED 2024 HAAS VF-3SS

General Specifications:
Table Size: 48" x 18"
Table Load: 1,750 lbs
X-Axis Travel: 40"
Y-Axis Travel: 20w"
Z-Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Torque: 90 ft-lbf @ 2,000 RPM
Spindle Taper: CT or BT 40, HSK-A63
Cutting Feedrate: 833 IPM
Rapid Feedrate (All Axes): 1,400 IPM
Thrust (All Axes): 3,085 lbf
Tool Changer: Side Mount
Tool Changer Capacity: 30+1
Tool Diameter (Full / Large, Adjacent Empty): 2.5" / 5"
Tool Length: 13"
Tool Weight: 12 lb

Machine Dimensions: 152” x 100” x 120”
Swarf Management System Dimensions: 50” x 36” x 60”
Machine Weight: 13,000 lbs
