USED 2020 SIDEL PVLM35
Overview

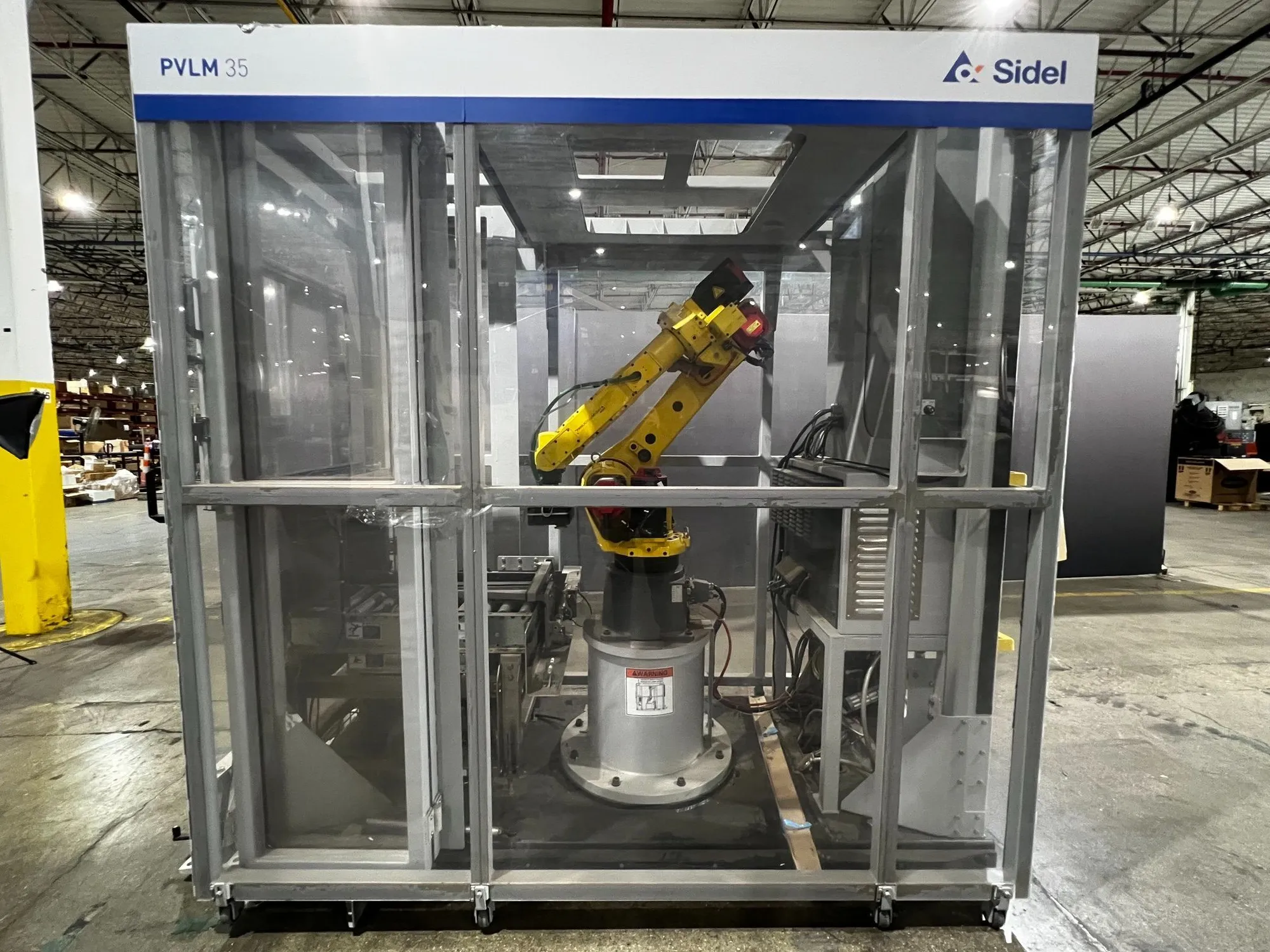

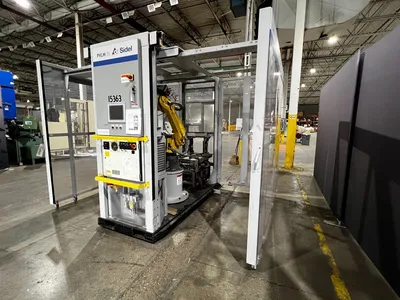

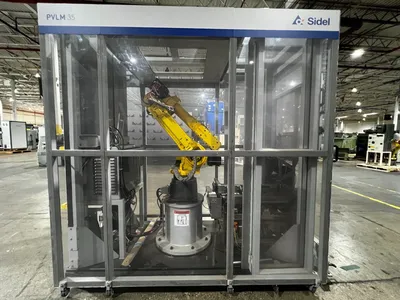

This listing is for a USED Sidel PVLM35 robotic case palletizer. The system integrates a FANUC M-20iA/35M robot, FANUC R-30iB Plus controller, FANUC iPendant, Allen-Bradley PanelView Plus 7 operator interface, powered conveyor section, and enclosed safety cell. The machine automates end-of-line product handling and palletizing operations within packaging, bottling, consumer goods, and distribution environments.
Specs
Manufacturer: Sidel Canada Inc.
Model: PVLM35
Condition: USED
System Specifications
Product Type: Robotic Case Palletizer
Machine Configuration: Enclosed Robotic Palletizing Cell

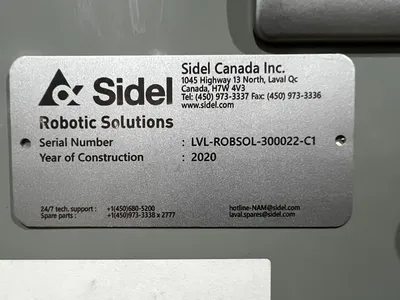

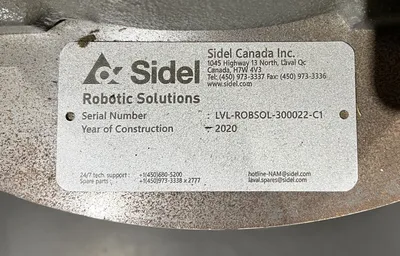

System Serial Number: LVL-ROBSOL-300022-C1
Year of Construction: 2020

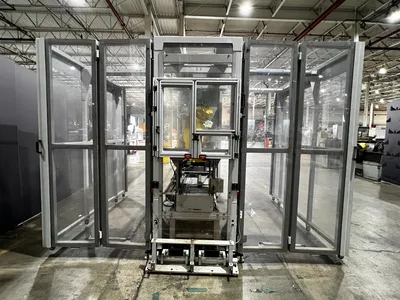

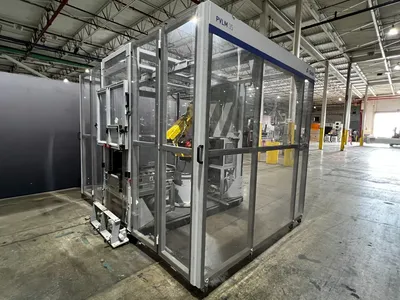

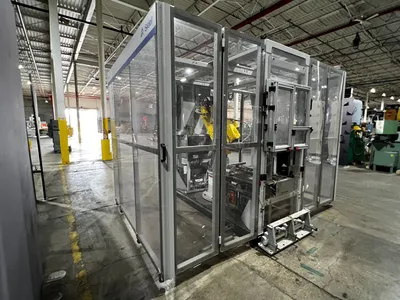

Safety Enclosure: Full Perimeter Guarding
Safety Interlocked Access Doors: Present
Operator Interface: Integrated

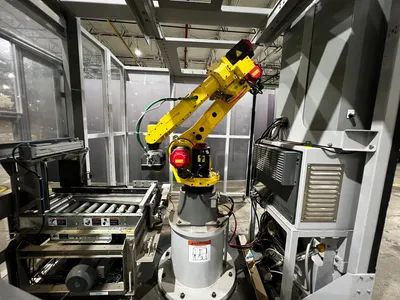

Robot Specifications

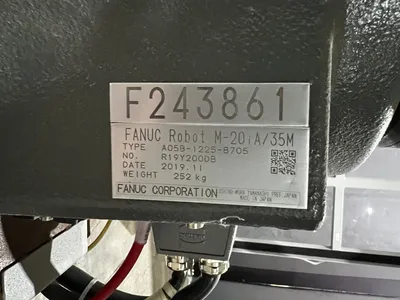

Robot Manufacturer: FANUC
Robot Model: M-20iA/35M
Robot Type Number: A05B-1225-B705
Robot Serial Number: R19Y200DB
Robot Configuration: 6-Axis
Payload Capacity: 35 kg
Robot Weight: 252 kg
Robot Date: 2019.11
Country of Manufacture: Japan

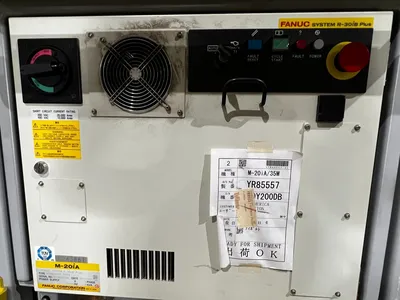

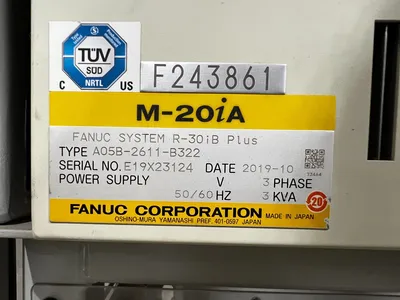

Controller Specifications
Controller Manufacturer: FANUC
Controller Series: R-30iB Plus
Controller Type: A05B-2611-B322
Controller Serial Number: E19X23124
Power Requirement: 3 Phase
Frequency: 50/60 Hz
Controller Capacity: 3 kVA
Controller Date: 2019.10
Teach Pendant Specifications
Teach Pendant: Included
Manufacturer: FANUC
Type: iPendant
Part Number: A05B-2256-C103#EMH
Pendant Number: P016609
Pendant Date: 2019.09

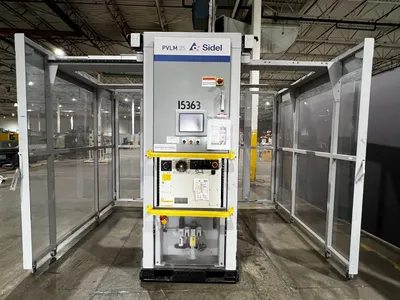

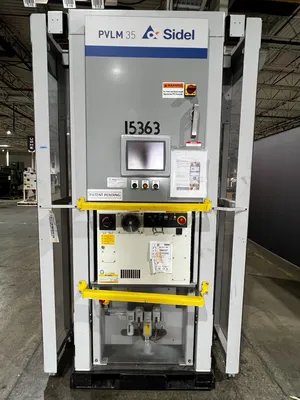

HMI Specifications
Manufacturer: Allen-Bradley
Product Family: PanelView Plus 7
Part Number: 2711P-T10C22D9P
Supply Voltage: 24 VDC
Power Consumption: 50 W
Industrial Network & I/O
Managed Ethernet Switch: Allen-Bradley Stratix 8000
IO-Link Master: IFM AL1122
Industrial Protocol: EtherNet/IP
Pneumatic Control Components
Festo CPX Valve Terminal: Present
Festo Solenoid Valve Manifold: Present
Pneumatic Distribution System: Present
Festo Vacuum Generator Identified: VABP-S-26-V1G-G18-2M-R3

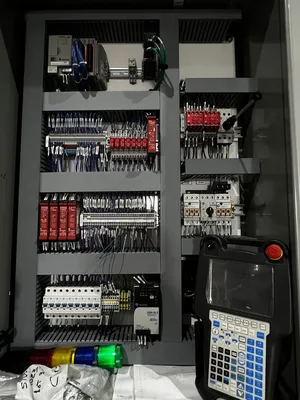

Electrical & Safety Components
Power Supply: Allen-Bradley 1606-XLS
Safety Relays: Allen-Bradley Safety Relays Present
Stack Light: Present
Material Handling Components

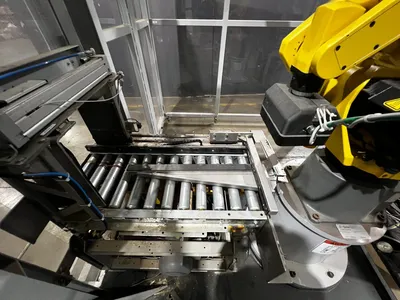

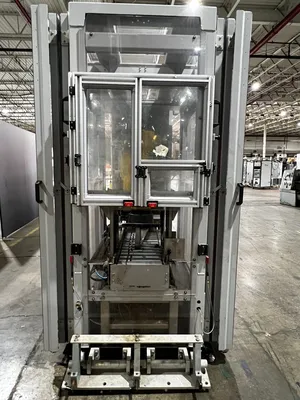

Powered Roller Conveyor: Present

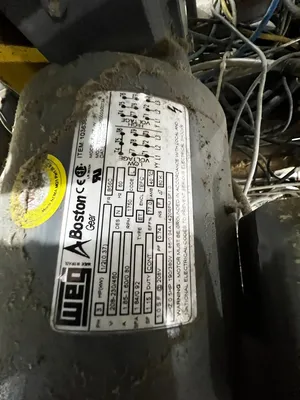

Conveyor Gearmotor Manufacturer: WEG
Conveyor Gearmotor Specifications
Motor Power: 0.37 kW (1/2 HP)
Voltage: 208-230/460 VAC
Phase: 3 Phase
Frequency: 60 Hz
RPM: 1750
