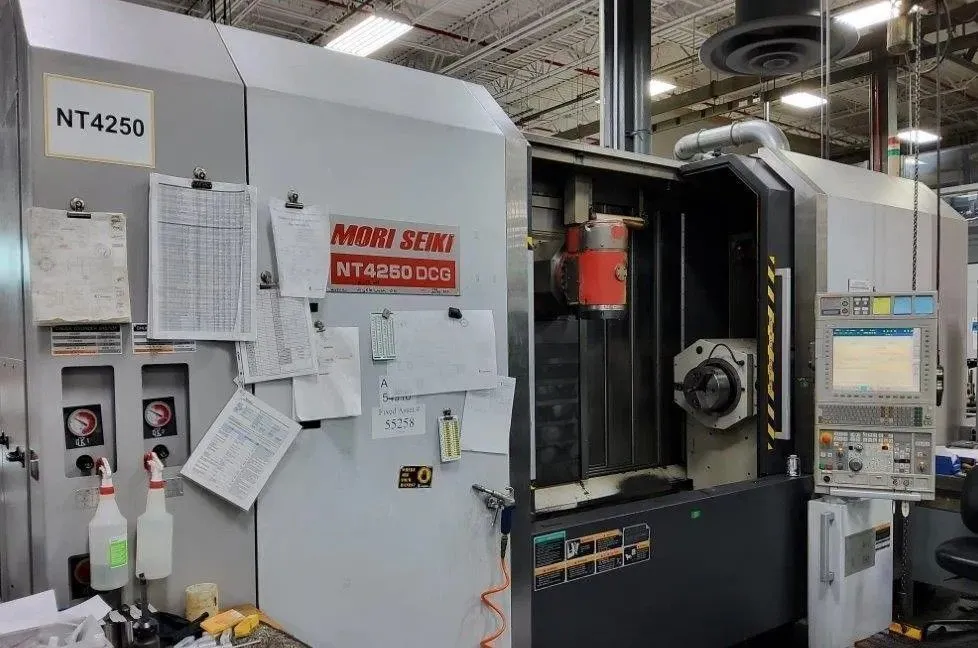

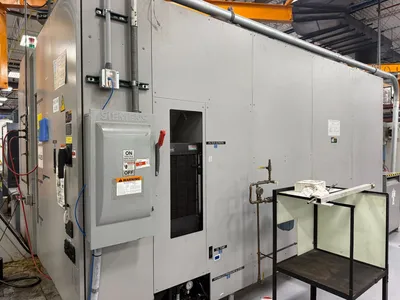

USED 2009 MORI SEIKI NT4250 DCG/1500SZ
Overview
This machine is equipped with a Mitsubishi MSX-711IV CNC control and features a 12,000 rpm KM63 milling spindle, Y axis, sub spindle, and lower turret. Additional features include high-pressure coolant through spindle, a 1-degree B-axis head, and Renishaw probing. The machine also comes with more than 200 tool holders.
Location: Novi, MI
Specs
CNC Control: Yes

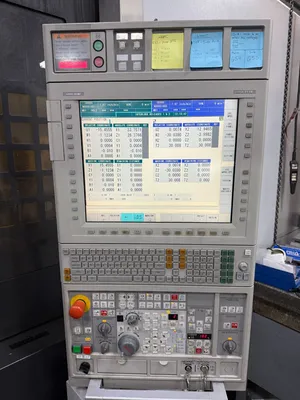

Control Type: Mitsubishi MSX-711IV
Axis:9
Swing: 28.7"
Turning Diameter: 25.9"
Turning Diameter Lower Turret: 13.7"
Center Distance: 61.4"
Bar Capacity: 3.1"
X Axis Travel: 29.5"
X2 Axis Travel: 7.7"
Y Axis Travel: 8.3"
Z Axis Travel: 64.9"
Z2 Axis Travel: 60"
B Axis Indexing: +/- 120°, 1-Degree
C1/C2 Axis Index: 0.0001°
Spindle Nose: A2-8
Spindle Speed: 4,000 rpm
Main Motor: 30 HP
Tailstock: No
Y Axis: Yes
Live Tooling: Yes

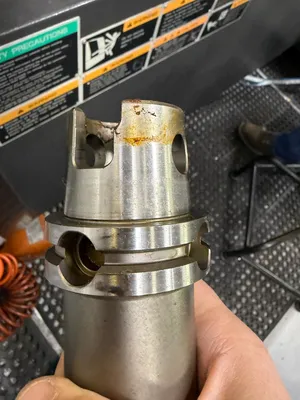

Milling Spindle Taper: KM63

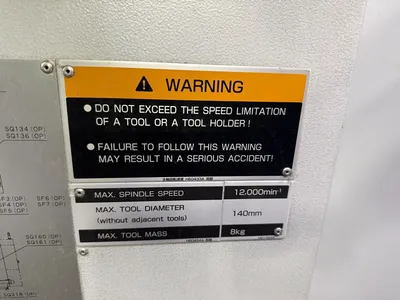

Live Tooling Speed: 12,000 rpm - Milling Spindle
Live Tooling Motor: 25 HP
Sub Spindle: Yes
Sub Spindle Bar Capacity: 3.1"
Sub Spindle Nose: A2-8
Sub Spindle Speed: 4,000 rpm
Sub Spindle Motor (HP): 30 HP
Turret Capacity: 12 Stations Lower Turret
ATC Capacity: 40 Stations
Equipped With
Mitsubishi MSX-711IV Control
- MAPPS Conversational Programing
- Chip Conveyor
- Coolant Tank & Pump

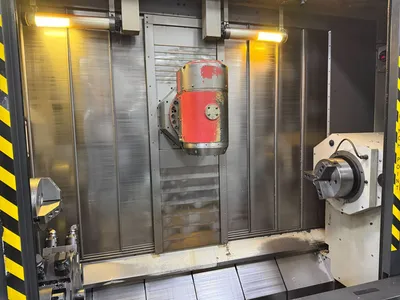

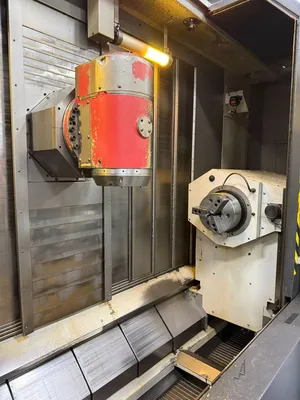

- Milling Spindle

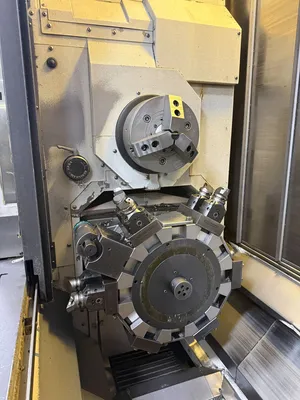

- Lower Turret
- Sub Spindle
- Y Axis

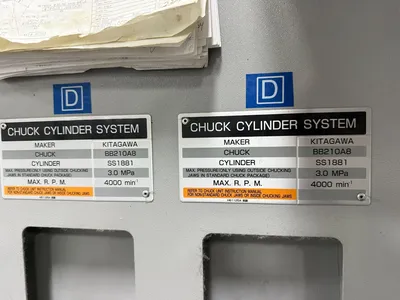

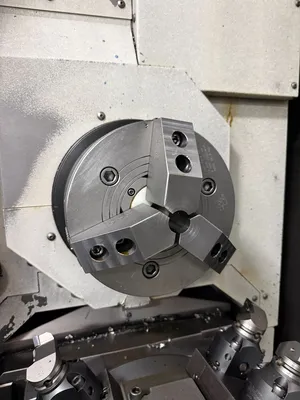

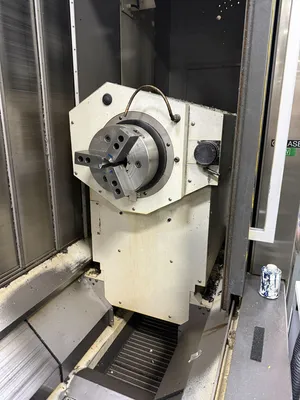

- 10" Chuck on Main Spindle
- 10" Chuck on Sub Spindle
- Renishaw Probing
- Tool Presetter
- Coolant Thru Spindle - High Pressure

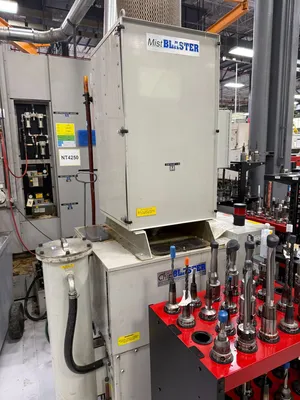

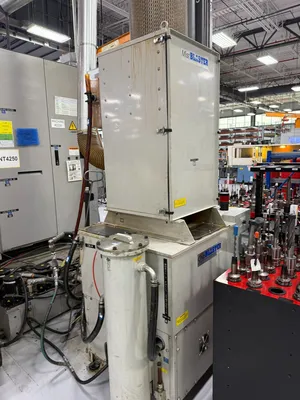

- Chip Blaster Unit

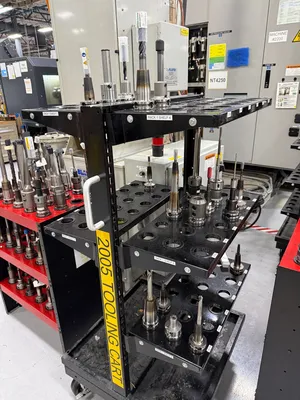

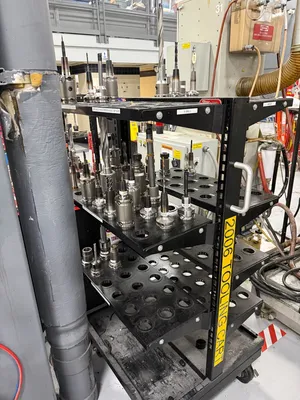

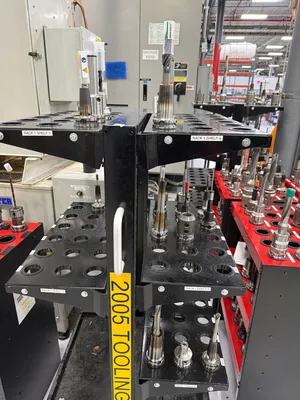

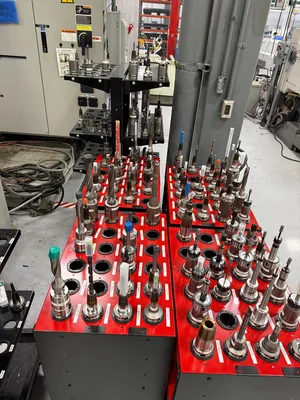

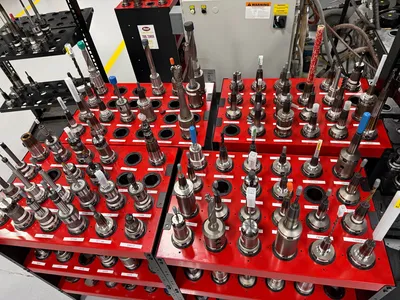

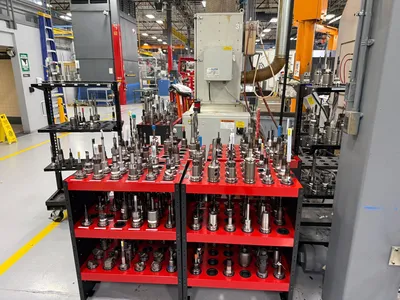

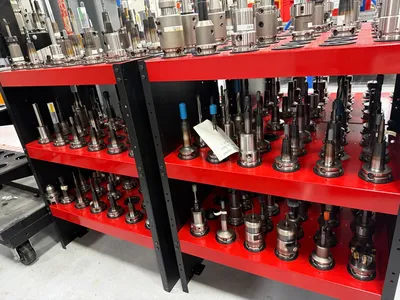

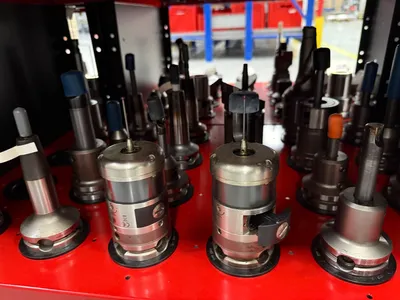

-Comes with 200+ Tool Holders
****COMES WITH ALL THE PICTURED TOOL HOLDERS-NO COSUMABLES****
