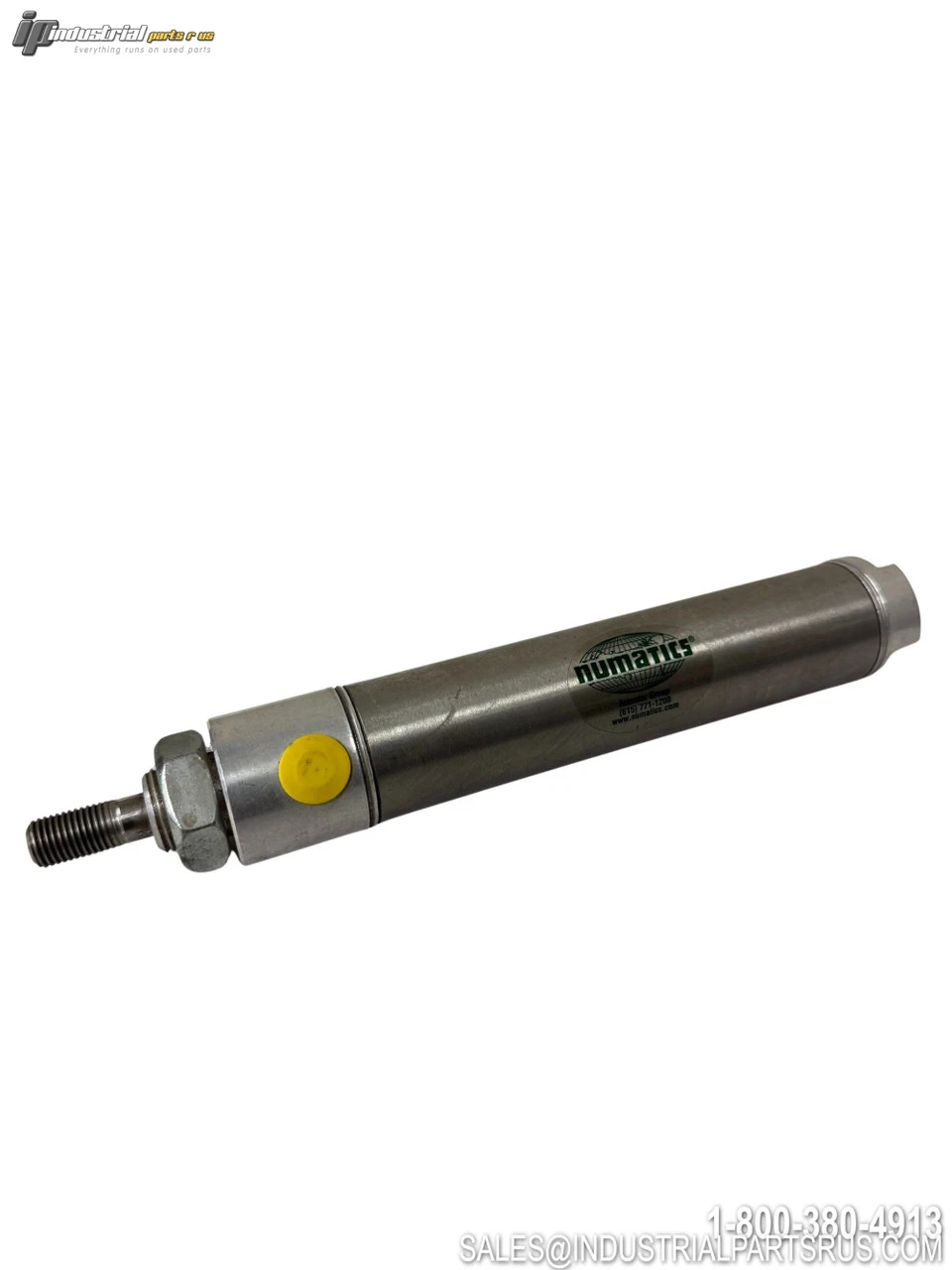

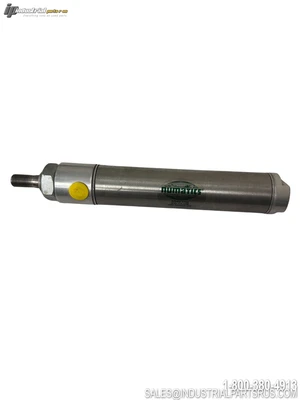

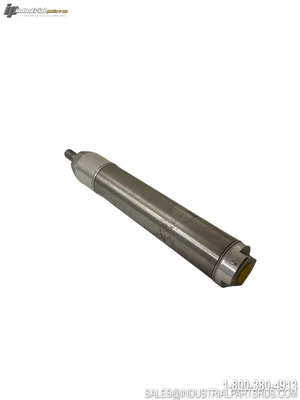

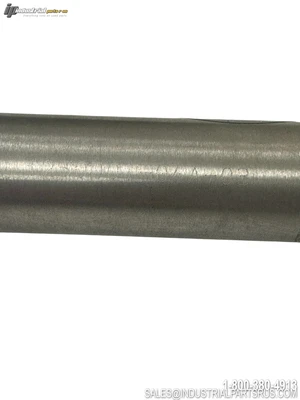

USED NUMATICS 1250D01-04A-03

The Numatics 1250D01-04A-03 is a double-acting, single-rod, non-repairable round line pneumatic cylinder from the Numatics M Series. It features a 1-1/4" bore with a 4" stroke length, nose mounting configuration, built-in magnetic piston with magnetic band for sensor detection, and a stainless-steel body construction rated for up to 250 PSI. The M Series is a pre-lubed, light-duty air cylinder line designed for tight design budgets while delivering reliable, high-performance operation.
Specification
Value
Brand
Numatics (ASCO Numatics)
Model / Part Number
1250D01-04A-03
Product Series
M Series (Non-Repairable Round Line)
Cylinder Type
Double-Acting, Single-Rod
Bore Diameter
1-1/4" (1.25")
Stroke Length
4"
Mounting Style
Nose Mounting
Maximum Operating Pressure
250 PSI
Port Size / Type
1/8" NPTF (x2)
Piston Rod Thread
7/16-20 UNF-2A (Male)
Rod Diameter
7/16"
Actuation Force (Extend @ 100 PSI)
123 lbf
Actuation Force (Retract @ 100 PSI)
108 lbf
Magnetic Piston
Yes – Built-in Magnet with Magnetic Band
Cylinder Body Material
304 Stainless Steel
Piston Rod Material
303 Stainless Steel
Piston Material
Aluminum
Head / Cap Material
Aluminum
Seal / O-Ring Material
Buna-N (Low Friction)
Operating Temperature Range
-10°F to +165°F
Lubrication
Pre-Lubed (Non-Lube Added Service)
Repairable
No (Non-Repairable)
Alternate Part Number
1250D0104A03
We warranty all items for 30 days from date of purchase.
