USED 1995 EMCO EM15D

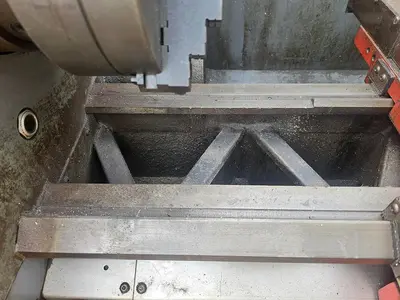

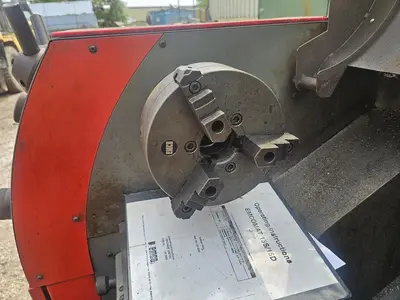

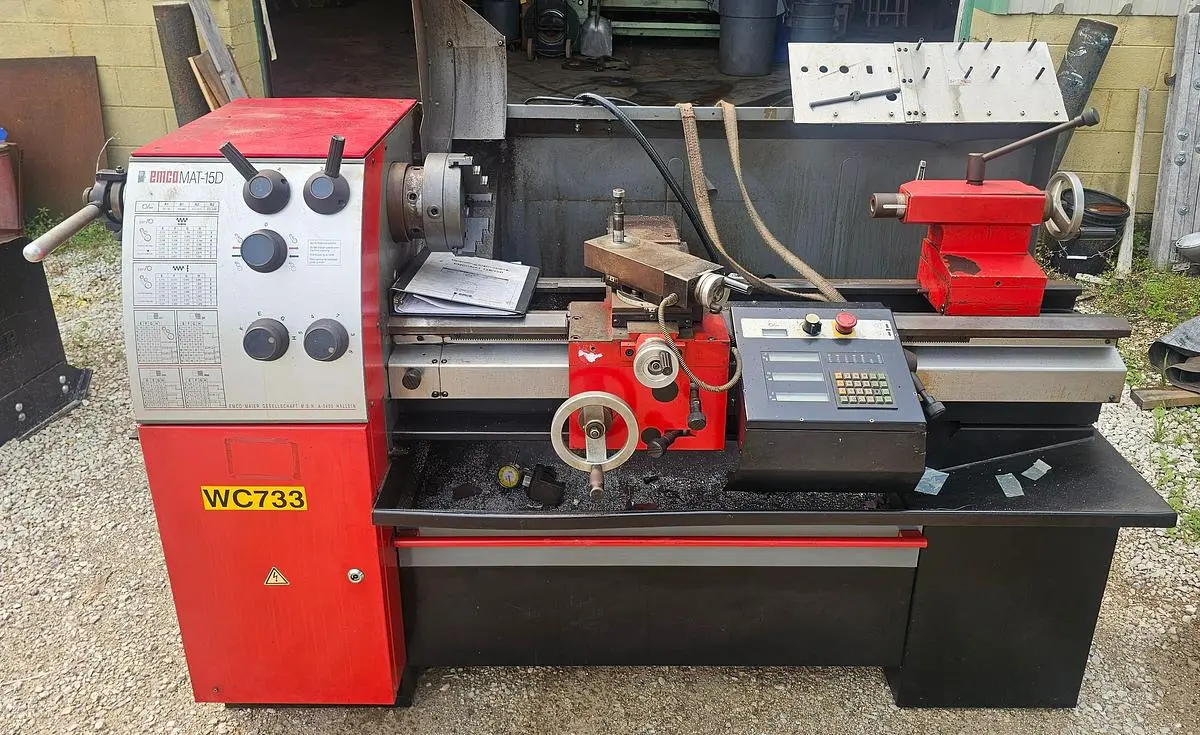

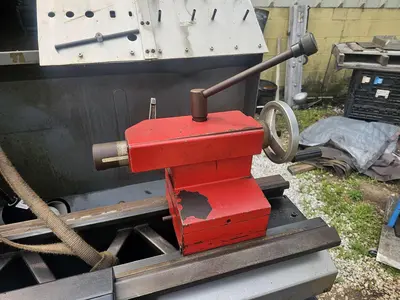

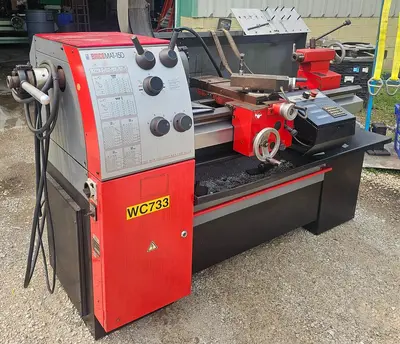

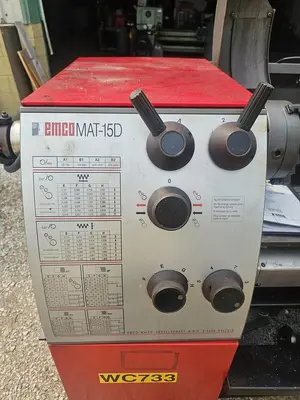

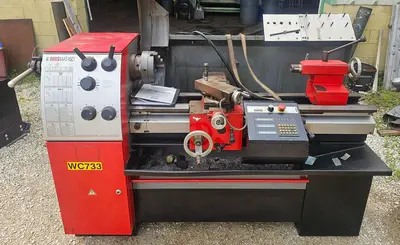

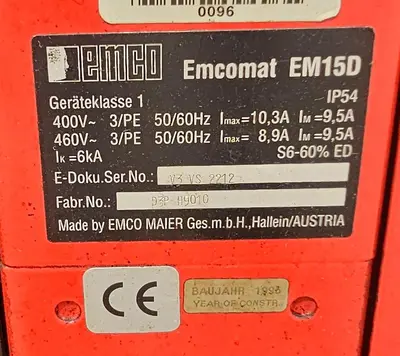

EMCO Emcomat EM15D Variable Speed Toolroom LatheModel Number: EM15DSerial Number: V3 VS 2212OverviewUp for sale is an Austrian-built EMCO Emcomat EM15D Precision Variable Speed Toolroom Lathe. Designed to meet DIN toolmaker precision standards, EMCO lathes are globally recognized in prototype development, precision job shops, tool & die making, and aerospace manufacturing. Powered by an AC inverter variable speed drive package, this unit provides infinitely variable spindle speed control across four geared ranges for constant cutting speed and optimal surface finish. Technical SpecificationsSwing Over Bed: 15.8" (400 mm) Swing Over Cross Slide: 9.8" (250 mm) Distance Between Centers: 39.4" (1,000 mm) Spindle Bore: 1.9" (50 mm) Spindle Nose: D1-5 Camlock (DIN 55029) Spindle Speed Range: 40 – 3,000 RPM (Infinitely Variable across 4 Geared Ranges) Tailstock Taper: #3 Morse Taper (MT3) Tailstock Quill Diameter: 1.9" (50 mm) Tailstock Quill Travel: 4.7" (120 mm) Bedway Width: 10.2" (260 mm), Induction-Hardened & Precision-Ground English Threading Range: 4 – 56 TPI Metric Threading Range: 0.4 – 7.0 mm PitchLongitudinal Feed Range: 0.0045 mm – 0.787 mm/rev Cross Feed Range: Half of Longitudinal Drive System: Electronic AC Inverter Variable Speed Drive Approximate Dimensions (L x W x H): 75" x 39" x 50" Approximate Machine Weight: 2,000 lbs (907 kg) Key FeaturesEuropean toolmaker precision build engineered for tight-tolerance turning and smooth surface finishes.AC inverter variable speed drive allowing instant RPM adjustments and constant surface cutting speed capability. Universal quick-change gearbox for convenient English and Metric thread cutting without changing pick gears. Heavy-duty, diagonally ribbed cast iron bedways with induction hardening for maximum vibration damping and long-term wear resistance. Integrated electromechanical spindle brake for rapid stopping and efficient operation.
