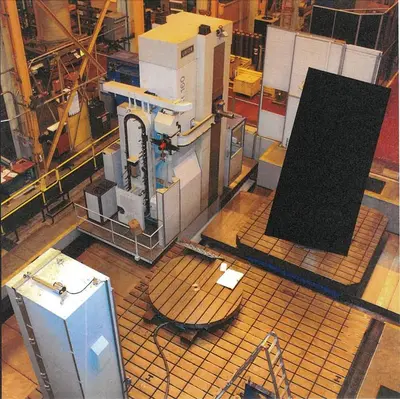

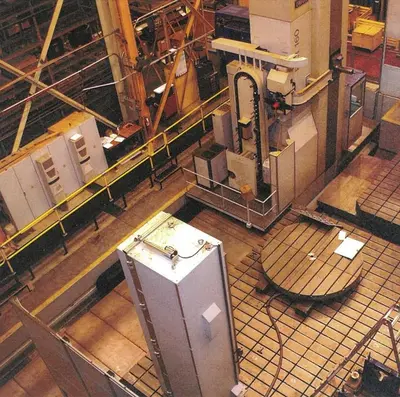

USED 2008 UNION PCR 160 PLUS

Siemens 840D CNC Control

Milling Units:
Speed - 2,800 rpm
Power rating from 286 rpm - 30 kW
Spindle Taper - ISO 50 (ANSI B5.50)
Torque at 286 rpm - 1,000 Nm
Swivel Range - 1 x 360°

Speed - 3,000 rpm
Power rating at 441 rpm - 37 kW
Torque at 441 rpm - 800 Nm

Head Diameter 630 mm
Rapid Traverse 200 mm
Feed Power - 5,000 N
Speed - 250 rpm
Torque 2,868 Nm

Rotary Table:
Dimensions 4,000 x 4,000 mm
Center bore 100 mm
V-Axis Travel 2,500 mm
B-Axis Rotation 360°
Table Load 90,000 kg

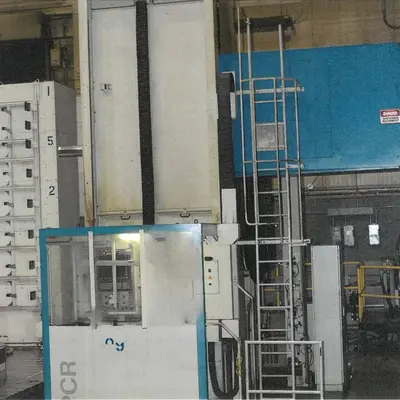

Operator Cabin
Chip Conveyor Along the 11 Meters of X
High Pressure Coolant
60 Position Automatic Tool Changer
5 Position pickup station for head attachments
Floor Plates, 3 Parts - 7,000 x 6,000 mm x 300 mm
