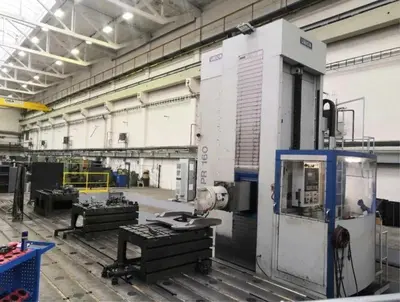

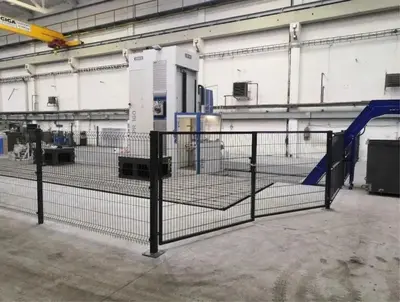

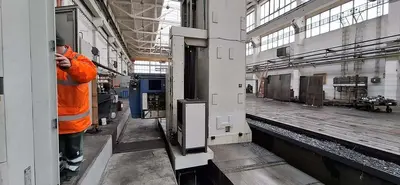

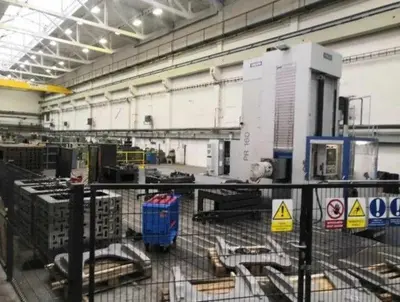

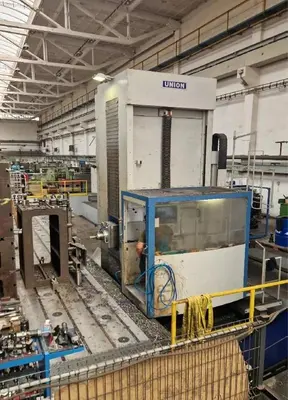

USED 2008 UNION PCR 160
Overview

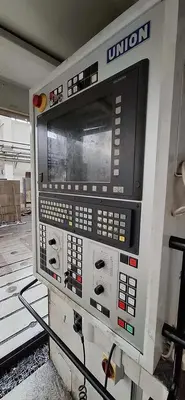

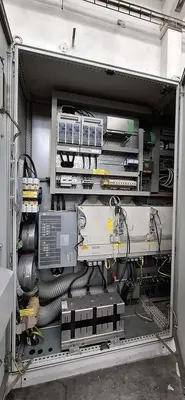

Siemens Sinumerik 840D CNC Control

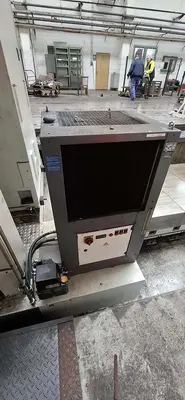

Cooling by rinsing (6 bar) and high-pressure cooling through the spindle center (max. 70 bar), Right-angle milling head KDF4/90 see below

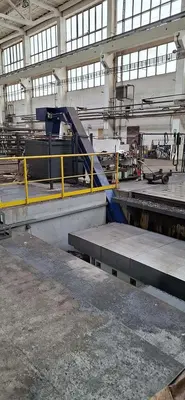

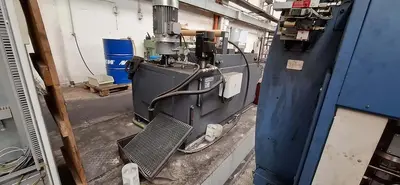

Swarf conveyor X=11 m
Workpiece probe

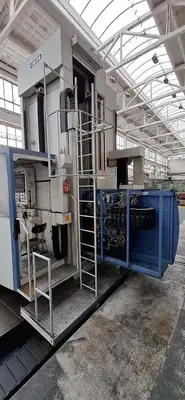

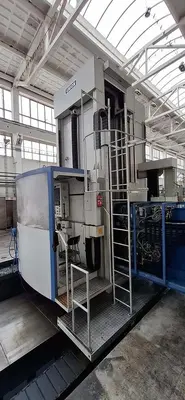

Operator lifting cabin

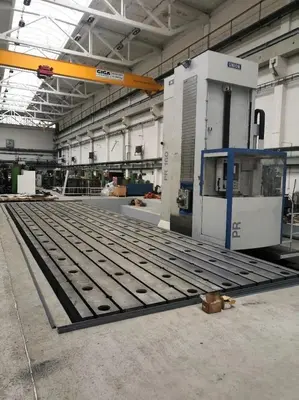

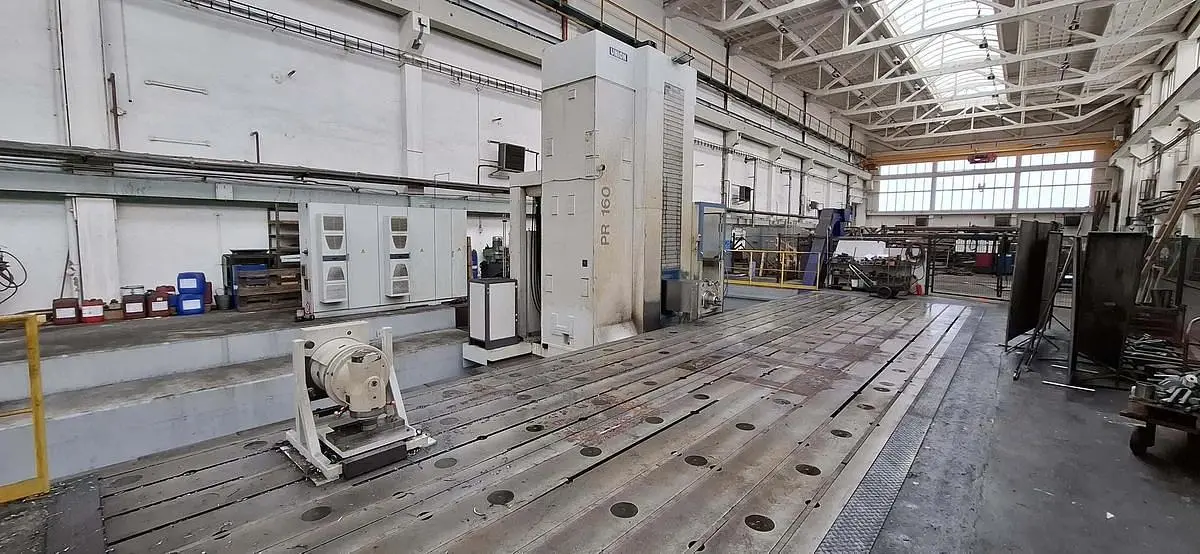

Clamping plates……..total dimensions 13,600 x 3,770 mm, divided into 4 parts

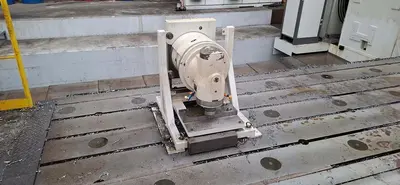

Right-angle milling head KFD4/90:
Automatic head clamping on the quill
Automatic tool clamping
Specs
Manufacturer: Union
Model: PCR 160
Year: 2008
Condition: Used
Stock Number: 5654403
Spindle diameter: 160 mm
Spindle speeds: 2,800 rpm
X axis travel: 11,000 mm
Y axis travel: 3,000 mm
Z axis travel: 1,000 mm
W axis travel: 700 mm
Main motor power: 60 kW
Table dimensions: 2,500 x 3,000 mm
Ram dimensions: 4450 x 550 mm
Working feed X/Y/Z/W: 1 - 6,000 mm/min
Rapid feeds: 15,000 mm/min
Spindle taper: ISO 50
Max torque: 2,868 Nm
