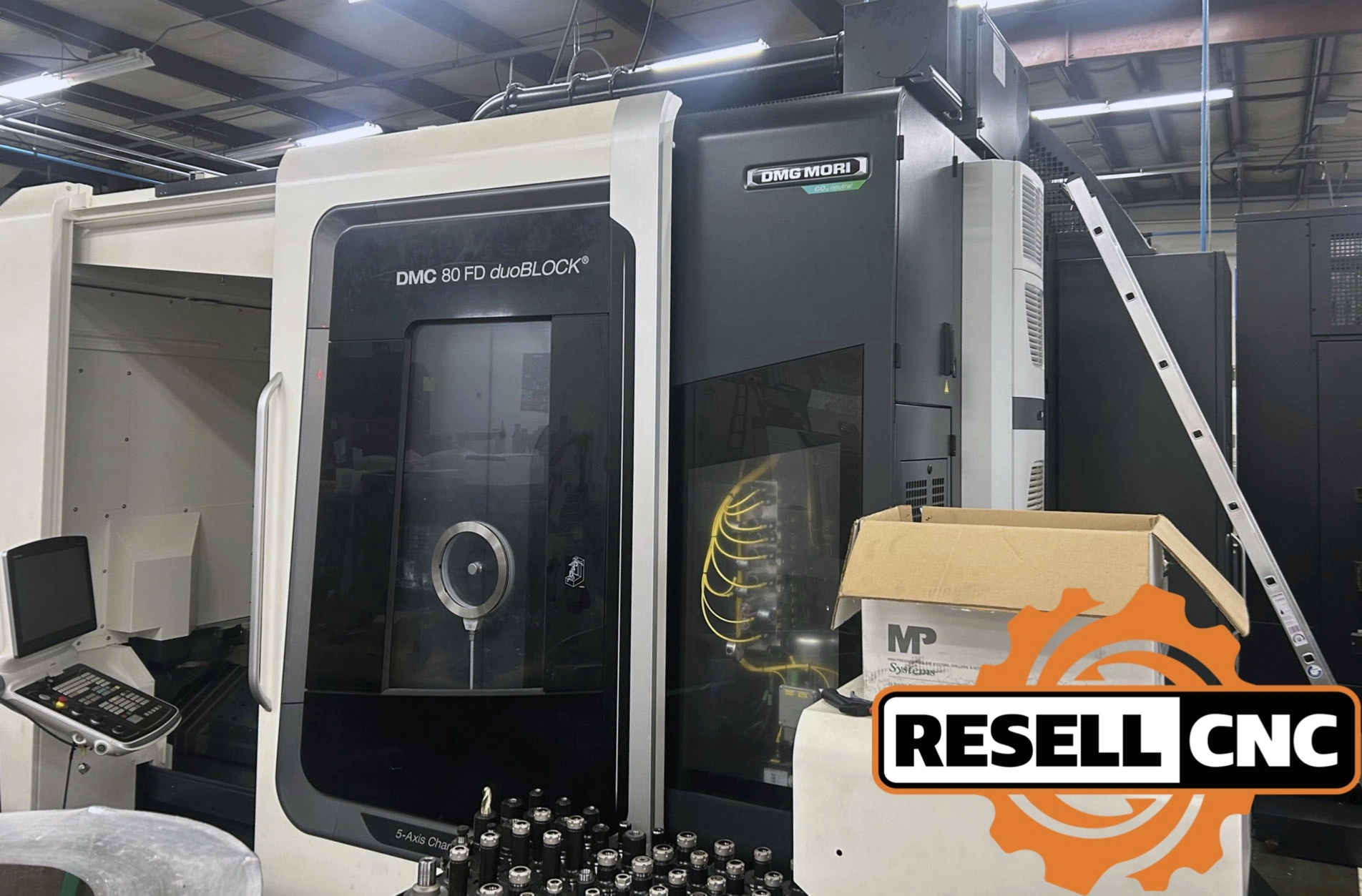

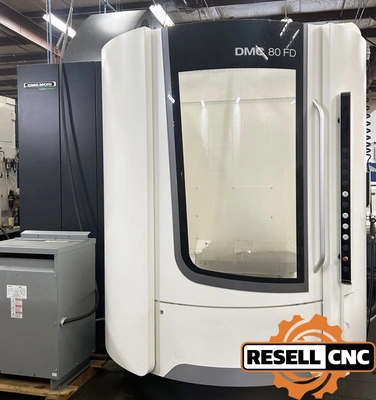

USED 2023 DMG Mori DMC 80 FD DuoBLOCK

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 3D Quickset

Sensor Pkg i4.0

5-Axis Milling & Turning Software

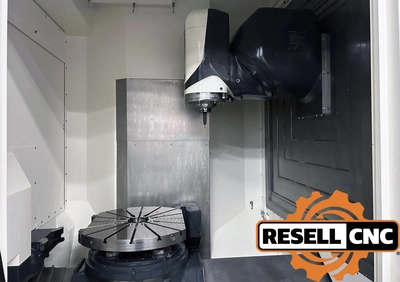

Additional Machine Specs: Universal Milling Head w/ B-Axis

Operation Panel Loading Station

Renishaw Infrared Probe System

ICS 80 Bar Option and HPC

Coolant Tempering

Spray Gun

Hand Wheel

Air Blast

Max Work Piece Diameter 35.4"

Mat Work Piece Height 57.1"

B-Axis Swivel Range: -30 to + 180

C-Axis: 360, .0001

B Axis: true
C Axis: false

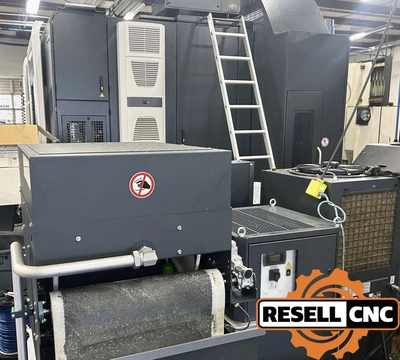

Chip Removal: Chip Conveyor

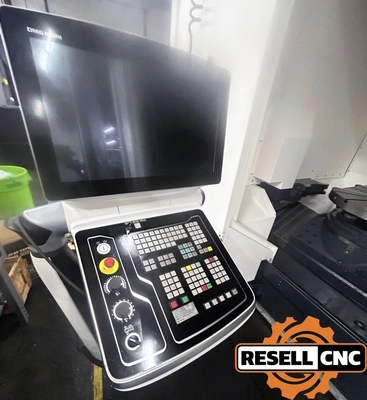

Control Make Model: Celos Siemens 840D CNC Control
Control Options: Early Power Failure Detection
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Workpiece Weight: 3065.0
Number Of Pallets: 2.0
Programmable Tailstock: false
Rapid Traverse: 2362

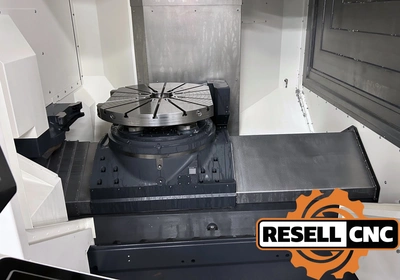

Rotary Make Model: Direct Drive FD Swivel Rotary Table

Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 70
Spindle Speed: 12000.0
Spindle Taper Other: HSK-100A
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 123.0
Twin Turret: false
X Travel: 31.5
Y Axis: false
Y Travel: 41.3
Z Travel: 33.5
