USED 2001 Matsuura H-Plus 300

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Tool Life Management

Background Editing

200-Block Look-Ahead

Additional Machine Specs: Probing Hardware (Needs Installation)

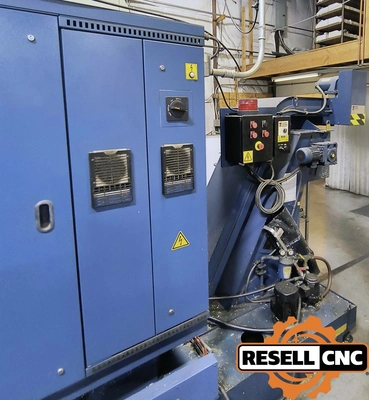

Turbo Systems Chip Conveyor

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Fanuc 16i-M
Control Options: G-Code, Helical Interpolation, High Speed Machining, Rigid Tapping, RS-232, Inch/Metric Conversion, Manual Pulse Generator / Pendant, Macros
Coolant Psi: 300.0
Coolant Type S: Thru-Spindle Coolant
Horizontal Table Pallet Size In MM: 300.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Parts Probe
Max Table Pallet Load: 550.0

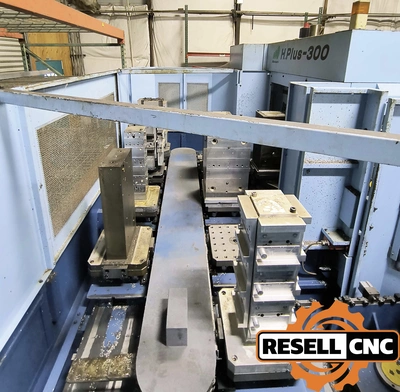

Number Of Pallets: 11.0
Programmable Tailstock: false
Rapid Traverse: 1969
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 24.41
Spindle Motor: 30 HP
Spindle Speed: 15000.0
Spindle Taper Type: BT40
Sub Spindle: false
Table Pallet Indexing: 1 Degree
Tailstock: false
Tool Changer Type: Arm
Tool Magazine Capacity: 150.0
Twin Turret: false
X Travel: 19.68
Y Axis: false
Y Travel: 19.68
Z Travel: 19.68
